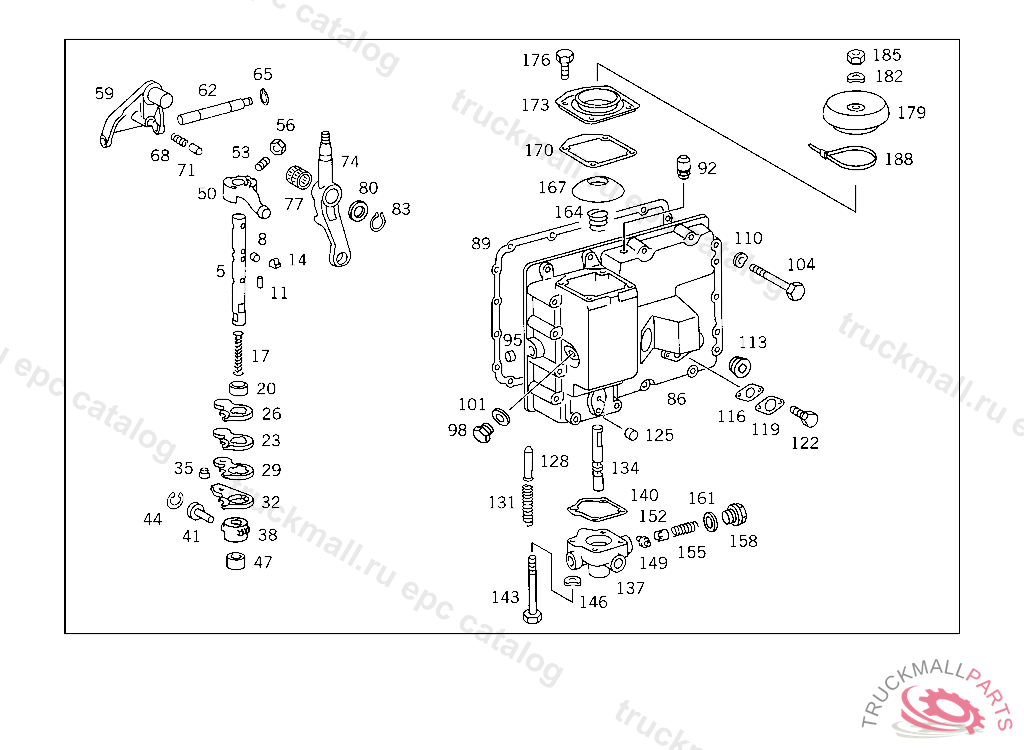

Поз.
Артикул
Описание
5
SHAFT (SHIFTING SHAFT)
8
ROLLER , 350.004,013 UP TO CHASSIS 12 357727,FROM CHASSIS SEE SPARE PARTS LIST 718
8
ROLLER SHIFTING SHAFT
11
CYLINDRICAL ROLLER SHIFTING SHAFT
14
FOLLOWER SHIFTING SHAFT
17
PIN SHIFTING SHAFT,BOTTOM
20
BUSHING SHIFTING ROD,TOP
23
FOLLOWER 1ST AND 2ND SPEED
23
FOLLOWER 1ST AND 2ND SPEED
26
FOLLOWER 3RD AND 4TH SPEED
26
FOLLOWER 3RD AND 4TH SPEED
29
FOLLOWER REVERSE SPEED AND CRAWLER GEAR,130872
29
FOLLOWER REVERSE SPEED
32
FOLLOWER REVERSE SPEED AND CRAWLER GEAR,001876,5 K 90 GP003321,5 S 90 GP
32
FOLLOWER REVERSE SPEED
35
PIN SHIFTING SHAFT
38
BUSHING (DETENT BUSHING)
41
PIN SHIFTING ROD,011930
44
LOCK RING
47
BUSHING SHIFTING DOME,TOP
50
FOLLOWER , Replaced By: A0002683543, +003A0002680167, +001A0002680370
50
FOLLOWER , Replaced By: A0002683643, +003A0002680167, +001A0002680370
50
FOLLOWER SHIFTING ROD, STUD TO BE SECURED BY CAULKING
50
FOLLOWER SHIFTING SHAFT, STUD TO BE SECURED BY CAULKING
53
STUD SHIFTING SHAFT, STUD TO BE SECURED BY CAULKING
53
STUD SHIFTING ROD TO SHIFT LEVER
56
NUT
56
NUT COVER TO FLANGE
59
LEVER SHIFTING SHAFT,BOTTOM
62
PIN SHIFTING SHAFT,10/20879180, 50/60880936
65
LOCK RINGTO 000 553 37 01,000 553 39 01,
68
SPRING SHIFTING SHAFT,TOP,10/20879179, 50/60880935
71
PIN SHIFTING SHAFT,BOTTOM
74
SHIFT LEVER LOWER PART SHIFT LEVER TO BEARING BRACKET
77
NEEDLE BEARING SHIFT LEVER BEARING,10/50 792025, 20/60 766369
80
THRUST WASHER SHIFT LEVER TO BEARING BRACKET,10/20879180, 50/60880936
83
LOCK RING RELEASE SHAFT,BOTTOM
86
COVER SHIFT CASE,003860
86
COVER (SHIFTER COVER)
89
GASKET SHIFT CASE
89
GASKET , Replaced By: A0002686180
92
BREATHER , Replaced By: A3362640089
92
VALVE BREATHER
95
EXPANSION PLUG REAR
98
SCREW PLUG
101
SEAL RING VALVE TO VALVE,K 025179
104
SCREW BRACKET TO REAR AXLE
104
SCREW BRACKET TO BELL HOUSING
104
SCREW REAR EXHAUST PIPE TO MUFFLER
104
SCREW CLUTCH TO FLYWHEEL
110
SPRING WASHER STEERING COLUMN BRACKET TO CAB
113
PLUG , Replaced By: A3529970032
113
SCREW PLUG BELL HOUSING
116
GASKET , Replaced By: A0002685580
116
GASKET LATERAL
119
COVER LATERAL
122
SCREW BRACKET TO TAIL LAMP BRACKET
125
EXPANSION PLUG HOUSING,BOTTOM
125
COVER , Replaced By: A0009971120
128
BUSHING SHIFT CASE,BOTTOM
131
SPRING SHIFT CASE
134
PIN INTERLOCK PIN
137
COVER , Replaced By: A0002685505
137
COVER SHIFT CASE,BOTTOM
140
GASKET , Replaced By: A0002672780
140
GASKET SHIFT CASE,BOTTOM
143
SCREWM 8X40
146
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
146
SPRING WASHER , Replaced By: N000137008212
149
CABLE PULLEY SHIFT CASE,BOTTOM
152
PIN SHIFT CASE,BOTTOM
155
SPRING SHIFT CASE,SIDE
158
SCREW PLUG SHIFT CASE,BOTTOM
161
SEAL RING LINE CONNECTION
164
SPRING SHIFTER COVER,TOP,10/20879180, 50/60880936
167
COVERING SHIFT LEVER
170
GASKET , Replaced By: A0002673780
170
GASKET SHIFTER COVER WITH SHIFTING PARTS
173
COVER , Replaced By: A0002685205
173
COVER SHIFTER COVER WITH SHIFTING PARTS
176
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
176
SCREW , Replaced By: N304017008016
179
CAP , Replaced By: A0002670514, +001A3432640089
179
CAP , Replaced By: A0002671714
179
CAP SHIFTER COVER WITH SHIFTING PARTS
182
SPRING WASHER
182
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
185
NUT STRAP TO SUPPORT,5 149419
188
LOOM TIE LINE MOUNTING
