Поз.
Артикул
Описание

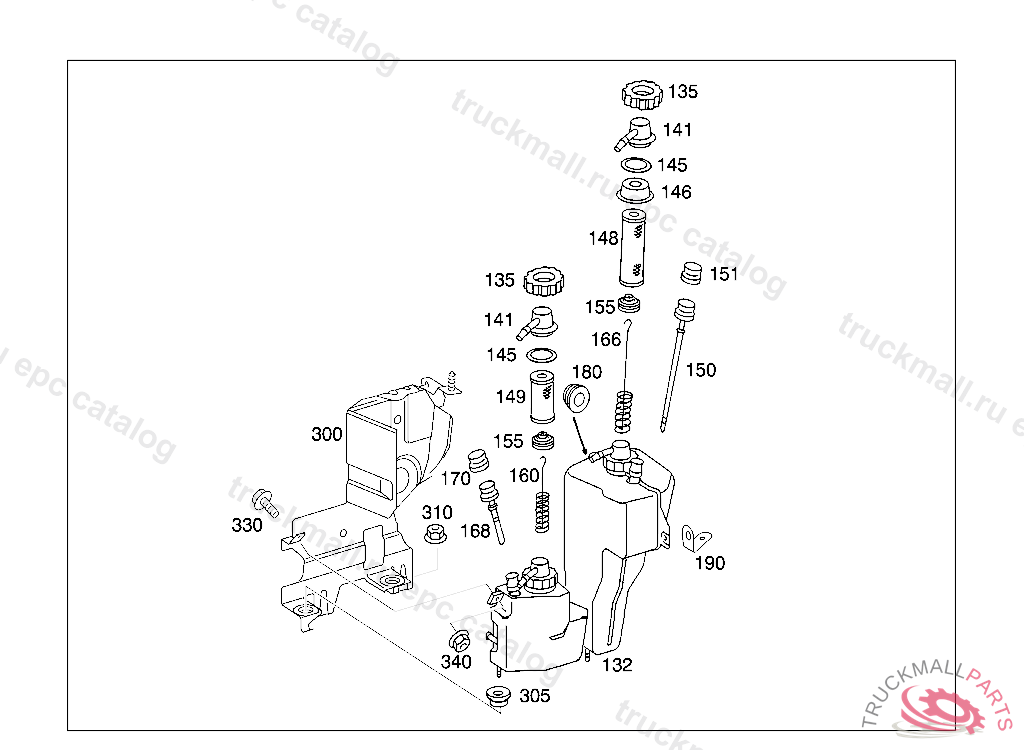

132
DASHPOT OIL RESERVOIR, A 38511620030731
132
DASHPOT (OIL RESERVOIR)
135
NUT
141
COVER SUPPLY TANK
145
SEAL RING
146
GROMMET ABC RESERVOIR
148
OIL FILTER ABC RESERVOIR
148
LONGLIFE OIL FILTER
149
OIL FILTER
150
OIL DIPSTICK ABC RESERVOIR
151
PROTECTIVE CAP
155
SEAL RING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
160
SPRING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
166
SPRING ABC RESERVOIR
168
OIL DIPSTICK POWER STEERING RESERVOIR
170
PROTECTIVE CAP
180
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
300
SCREENING OIL RESERVOIR
305
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
310
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
330
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
340
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
