Mercedes A2203200314 - БАЧОК

S 55 AMG 220.173

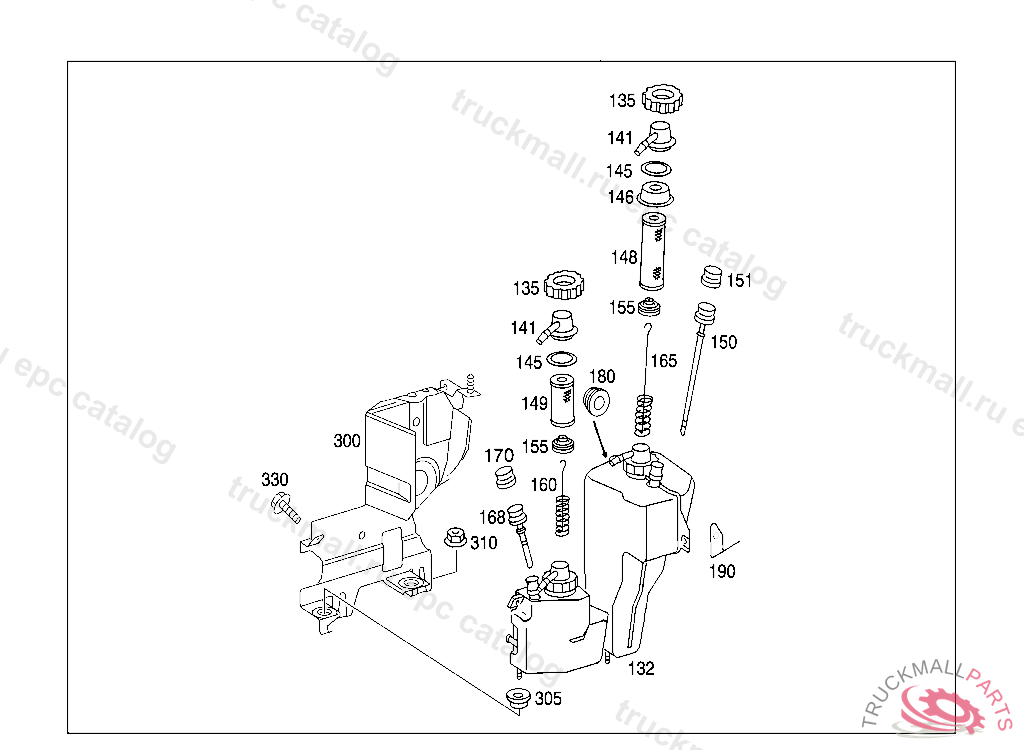

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 235 OIL TANK & VALVES USED FOR "ABC" HYDRAULIC SYSTEM IL. 1

Поз.
Артикул
Описание
132
A2203200314
DASHPOT (OIL RESERVOIR)
135
A2103270072
NUT
141
A2103270021
COVER SUPPLY TANK
145
A2103270060
SEAL RING
146
A2109973581
GROMMET ABC RESERVOIR
148
A0031845101
LONGLIFE OIL FILTER
148
A0031846101
OIL FILTER ABC RESERVOIR
149
A0021845501
OIL FILTER
150
A2203200259
OIL DIPSTICK ABC RESERVOIR
151
A1233270059
PROTECTIVE CAP
155
A1233270160
SEAL RING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
160
A1239931101
SPRING , 116.020 092526 024,025 099723 028,029 043105 032,033 072837
165
A2209930401
SPRING ABC RESERVOIR
168
A2203200159
OIL DIPSTICK POWER STEERING RESERVOIR
170
A1233270059
PROTECTIVE CAP
180
A2015040112
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
300
A2203270086
SCREENING OIL RESERVOIR
305
A1299971681
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
310
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
330
N910105005000
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
