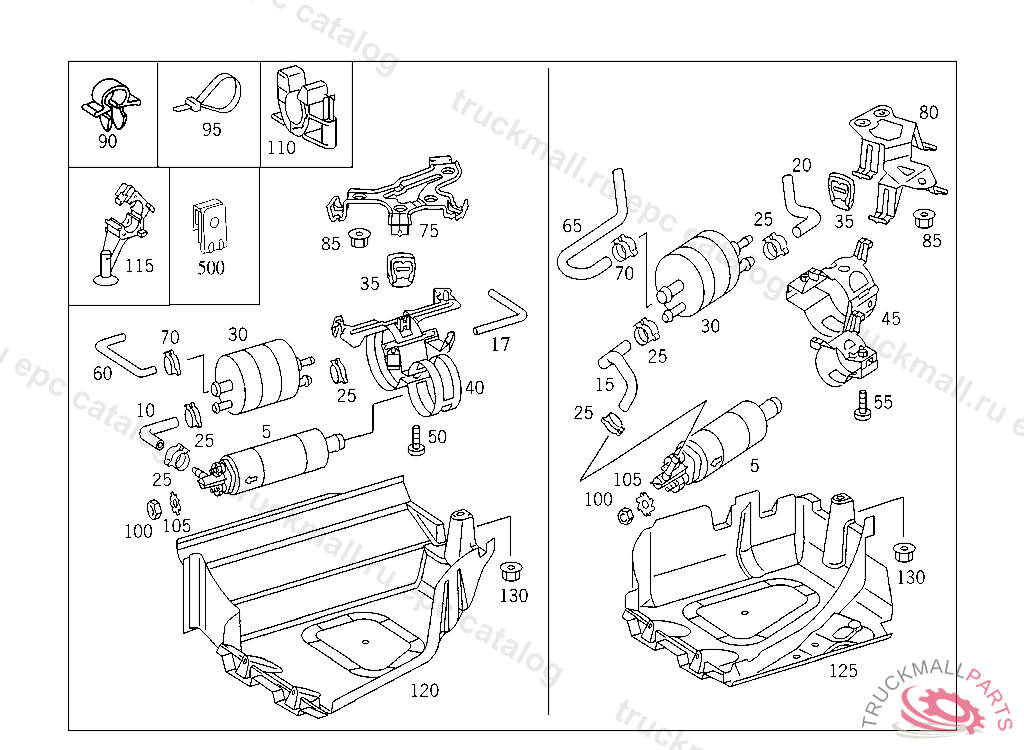

Поз.
Артикул
Описание
5
FUEL PUMP , A 01472120010630801
5
FUEL PUMP ,F 110985
10
HOSE FROM FEED LINE TO FILTER 240 MM
10
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
15
MOLDED HOSE FROM FUEL PUMP TO FUEL FILTER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 01693320010407, Replaced By: A2204763326
15
FUEL HOSE FROM FUEL PUMP TO FUEL FILTER, A 02427920020930802
15
HOSE FROM FUEL PUMP TO FUEL FILTER, A 01885920010630802
15
HOSE FROM FUEL PUMP TO FUEL FILTER, A 01472120010630801 A 03209920020930803
17
HOSE FROM FEED LINE TO FILTER 240 MM
20
FUEL HOSE FUEL FILTER TO DELIVERY LINE, A 02427920020930802
20
HOSE FUEL FILTER TO DELIVERY LINE, A 01693420010407 A 03209920020930803 TO BE ADAPTED DURING ASSEMBLY
25
HOSE CLAMP HOSE ATTACHMENT
30
FUEL FILTER FUEL FILTER TO TANK
35
RUBBER RING , ONLY FOR R.S.A.
40
BRACKET
45
BRACKET FUEL PUMP AND FUEL FILTER
50
HEXALOBULAR BOLT EMERGENCY LANTERN TO CAB M5X35
50
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X35
55
SCREW REFLECTOR TO BRACKET
55
HEXALOBULAR BOLT ELECTRICAL COMPARTMENT M5X25
60
HOSE , Replaced By: A2019970852
60
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, FROM MODEL YEAR '98
65
HOSE RETURN LINE TO FILTER, TO BE ADAPTED DURING ASSEMBLY
70
HOSE CLAMP HOSE FASTENING 9/13MM
75
BRACKET
80
BRACKET FUEL PUMP ASSEMBLY TO REAR FLOOR
85
NUT COVERING TO CAB FIRE WALL
90
CLAMP BOWDEN CABLE TO CAB
95
CABLE TIE310X5MM
95
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
100
NUT IN CASE OF SUBSEQUENT INSTALLATION
100
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
105
TOOTHED WASHER
105
TOOTHED WASHER ELECTRIC CABLE TO FUEL PUMP
105
TOOTHED WASHER BRACKET
110
BRACKET HOSE FASTENING
115
CLAMP HOSE FASTENING
120
COVER FUEL PUMP
125
COVER FUEL PUMP AND FUEL FILTER
130
NUT COVERING TO CAB FIRE WALL
500
NUT RETAINER PROTECTIVE PLATE TO EXHAUST MUFFLER
