Mercedes A2032920174 - Болт

S 55 AMG 220.173

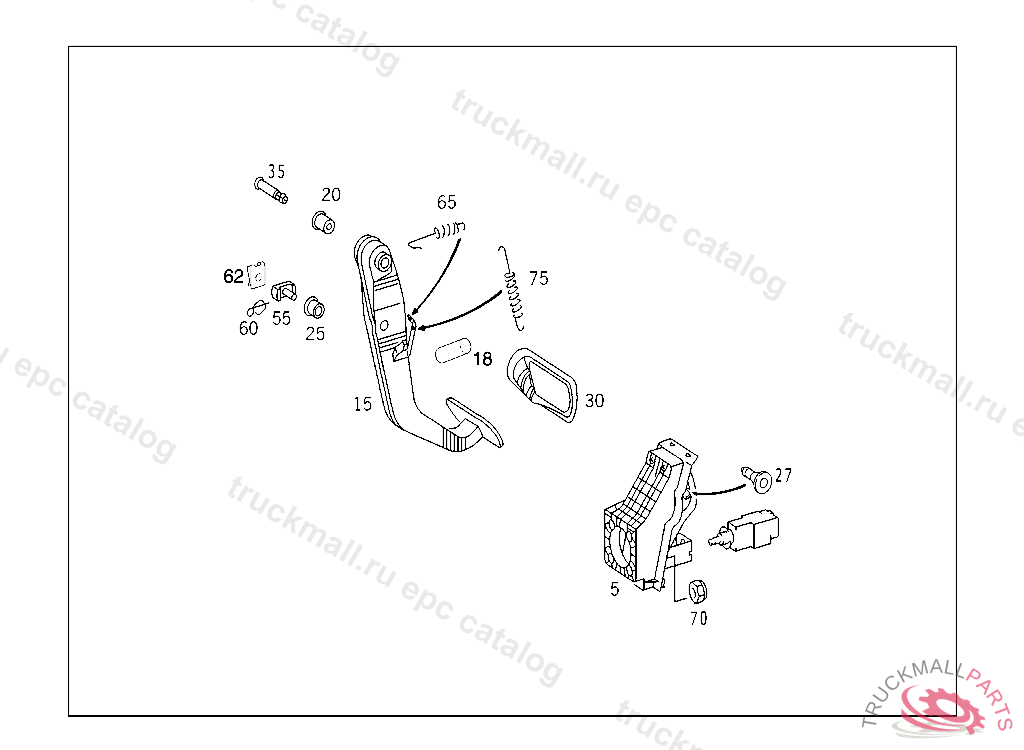

29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING

Поз.
Артикул
Описание
5
A2202901119
BEARING BRACKET
15
A2202902718
BRAKE PEDAL , Replaced By: A2202902918
15
A2202901718
PEDAL BRAKE PEDAL, A 13774120001031
15
A2202902918
PEDAL
18
A0009970581
GROMMET5.0 MM
20
A1242920050
BUSHING BRAKE PEDAL
25
A2102920150
BUSHING PEDAL ASSEMBLY
27
A1682910055
PLUG
30
A1232910082
PAD BRAKE PEDAL
35
A1682910374
PIN CLUTCH PEDAL TO BEARING BRACKET
55
A2032920174
PIN BRAKE PEDAL TO BRAKE BOOSTER
55
A2102920474
PIN BRAKE PEDAL TO BRAKE BOOSTER, A 03178220020802, Replaced By: A2032920174, +001N912002008003
60
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
62
N912002008003
LOCK PULL TO FASTENER
65
A2209930510
SPRING BRAKE PEDAL
70
N913023008003
NUT HORN TO BRACKET M8
70
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
75
A2209930010
SPRING BRAKE PEDAL RELEASE SPRING
