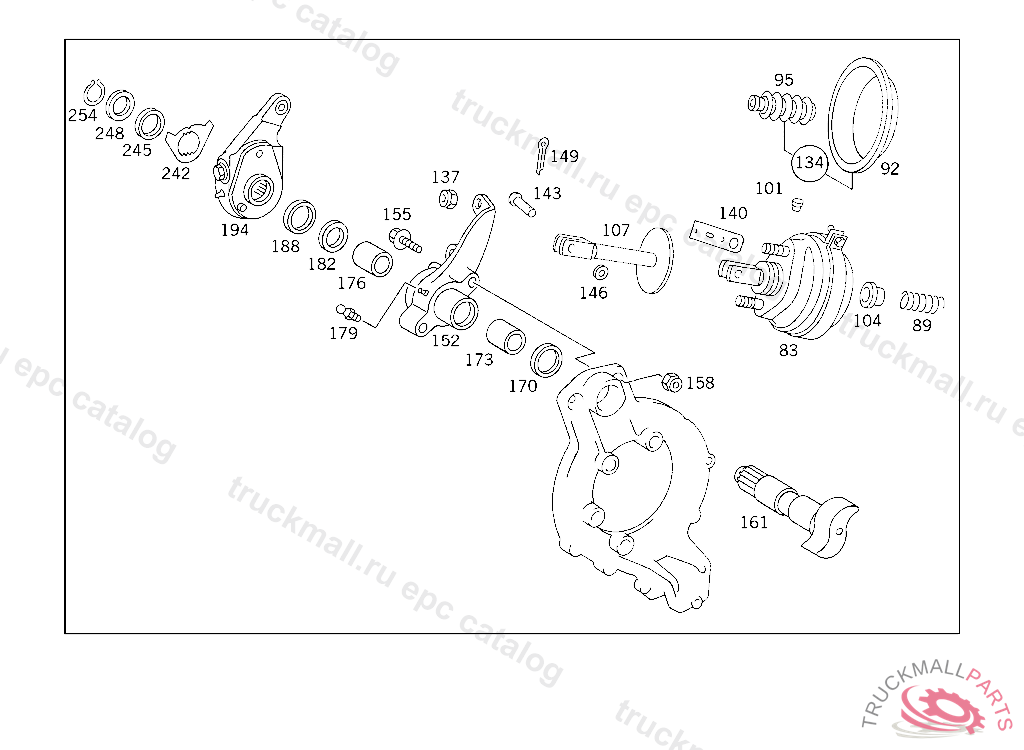

Поз.
Артикул
Описание
83
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
83
BRAKE CYLINDER (DIAPHRAGM CYLINDER) KNORR
89
SPRINGTO 017 420 22 18/23 18
89
SPRINGTO 694 420 73 18/74 18
92
DIAPHRAGMTO 007 420 42 18,KNORR
92
DIAPHRAGM , Replaced By: A0004315428
95
CUP , Replaced By: A0004215386
104
SEAL RINGKNORR
134
REPAIR KIT DIAPHRAGM CYLINDER KNORR
134
REPAIR KITTO 694 420 73 18/74 18
134
REPAIR KITWABCO
137
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
140
BRACKET DIAPHRAGM CYLINDER TO BRAKE ANCHOR
143
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
143
PIN , Replaced By: A3619910005
146
WASHER SHIFT LEVER TO PIVOT PIN
149
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
152
BRAKE ANCHOR RIGHT BRAKE SHAFT
152
BRAKE ANCHOR LEFT BRAKE SHAFT
155
SCREW BEARING BRACKET TO BRAKE ANCHOR
158
NUT WITH COLLAR
158
NUT , Replaced By: A0009905750
161
BRAKE CAMSHAFT , Replaced By: A6234210136
161
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
161
BRAKE CAMSHAFT , Replaced By: A6234210236
161
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
170
SEAL RING , Replaced By: A0129973747
170
SEAL RING , Replaced By: A0129973647
170
SEAL RING BRAKE CAMSHAFT BEARING
170
SEAL RING OUTSIDE BEARING BRACKET
170
SEAL RING OUTSIDE BEARING BRACKET
170
SEAL RING OUTSIDE BEARING BRACKET
173
BUSHING INSIDE
176
BUSHING OUTSIDE
179
GREASE NIPPLE INTERMEDIATE LEVER
182
SEAL RING INSIDE BEARING BRACKET
182
SEAL RING BRAKE CAMSHAFT BEARING IN CASE
182
SEAL RING , Replaced By: A0149972247
188
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
194
ADJUSTER
242
STOP WASHER ADJUSTER TO BEARING BRACKET
245
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
245
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
245
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
245
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
248
SPACER WASHER ADJUSTER
254
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
999
CUPTO 007 420 68 18,WABCO
999
BRAKE ANCHOR LEFT
999
BRAKE ANCHOR RIGHT
