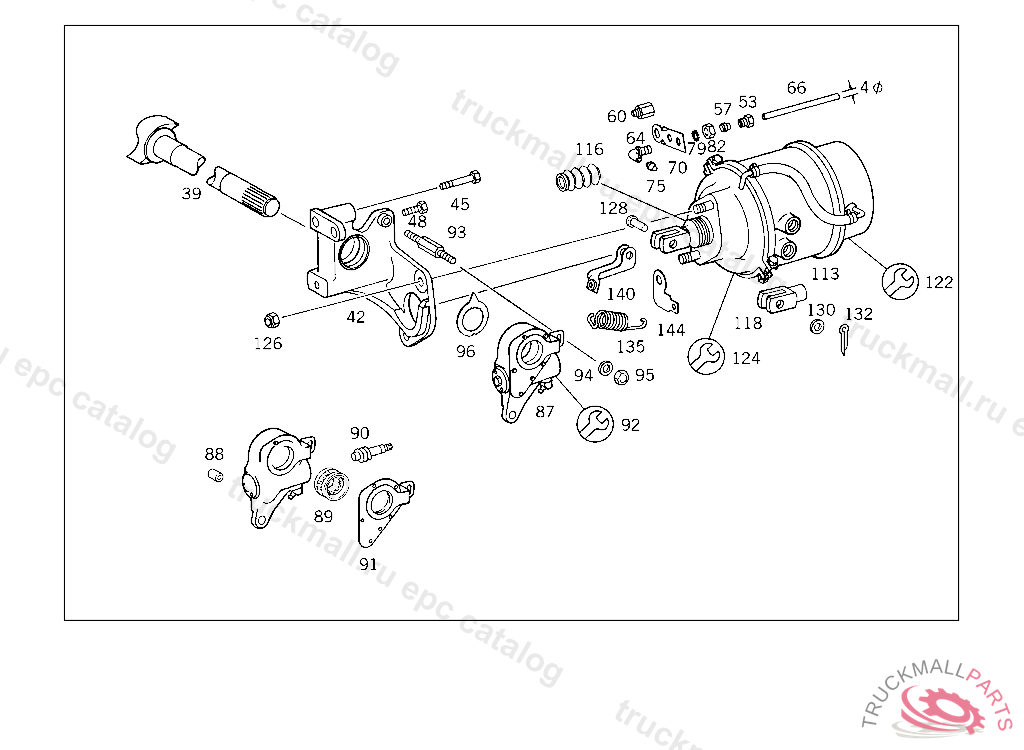

Поз.
Артикул
Описание
39
BRAKE CAMSHAFT ON BEARING BRACKET,RIGHT
39
BRAKE CAMSHAFT ON BEARING BRACKET,LEFT
39
BRAKE CAMSHAFT , Replaced By: A3074230936
39
BRAKE CAMSHAFT , Replaced By: A3074230836
42
BEARING BRACKET RIGHT
42
BEARING BRACKET LEFT
45
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
45
SCREW , Replaced By: N000960016250
48
SCREW SHACKLE TO CONSOLE
53
FITTING LINE CONNECTION VOGEL
57
SEAL CONE LINE CONNECTION VOGEL
60
CONNECTOR , Replaced By: A0005730432
60
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR VOGEL, M 8X1
64
BULKHEAD FITTING LUBRICATING OIL LINE
66
LINE PEDAL ASSEMBLY LUBRICATION 4X0.7 MM, LENGTH AVAILABLE 25000 MM
66
LINE PEDAL ASSEMBLY LUBRICATION 4X0.7 MM, LENGTH AVAILABLE 25000 MM
70
BRACKET OIL LINE
75
GREASE NIPPLE
75
GREASE NIPPLE , Replaced By: N071412008102
79
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
82
NUT RELEASE BEARING LUBRICATION
82
NUT , Replaced By: N308675014002
82
NUT , Replaced By: N308675014000
87
ADJUSTER RIGHT
87
ADJUSTER LEFT
88
BUSHING18.00 MM
88
BUSHING
89
WORM GEAR"SAB"
90
WORM SCREW"SAB"
91
CONTROL UNIT
92
REPAIR KIT , Replaced By: A0004200092
92
REPAIR KIT SLACK ADJUSTER "SAB"
93
PIN SLACK ADJUSTER TO BEARING BRACKET
94
WASHER BRACKET TO CROSS MEMBER
95
NUT
96
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
113
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),LEFT WABCO,N 100664
113
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),LEFT WABCO,N 100664
113
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),LEFT WABCO,N 100663
113
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),RIGHT WABCO,N 100663
116
CUPWABCO
118
GUIDEWABCO
122
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO
122
REPAIR KIT SPRING LOAD ACCUMULATOR PART TO 007 420 68 18,007 420 70 18,WABCO
124
WHEEL BRAKE CYLINDER DIAPHRAGM PART TO 010 420 70 18,WABCO
124
REPAIR KIT , Replaced By: A0184203718
126
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
126
NUT COMBINATION CYLINDER TO BEARING BRACKET
128
PIN WHEEL CYLINDER TO SLACK ADJUSTER, 668295
130
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
130
WASHER , Replaced By: N000433015005
132
COTTER PIN STRAP TO SUPPORT
132
COTTER PIN REAR PANEL TO SUBSTRUCTURE
135
SPRING SLACK ADJUSTER TO TRISTOP CYLINDER, FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE686295
140
BRACKET RIGHT, FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE686295
140
BRACKET LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE686295
144
BRACKET RIGHT, FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE686295
144
BRACKET LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE686295
999
NUT ENGINE MOUNTING M8
999
PIN , Replaced By: A3619910005
999
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
