Mercedes A0019903703 - Болт

E 350 BLUETEC 4MATIC 212.094

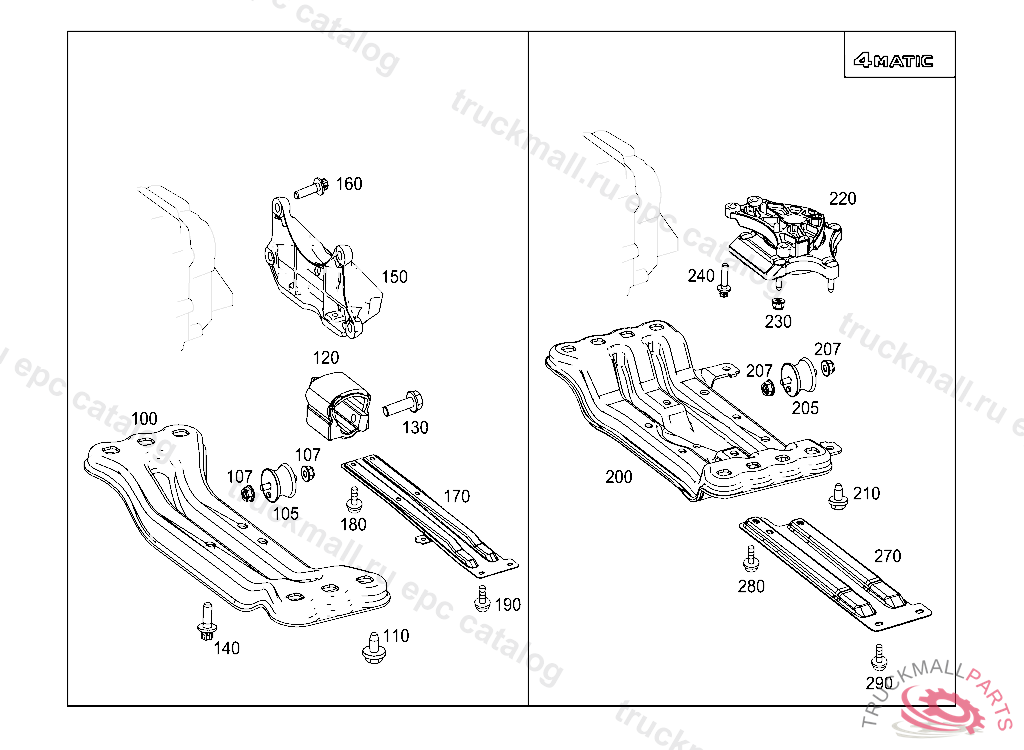

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 2

Поз.
Артикул
Описание
105
A2044920244
SUSPENSION RING AT EXHAUST PIPE
107
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
200
A2122401802
ENGINE SUPPORT REAR
200
A2122404002
ENGINE MOUNT REAR
205
A2044920244
SUSPENSION RING AT EXHAUST PIPE
207
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
210
A0019903703
BOLT ENGINE REAR SUPPORT TO FRAME M10X22
210
A0019907436
BOLT ENGINE REAR SUPPORT TO FRAME, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019903703
220
A2042400618
TRANSMISSION MOUNT REAR
230
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
240
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
270
A2122420732
STRUT
280
N000000007752
HEXALOBULAR BOLT STRUT AT REAR ENGINE SUPPORT M8X16
290
N000000007752
HEXALOBULAR BOLT STRUT AT REAR ENGINE SUPPORT M8X16
