Mercedes A1869970032 - ЗАГЛУШКА РЕЗЬБОВАЯ

HL 4/27 D-10/42:8 743.056

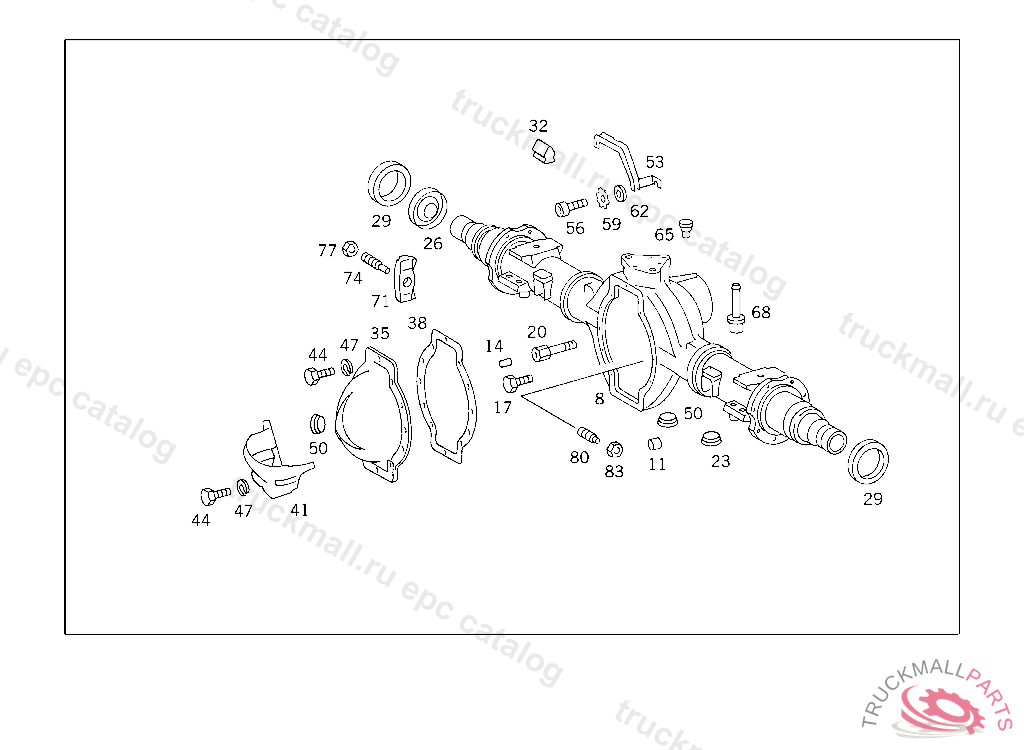

35 743.0 REAR AXLE - 200 REAR AXLE,AXLE CASING,ATTACHMENT PARTS IL. 2

Поз.
Артикул
Описание
8
A3853507320
AXLE HOUSING ,538738
8
A3843500520
AXLE HOUSING
11
A3523510074
PIN AXLE TUBE TO AXLE HOUSING
14
N000007006205
CYLINDRICAL PIN
17
N914126016005
SCREW BEARING COVER TO AXLE HOUSING
26
A3023570282
OIL COLLECTOR
29
A3603560415
THRUST RING
35
A6163510208
COVER REAR AXLE HOUSING
35
A6163500021
COVER REAR AXLE HOUSING
38
A6503510180
GASKET
38
A3023510180
GASKET
44
N914112010016
SCREW COVER TO REAR AXLE HOUSING TO 615 350 04 21,615 351 07 08
50
A1869970032
SCREW PLUG , Replaced By: A0009972632
50
A0009973432
SCREW PLUG HOUSING,BOTTOM,183596
50
A0009972632
SCREW PLUG HOUSING,BOTTOM,183596
68
A3443517069
FITTING ,347245
71
A3853530149
SLIDE , NOT USED
74
A3833530276
SET SCREW RING GEAR CHECK
77
A3159900051
NUT SET SCREW
80
A3853370171
SCREW
83
N080705014001
NUT ELECTRONIC ACCELERATOR PEDAL
999
A3455847424
UNIT IDENTIFICATION PLATE
999
A3449917161
DOWEL PIN
