Mercedes A1232910082 - Накладка педали тормоза

S 300 BLUETEC HYBRID 222.104

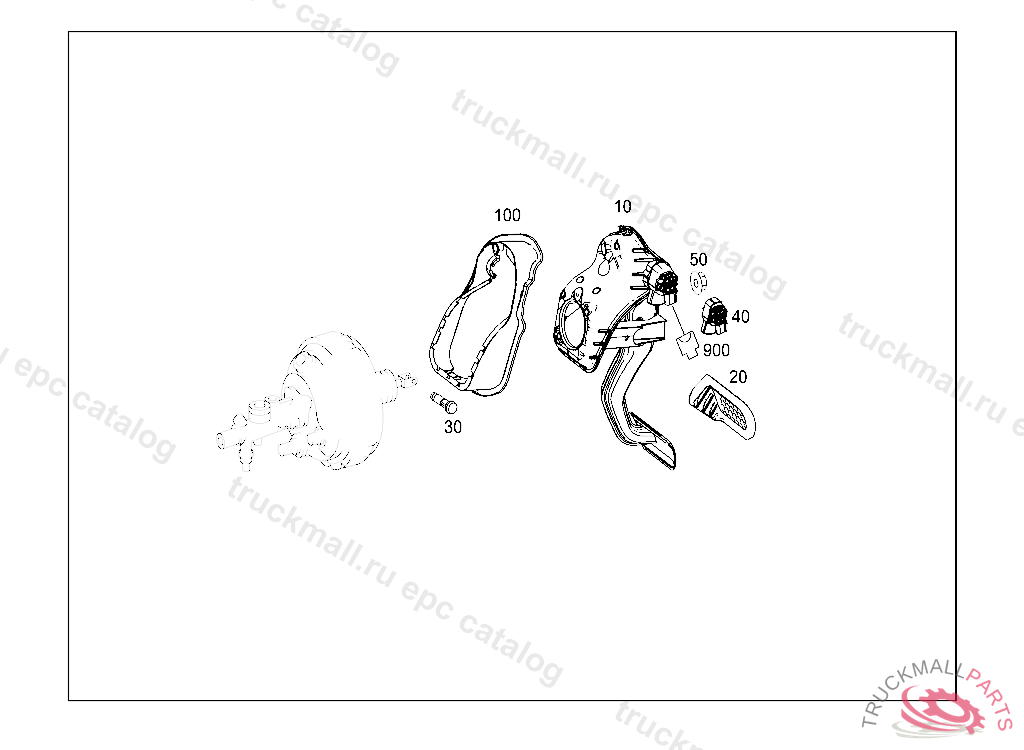

29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING

Поз.
Артикул
Описание
10
A2222902901
PEDAL SYSTEM
10
A2222900401
PEDAL SYSTEM
20
A1232910082
PAD BRAKE PEDAL
20
A1702900182
PAD BRAKE PEDAL
30
A2042920074
PIN BRAKE UNIT TO PEDAL ASSEMBLY
40
A2229057504
TURNING ANGLE PICKUP TO PEDAL ASSEMBLY
50
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
100
A2222920015
DAMPENING, PEDAL ASSEMBLY
100
A2222920115
DAMPENING, PEDAL ASSEMBLY
900
A2105404381
SOCKET HOUSING. PIN BUSHING HOUSING POLLUTANT SENSOR, A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
