Поз.
Артикул
Описание

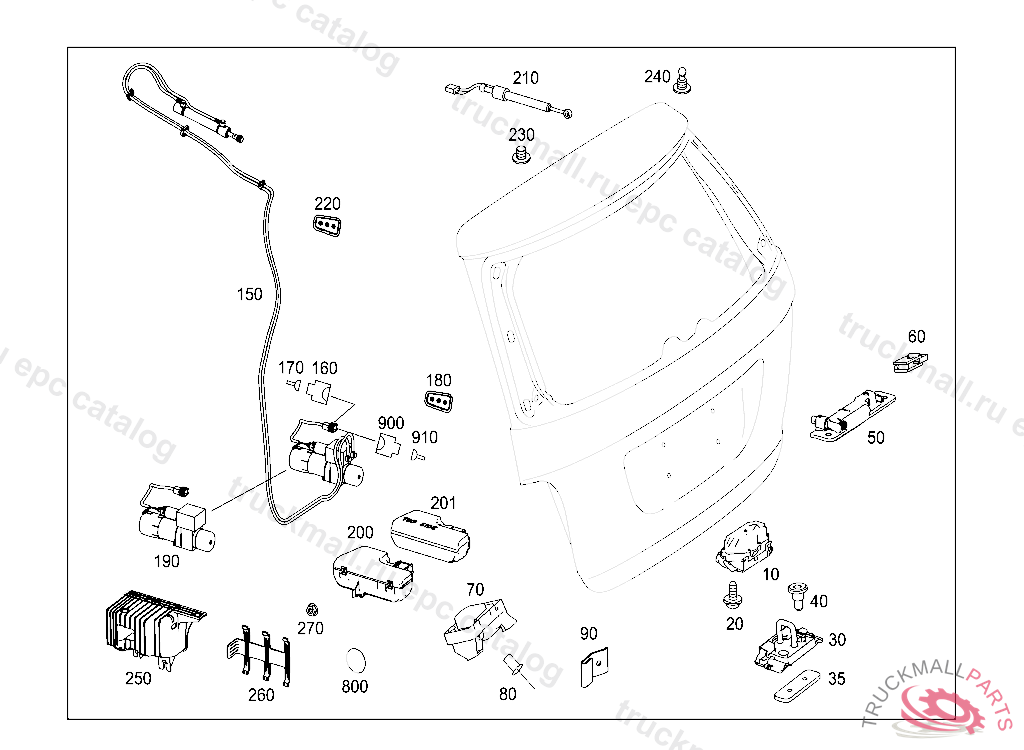

10
LOCK REAR PANEL DOOR, A 52657720090505
20
BOLT LOCK TO REAR PANEL DOOR M6X12
30
CLAMP REAR PANEL DOOR
35
PLATE BELOW LOCK BRACKET
40
BOLT LOCKING CLAMP TO REAR END CENTRAL PART
50
HANDLE FLAP OUTSIDE
60
SWITCH TRUNK LID REMOTE CONTROL, F 95500020070630 E 06000020080801
70
INTERIOR HANDLE ASSEMBLY
80
RIVET ATTACHMENT NOISE ENCAPSULATION 4.8X10.3
80
RIVET ANTINOISE CAPSULE TO ANTINOISE CAPSULE
90
BRACKET LOCK TO REAR PANEL DOOR
150
HYDR. UNIT TRUNK LID DRIVE, A 06859520070928808
160
HOUSING WARNING DEVICE 4-PIN SLK2.8
170
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
170
CONTACT SPRING1.5-2.5 MM2 SLK2.8,X99/4
180
SEAL HYDRAULIC PUMP
190
TS PUMP ELEMENT PARTS KIT, A 06859520070928808
200
INSULATION PUMP PUMP, A 32101520070928808
201
INSULATION PUMP INSIDE, A 06859520070928808
210
POTENTIOMETER POSITION SENSOR, REAR-END DOOR
220
SEAL HYDRAULIC PUMP
230
BOLT PNEUMATIC SPRING TO BRACKET 16X1.5X15-10.9MK
230
BALL PIVOT PNEUMATIC SPRING TO BRACKET
240
BALL PIVOT PNEUMATIC SPRING TO BRACKET
250
BRACKET IN LUGGAGE COMPARTMENT,LEFT
260
BRACKET IN LUGGAGE COMPARTMENT,LEFT
270
MULTIPLE NUT DELIVERY UNIT TO RESERVOIR
800
ADHESIVE TAPE PIPING
900
CLUTCH CONNECTOR SUN SENSOR 4-PIN SLK2.8,X28/26
910
CONTACT SPRING4.0 MM2 SLK2.8
910
CONTACT SPRINGTO A 038 545 76 28
