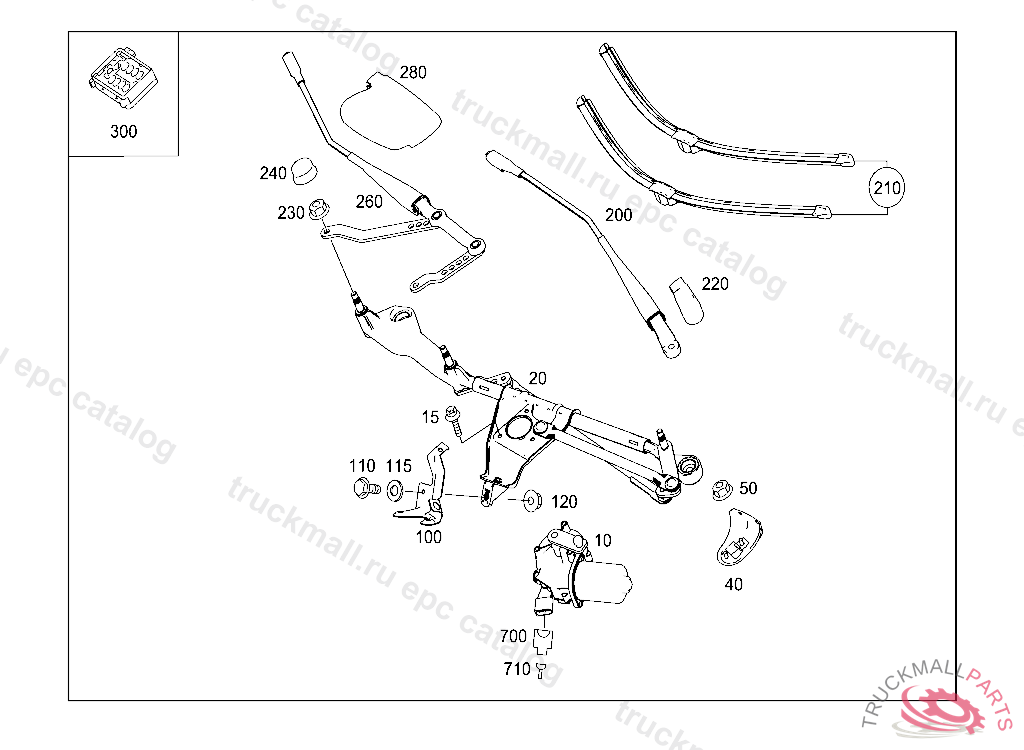

Поз.
Артикул
Описание
10
WIPER MOTOR PANE WIPER
10
WIPER MOTOR PANE WIPER
15
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
20
LINKAGE PANE WIPER
20
LINKAGE PANE WIPER
40
BRACKET AT FIRE WALL
50
NUT BRACKET TO BODY SHELL M6
100
BRACKET MOUNTING, WIPER SYSTEM
100
BRACKET MOUNTING, WIPER SYSTEM
110
SCREW LEVER TO ENGINE CONTROL SHAFT
110
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
110
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
110
SCREW COVER PLATE TO COVER PLATE M 6 X 12
115
WASHER COMPRESSED AIR LINE TO BRACKET
120
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
120
NUT , Replaced By: N913023006001
120
NUT HORN TO BRACKET M8
200
WIPER ARM RIGHT
200
WIPER ARM LEFT
210
TS WIPER BLADE DRIVER'S AND CO-DRIVER'S SIDE
210
TS WIPER BLADE DRIVER'S AND CO-DRIVER'S SIDE
220
CAP LEFT
220
CAP RIGHT
230
HEXAGON NUT. NUT WIPER ARM TO WIPER MOTOR
240
COVER CAP WIPER ARM FASTENING
260
WIPER ARM LEFT
260
WIPER ARM RIGHT
280
CAP RIGHT
280
CAP LEFT
300
CTRL. UNIT RAIN-LIGHT RAIN AND LIGHT SENSOR, Replaced By: A1648203085
300
CTRL. UNIT RAIN-LIGHT RAIN AND LIGHT SENSOR, Replaced By: A1648200185
300
CONTROL UNIT RAIN AND LIGHT SENSOR
700
PIN BUSHING HOUSING. PLUG 4-POLE
710
REP.SET CONTACT0.75 MM2 SLK2.8, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
710
FEMALE CONTACT RELAY SUPPORT 2.5-4.0 MM2 SLK2.8,K100
