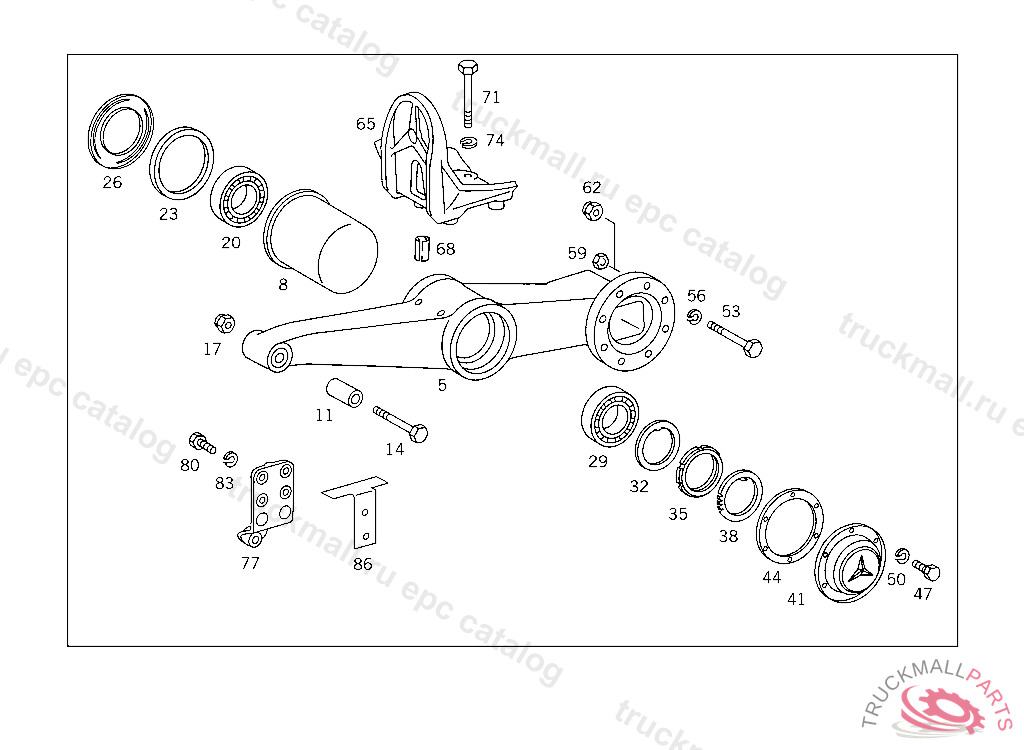

Поз.
Артикул
Описание
5
SWINGING LINK TRAILING AXLE,RIGHT,G 027227
5
SWINGING LINK TRAILING AXLE,RIGHT,G 027226
5
SWINGING LINK TRAILING AXLE,LEFT,G 027226
5
SWINGING LINK TRAILING AXLE,LEFT,G 027227
8
COVER SWINGING LINK
11
RUBBER MOUNTING
11
RUBBER MOUNTING ,D 150724
11
RUBBER MOUNTING
14
SCREW REAR SPRING TO REAR SPRING FRONT BRACKET
14
SCREW FRONT SPRING TO SPRING SHACKLE
17
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
17
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
20
TAPERED ROLLER BEARING INSIDE
20
TAPERED ROLLER BEARING INSIDE
20
TAPERED ROLLER BEARING INSIDE
20
TAPERED ROLLER BEARING INSIDE
23
SEAL RING OUTSIDE
23
SEAL RING OUTSIDE
26
COVER PLATE SWING ARM, REAR, FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE G 007739
26
COVER PLATE
29
TAPERED ROLLER BEARING ANNULUS,FRONT, UP TO TRANSFER CASE 005833
29
TAPERED ROLLER BEARING DRIVE SHAFT,FRONT
29
TAPERED ROLLER BEARING ANNULUS, UP TO TRANSFER CASE 005833
29
TAPERED ROLLER BEARING PLANETARY CARRIER
29
TAPERED ROLLER BEARING FRONT PLANETARY CARRIER
32
THRUST WASHER SWINGING LINK TO AXLE TUBE
35
NUT SWINGING LINK TO AXLE TUBE
38
LOCK PLATE SWINGING LINK TO AXLE TUBE
41
COVER REAR WHEEL HUB
44
GASKET
47
SCREW PIPE CLAMP
47
SCREW , Replaced By: N304017008021
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
53
SCREW SWINGING LINK TO AXLE TUBE
53
SCREW BEARING BRACKET TO BRAKE ANCHOR
53
SCREW , Replaced By: A3469903204
56
LOCK WASHERROCKINGER TYP 59 G140,59 G150
62
HEXAGON NUT WHEEL CYLINDER TO BRAKE ANCHOR,DISC BRAKE
65
BEARING BRACKET LIFTING DEVICE USED FOR TRAILING AXLE
68
CLAMPING SLEEVE BALL PIVOT
71
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
71
SCREW STEERING SUPPORT TO FRAME M 14X55
71
SCREW , Replaced By: N000961014158
71
SCREW , Replaced By: N308676014014
74
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
77
BRACKET SHOCK ABSORBER,4 139514
80
SCREW BEARING BRACKET TO SIDE MEMBER
83
LOCK WASHERROCKINGER TYP 59 G140,59 G150
86
ANGLE LUBRICATING LINE
