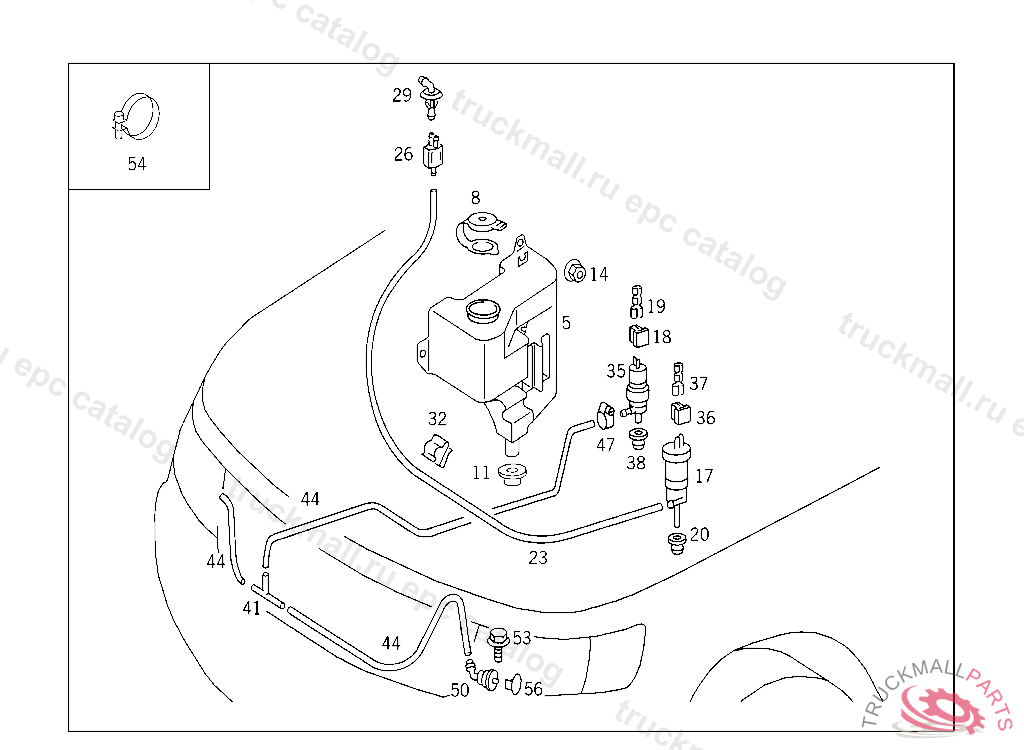

Поз.
Артикул
Описание
5
RESERVOIR
8
FILLER CAP , Replaced By: A2028609369
8
FASTENER WINDSHIELD WASHER RESERVOIR, 023 038781 033 021187 123 026339 130 035362
11
GROMMET RESERVOIR TO WHEELHOUSE
14
NUT COVERING TO CAB FIRE WALL
17
PUMP PANE WASHER
17
PUMP PANE WASHER
18
PIN BUSHING HOUSING BIPOLAR
19
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
19
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
19
PIN BUSHING , Replaced By: A0075458226
20
SEAL PUMP TO RESERVOIR
23
HOSE RESERVOIR DE-AERATION,4 238841 ORDER BY THE METER
26
CHECK VALVE (CHECK VALVE),WINDSHIELD WASHER, 000 159697 003 078977 007 064070 083 004734 086 003596 093 004546 102,103 149491 105 164442 183 008116 190 011709
29
CONNECTOR
32
CLIP HOSE ATTACHMENT
35
PUMP HEADLAMP WIPER/WASHER
36
PIN BUSHING HOUSING BIPOLAR
37
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
37
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
37
PIN BUSHING , Replaced By: A0075458226
38
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
38
SEAL PUMP TO RESERVOIR
41
DISTRIBUTOR FROM REFILLING LINE TO HOSE
44
HOSE HEADLAMP WIPER/WASHER, ORDER BY THE METER
47
CLAMP , Replaced By: A0059970190
47
CLAMP , Replaced By: A1409950036
47
HOSE CLAMP LINE MOUNTING
50
NOZZLE HEADLAMP WIPER/WASHER
53
COMBINATION BOLT INSTRUMENT PANEL TO FRONT PANEL PILLAR
54
HOSE CLAMP HOSE FASTENING 9/13MM
54
CABLE STRAP REAR SWIVEL DOOR
56
COVERING NOZZLE
