Mercedes A0009904892 - Крепёж

214, 208 CDI, 211 CDI, 213 CDI, 216 CDI 902.671 TO IDENT-NR. R337626

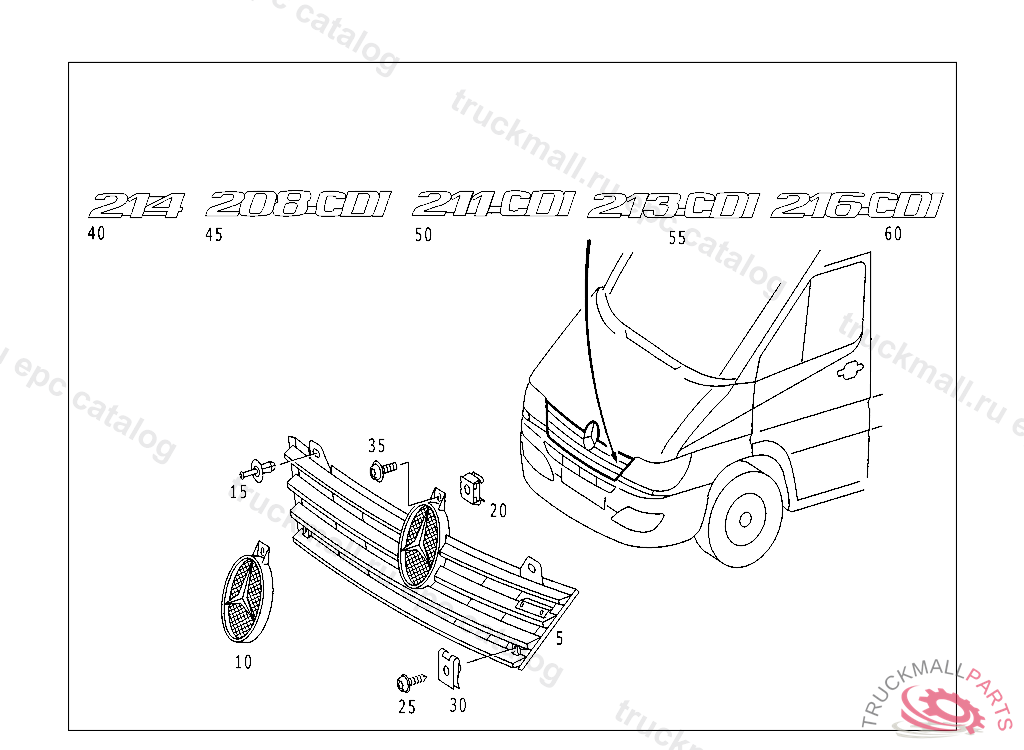

88 ATTACHMENT PARTS - 430 RADIATOR GRILLE SHELL

Поз.
Артикул
Описание
5
A9018800085
RADIATOR GRILLE
5
A9018800185
RADIATOR GRILLE READY TO BE PAINTED
10
A9018170016
BADGE , 20060101
15
A0009904892
RIVET
20
N913014006003
CAPTIVE NUT. NUT
25
N000000000530
TAPPING SCREW
30
A0039949945
LOCK. FUSE , R 44096820020830 20021024
35
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
40
A9018171814
TYPE DESIGNATION214
45
A9018171514
TYPE DESIGNATION208CDI, 20060101
50
A9018171614
TYPE DESIGNATION211CDI, 20060101
55
A9018171714
TYPE DESIGNATION213 CDI
60
A9018171914
TYPE DESIGNATION216CDI, R 42378420020628542378420020628 A 90600620021031
