Главная
›
Mercedes
›
VAN
›
SPRINTER 310 D,312 D
›
903.473
›

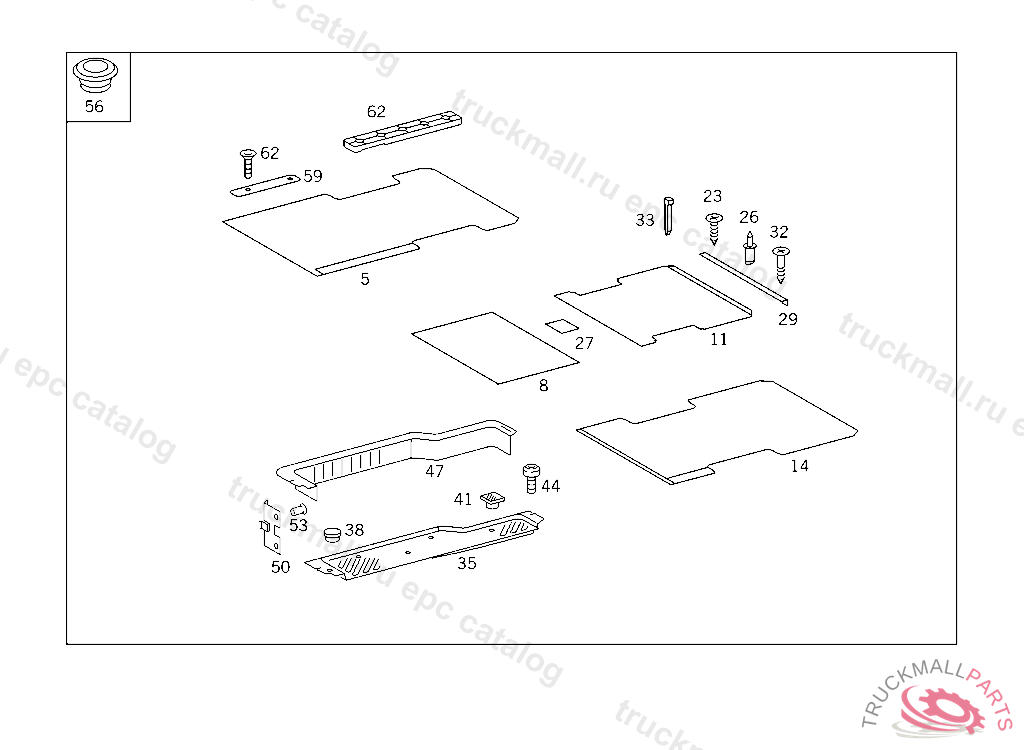

68 COVERING AND LINING
›
285 FLOOR COVERING,ENTRANCE TRIM IN LOAD OR PASSENGER'S SPACE,WOODEN FLOOR
Mercedes A9016841563 -
SPRINTER 310 D,312 D 903.473
68 COVERING AND LINING - 285 FLOOR COVERING,ENTRANCE TRIM IN LOAD OR PASSENGER'S SPACE,WOODEN FLOOR
Поз.
Артикул
Описание
8
A9016840163
BOTTOM FRONT, TO BE ADAPTED DURING ASSEMBLY
8
A9016844563
14
A9016841563
26
A0029901897
RIVET , Replaced By: A0039901097
26
A0039901097
RIVET PARTITION PANEL TO FLOOR
29
A9016840062
LEDGE REAR FLOOR
32
N007997004036
WOOD SCREW LEDGE TO FLOOR 4X16MM
33
A0009880158
35
A9016861128
PANELLING
35
A9016861028
PANELLING. PANELING REAR ENTRANCE,INSIDE LEFT
38
A9016860107
COVERING. COVER ENTRANCE SLIDING DOOR LEFT
41
A9016860207
COVERING. COVER ENTRANCE SLIDING DOOR LEFT
44
A0009843229
SCREW MOUNTING PARTS
44
A0009843329
SCREW ROCKER PANEL TO STEP
47
A9016862028
47
A9016860928
PANELLING CENTRAL ENTRANCE, TO BE ADAPTED DURING ASSEMBLY
47
A9016862128
47
A9016860828
50
A9019880378
CLIP ENTRANCE SLIDING DOOR LEFT
53
N007337003104
BLIND RIVET ATTACHMENT,RAIL
56
A3819972786
PLUG. STOP PLUG SEAT MOUNTING
62
A9016840018
