Главная
›
Mercedes
›
VAN
›
314, 308 CDI, 311 CDI, 313 CDI, 316 CDI
›
903.622 TO IDENT-NR. R337626
›
49 EXHAUST SYSTEM
›
300 SCREENING PLATES

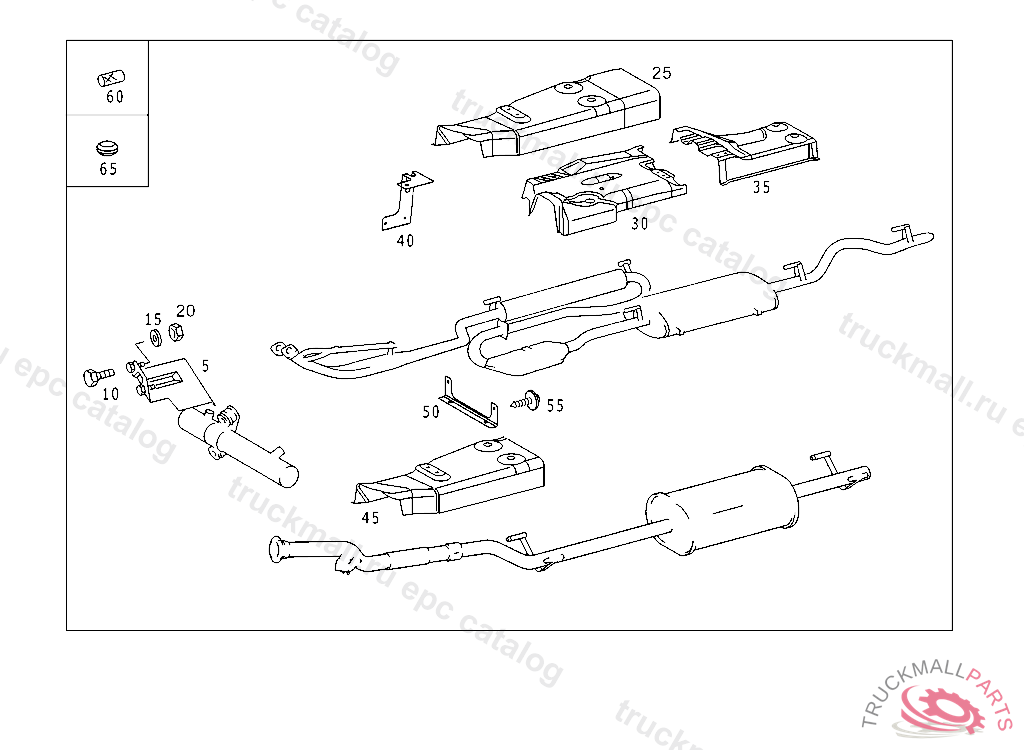

Mercedes A9014912530 - Защитная панель
314, 308 CDI, 311 CDI, 313 CDI, 316 CDI 903.622 TO IDENT-NR. R337626
49 EXHAUST SYSTEM - 300 SCREENING PLATES
Поз.
Артикул
Описание
5
A9014912530
PROTECTIVE PLATE FRONT RIGHT
10
N304017006016
SCREW PUMP TO BRACKET
15
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
20
N910113006000
NUT HEATING PIPE TO BRACKET
25
A9014911430
PROTECTIVE PLATE FRONT EXHAUST PIPE M 111
30
A9014911530
PROTECTIVE PLATE FRONT MUFFLER AND CATALYTIC CONVERTER M 111
35
A9014911630
PROTECTIVE PLATE MAIN MUFFLER M 111
40
A9014910917
ANGLE PROTECTIVE PLATE TO EXHAUST MUFFLER
45
A9014912130
PROTECTIVE PLATE FRONT EXHAUST PIPE
50
A9014910817
ANGLE PROTECTIVE PLATE TO FRAME
55
A0019903636
SCREW. BOLT ANGLE TO CROSS MEMBER
60
A0009871145
LOCKING CAP
65
A0009972781
GROMMET PLUG SOCKET
