Mercedes A0049903112 - Болт

314, 308 CDI, 311 CDI, 313 CDI, 316 CDI 903.663 TO IDENT-NR. R337626

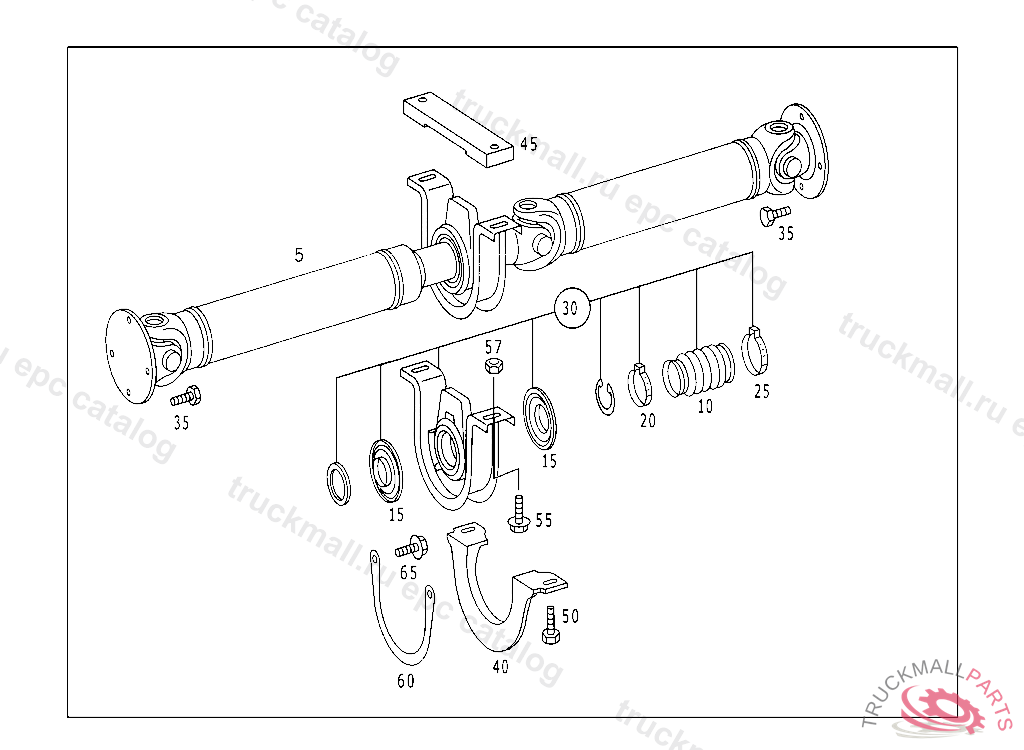

41 PROPELLER SHAFT - 045 TWO-PART PROPELLER SHAFT

Поз.
Артикул
Описание
5
A9014108506
PROPELLER SHAFT REAR/WHEELBASE: 4025 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
A9014110097
BOOT SLIP JOINT,P 210780
15
A9014110396
PROTECTIVE CAP
20
A0059971190
LOOM TIE56.0 MM,909010
25
A0059974790
LOOM TIE
30
A9034100010
INTERMEDIATE BEARING PARTS KIT
35
A3099901801
SCREW PROPELLER SHAFT TO TRANSMISSION, 309.9 FROM CHASSIS 522061 309.1 AUTOMATIC TRANSMISSION FROM CHASSIS 523813 309.1 MANUAL TRANSMISSION,WHEELBASE 2950,FROM CHASSIS 521727 309.1 MANUAL TRANSMISSION,WHEELBASE 3500,FROM CHASSIS 520629
40
A9014110940
BRACKET INTERMEDIATE BEARING TO FRAME
45
A9034110084
SHIM INTERMEDIATE BEARING TO FRAME
45
A9014110484
SHIM
50
N308676012013
HEXAGON HEAD BOLT , Replaced By: A0029902704
55
A0049903112
BOLT. SCREW INTERMEDIATE BEARING TO FRAME
55
N910105012021
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
57
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
60
A9034110040
BRACKET PROPELLER SHAFT RETAINING STRAP
60
A9014110740
REBOUND STRAP
65
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
