Mercedes A0008325723 - Шланг

414,408CDI,411CDI,413CDI,416CDI 904.662 FROM IDENT-NR. R337627, 5337627, A901274

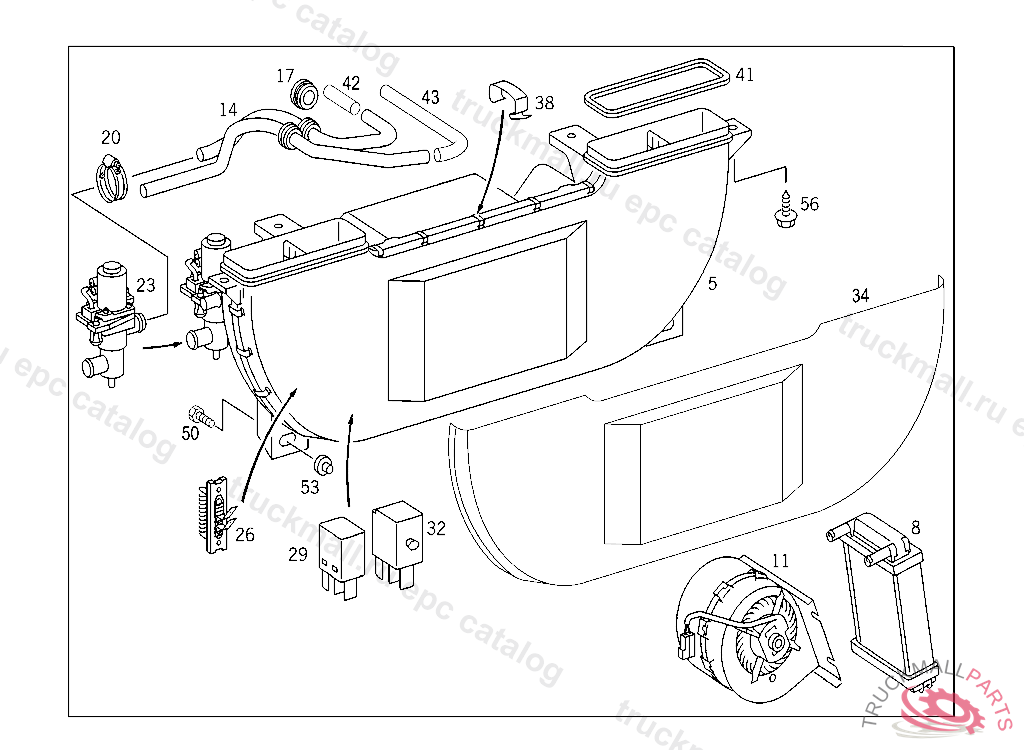

83 HEATING/VENTILATION - 130 HEAT EXCHANGER IL. 1

Поз.
Артикул
Описание
5
A9018300361
HEAT EXCHANGER
8
A0038353501
HEAT EXCHANGER
11
A0028303108
BLOWER
14
A0038309515
PIPE LINE
17
A0099976081
GROMMET
20
A0069970390
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
23
A0028304184
VALVE
26
A0018214960
RESISTOR
29
A0055451005
RELAY
32
A0035420219
RELAY HEADLAMP WIPER/WASHER, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
32
A0025421219
RELAY , Replaced By: A0045452905
32
A0045452905
RELAY HEADLAMP WIPER/WASHER, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806, Replaced By: A0035420219
34
A0008360438
COVER
38
A0008353134
SPRING
41
A0018351498
SEAL
42
A0008325623
HOSE
43
A0008325723
HOSE
50
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
50
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
53
N913024006100
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
53
N913010006106
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
56
N000000001022
TAPPING SCREW BRACKET MOUNTING 6.3X13
