Mercedes
VAN
414,408CDI,411CDI,413CDI,416CDI
904.662 FROM IDENT-NR. R337627, 5337627, A901274
72 FRONT DOORS
332 RIGHT OUTSIDE REARVIEW MIRROR

Mercedes A9018100519 - ЗЕРКАЛО

414,408CDI,411CDI,413CDI,416CDI 904.662 FROM IDENT-NR. R337627, 5337627, A901274

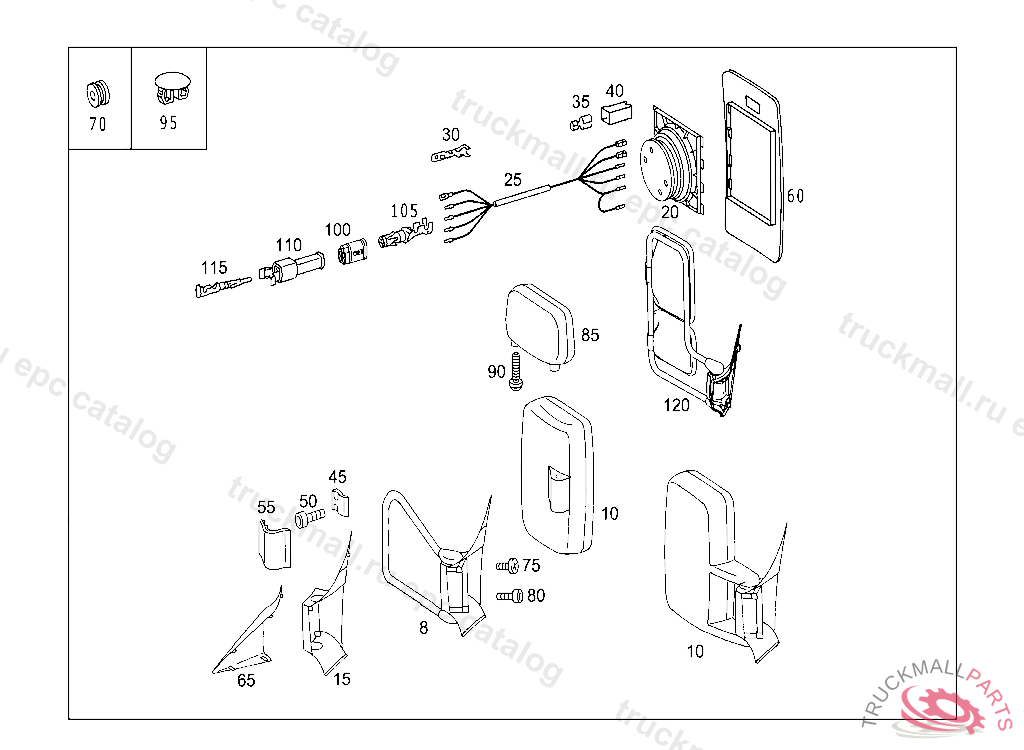

72 FRONT DOORS - 332 RIGHT OUTSIDE REARVIEW MIRROR

Поз.
Артикул
Описание
8
A0018116014
BRACKET OUTSIDE REARVIEW MIRROR, TO BE ADAPTED DURING ASSEMBLY
8
A0018116214
BRACKET OUTSIDE REARVIEW MIRROR
10
A0008115130
MIRROR OTR MIRROR BODY
10
A0008115730
MIRROR OTR MIRROR BODY 2330 - 2400 MM (CODE-B:FS2)
10
A0008115630
MIRROR OTR MIRROR BODY
10
A0008115530
MIRROR OTR MIRROR BODY
10
A0008115430
MIRROR OTR MIRROR BODY
10
A0008115030
MIRROR OTR MIRROR BODY
15
A9018110307
COVERING. COVER
20
A0058202842
ELECTRIC MOTOR REARVIEW MIRROR ADJUSTMENT
25
A0038205915
EL. CABLE. ELECTRIC CABLE
25
A0038209915
ELECTRIC CABLE. EL. CABLE
30
A0195455628
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
35
A0135457426
CONTACT SPRING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
40
A0135453226
PIN BUSHING HOUSING UNIPOLAR
45
A0008110839
CLIP OUTSIDE REARVIEW MIRROR TO BRACKET
50
N000000003358
HEXALOBULAR BOLTM6X25
55
A0008110818
CAP
60
A0018108216
MIRROR GLASS
60
A0018110433
MIRROR GLASS ARCHED RIGHT
60
A0018108316
MIRROR GLASS
60
A9018110233
MIRROR GLASS FLAT, LEFT
60
A0018115233
MIRROR GLASS ASPHERICALLY CURVED,RIGHT
65
A9018110107
COVERING. COVER
70
A0009973381
GROMMET LINE MOUNTING 16/11 MM
70
A0009972881
GROMMET ,D 314239
75
N000000002575
HEXALOBULAR BOLT MOUNTING PARTS M8X16
80
A0009847729
SCREW HINGE TO DOOR
80
N007984008008
SCREW PLATE TO TRANSMISSION CASE
85
A9018101193
MIRROR WIDE ANGLE REARVIEW MIRROR
90
A0008260671
SCREW. BOLT
95
A6739971986
PLUG
100
A0145458726
PLUG HOUSING 5-POLE
105
A0145459026
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.75-1.5 MM2
110
A0375454528
PIN BUSHING HOUSINGTO A 000 820 19 08
115
A0385454128
PLUG PINTO A 000 820 19 08
120
A9018100619
MIRROR RUSSET BROWN
120
A9018100519
MIRROR BLACK
