Mercedes A9019900192 - Клипса

414,408CDI,411CDI,413CDI,416CDI 904.662 FROM IDENT-NR. R337627, 5337627, A901274

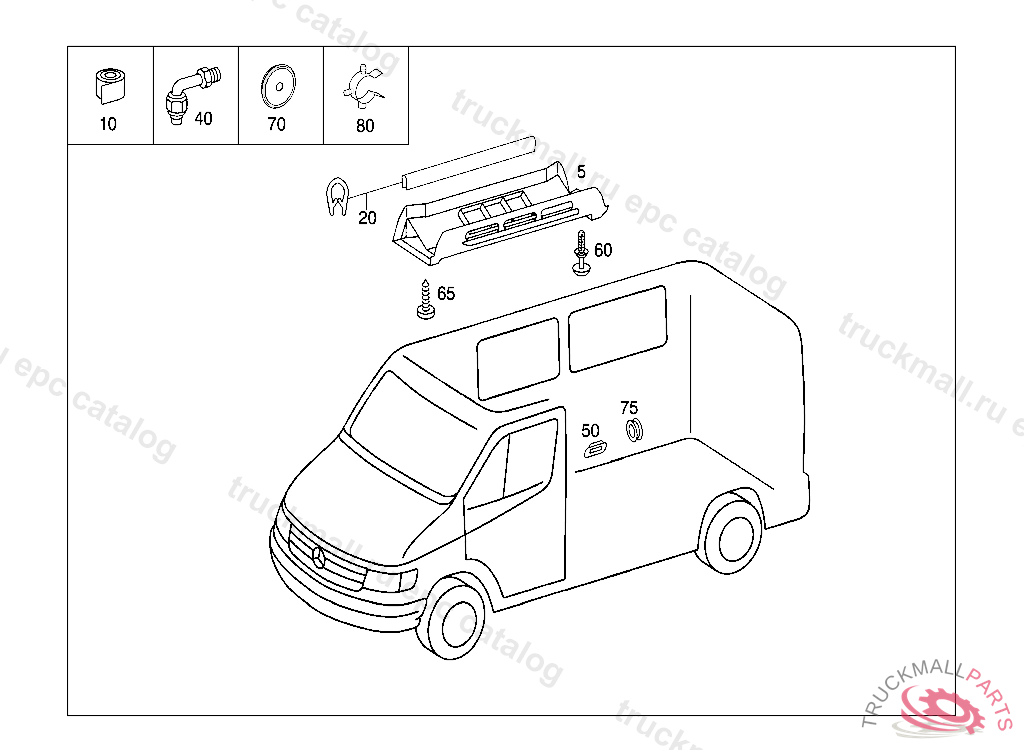

69 SIDE PANELLING/HEADLINER/ATTACHMENT - 100 INNER PANELING, ROOF, LOW ROOF

Поз.
Артикул
Описание
5
A6908307046
AIR DUCT REAR PART
10
A6908317096
INSULATION , ORDER BY THE METER
20
A0019872272
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
20
A0028350447
FILTER MAT
20
A0018350647
FILTER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. R 63356620040227563356620040227, Replaced By: A0028350447
40
A6908320125
PIPE SOCKET ,A 501958
50
A6908317098
SEAL AIR DUCT TO BODY
50
A0029891398
SEALING STRIP
60
A3819900392
RIVET COVERING TO BODY
60
A9019900192
RIVET PANELLING TO ROOF RAIL
65
N007981004253
SHEET METAL SCREW SWITCH TO BRACKET
70
A9019870045
LOCKING CAP FLOOR ABOVE REAR AXLE,TO FUEL GAUGE SENDER UNIT 80 MM
75
A1169970181
GROMMET
80
A0009956265
HOSE BRACKET FEED LINE AND RETURN LINE 23-30 MM
