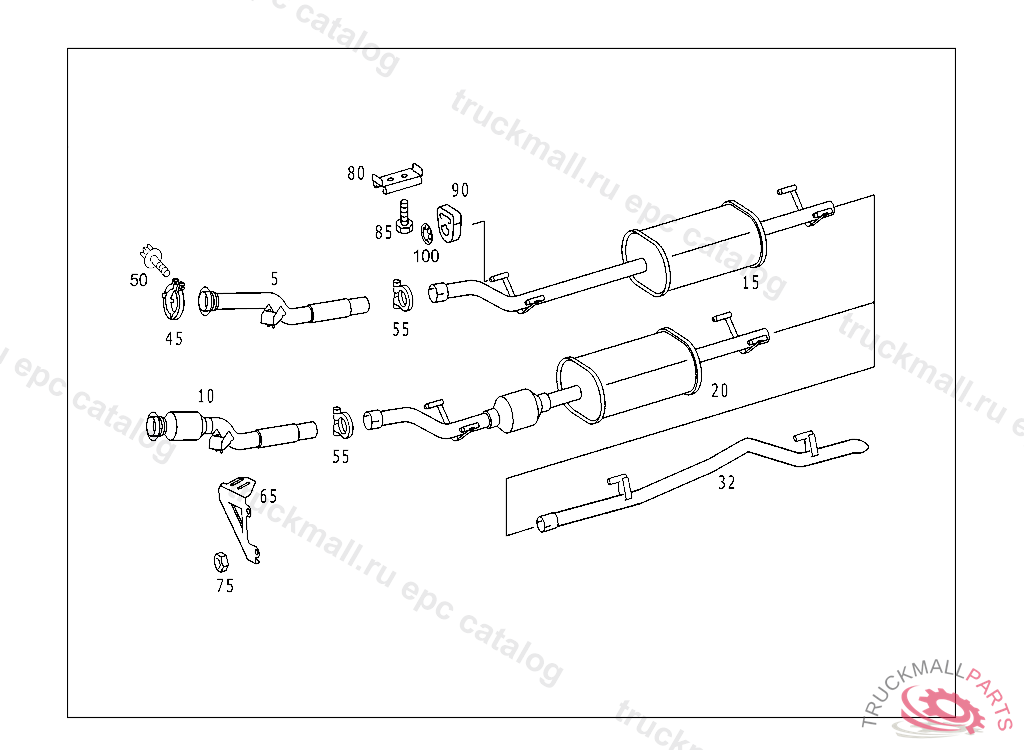

Mercedes A6904907719 -

5

EXHAUST PIPE

5

EXHAUST PIPE

10

CATALYST. CATALYTIC CONVERTER ONLY FOR RETROFIT SYSTEM FOR DIESEL PARTICULATE REDUCTION, IMPORTANT! RATING FOR FINE DUST BADGE REMAINS UNCHANGED ON VEHICLES WITH TRUCK REGISTRATION. ON VEHICLES WITH TRUCK REGISTRATI ON (CODE 41), BE SURE TO NOTE SERVICE MARKETING LETTER SMB 45 - 2009.

15

EXHAUST PIPE , INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER TO BE ADAPTED DURING ASSEMBLY

20

EXHAUST PIPE , ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER

32

EXHAUST PIPE REAR/WHEELBASE: 3550 MM

32

EXHAUST PIPE

45

CLAMP CLAMP TO EXHAUST PIPE ABRACADEIRA TUBULAR

50

HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET

55

CLAMP REAR EXHAUST PIPE TO MUFFLER, TO BE PROCURED FROM MBA ONLY

55

PIPE CLAMP. CLAMP REPAIR SOLUTION

65

BRACKET BRACKET TO CYLINDER CRANKCASE

75

NUT , Replaced By: A1409900750

80

BRACKET REAR EXHAUST PIPE TO FRAME

85

SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET

90

SUSPENSION RING

90

SUSPENSION RING

100

SPRING NUT VALVE
