Поз.
Артикул
Описание

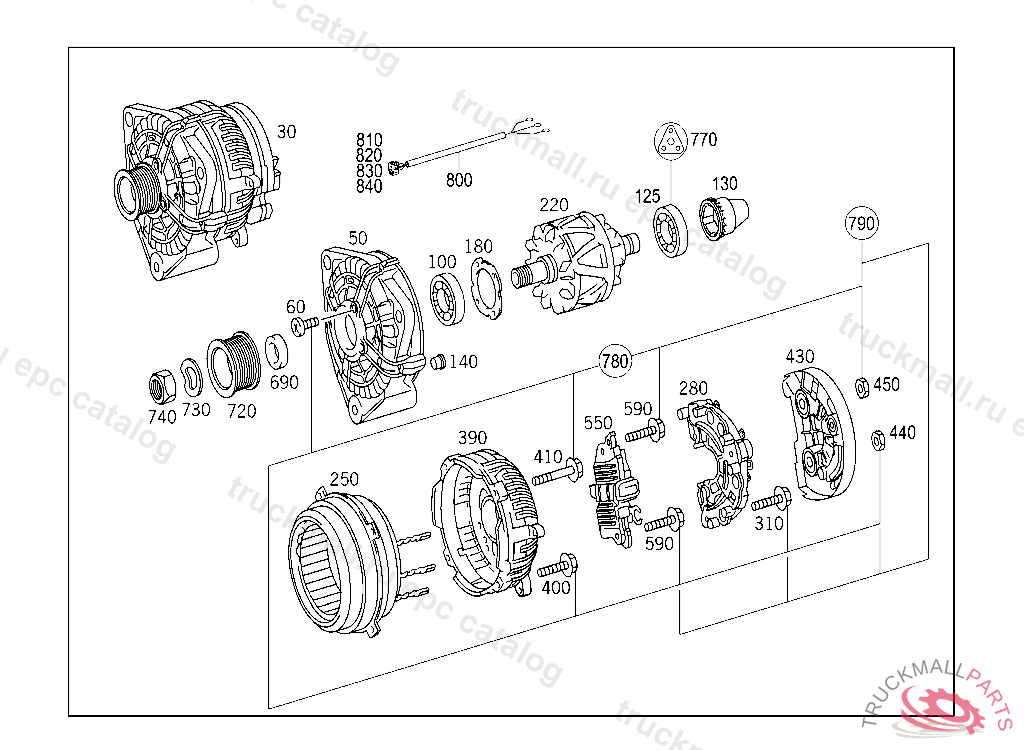

30
ALTERNATORFA.BOSCH, NCB1 28V/35-80A
30
ALTERNATORFA.BOSCH, NCB1 28V/80A
30
THREE-PHASE ALTERNATORREMY 18SI 28V-80A, NOT USED
30
ALTERNATOR ,*0350164 ORDER ADDITIONALLY: PARTS KIT BELT PULLEY A 000 150 01 60 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0121546802
30
ALTERNATORFA.BOSCH, NCB1 28V/35-80A, Replaced By: A0131545102
30
ALTERNATOR , Replaced By: A0131547802
30
ALTERNATOR , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART*0350164 ORDER ADDITIONALLY: PARTS KIT BELT PULLEY A 000 150 01 60, Replaced By: A0131544002
30
ALTERNATOR , Replaced By: A0001504650
50
BEARINGTO 013 154 50 02
60
SCREWTO A 013 154 78 02,
60
SCREWTO A 012 154 10 02
60
SCREW
100
BALL BEARING
125
BALL BEARINGTO A 013 154 51 02
125
BALL BEARINGTO A 000 150 46 50
125
BALL BEARINGTO 457 154 06 02
125
BALL BEARINGTO A 012 154 93 02
125
BALL BEARING REAR
130
RING
130
RINGTO A 376 154 03 02
140
COLLARED BUSHING. BUSHING
180
SPACER WASHER
220
ROTORTO A 000 150 46 50
220
ROTORTO 013 154 50 02
220
ROTORTO 000 150 37 50, Replaced By: A0001548415
250
COILTO 013 154 50 02
280
RECTIFIERTO 013 154 50 02
280
RECTIFIER , Replaced By: A0011544216
280
RECTIFIERBOSCH - TO A0141545302
310
SCREW RECTIFIER TO A 011 154 94 02, 92 02
310
SCREW
390
BEARINGTO 013 154 50 02
400
SCREW
400
SCREWTO A 013 154 78 02,
410
SCREW , Replaced By: A0009902003
410
BOLT. SCREW
410
SCREW
430
BOOTTO A 012 154 93 02
430
COVERTO 012 154 67 02/68 02
430
COVER
430
PROTECTIVE CAPTO 013 154 79 02 / 014 154 54 02, Replaced By: A0009989623
440
NUTTO A 000 150 42 50
440
NUT
450
NUT COVER TO A 011 154 94 02, 92 02
450
NUT , Replaced By: A0059903451
450
NUT BOOT M8,BOSCH
550
REGULATORTO 013 154 50 02
550
REGULATOR AND CUT-OUTTO A 012 154 93 02
590
SCREW REGULATOR AND CUT-OUT
590
SCREWTO A 013 154 78 02,
690
SPACER RING
720
PULLEY AT ALTERNATOR
720
PULLEYTO A 012 154 10 02
720
PULLEY
730
WASHER PULLEY TO ALTERNATOR
740
NUT BELT PULLEY TO GENERATOR TO A 011 154 35 02
740
NUT
770
GROOVED BALL BEARING , Replaced By: A0009805315
780
SCREW PARTS KIT TO 012 154 67 02/68 02, Replaced By: A0009905899
780
TS FASTENING PARTS KIT. ATTACHMENT PARTS KIT TO 013 154 79 02 / 014 154 54 02
790
SCREW PARTS KIT TO 012 154 67 02/68 02, Replaced By: A0009905899
800
CABLE HARNESS
810
GASKET BLUE 0.5-1.0 MM2
820
CAP , Replaced By: A0015455803, +001A0205451726
830
CONTACT SPRING , Replaced By: A0205451726, +001A0015455803
840
PIN BUSHING HOUSING DIAGNOSIS BOX
