Поз.
Артикул
Описание

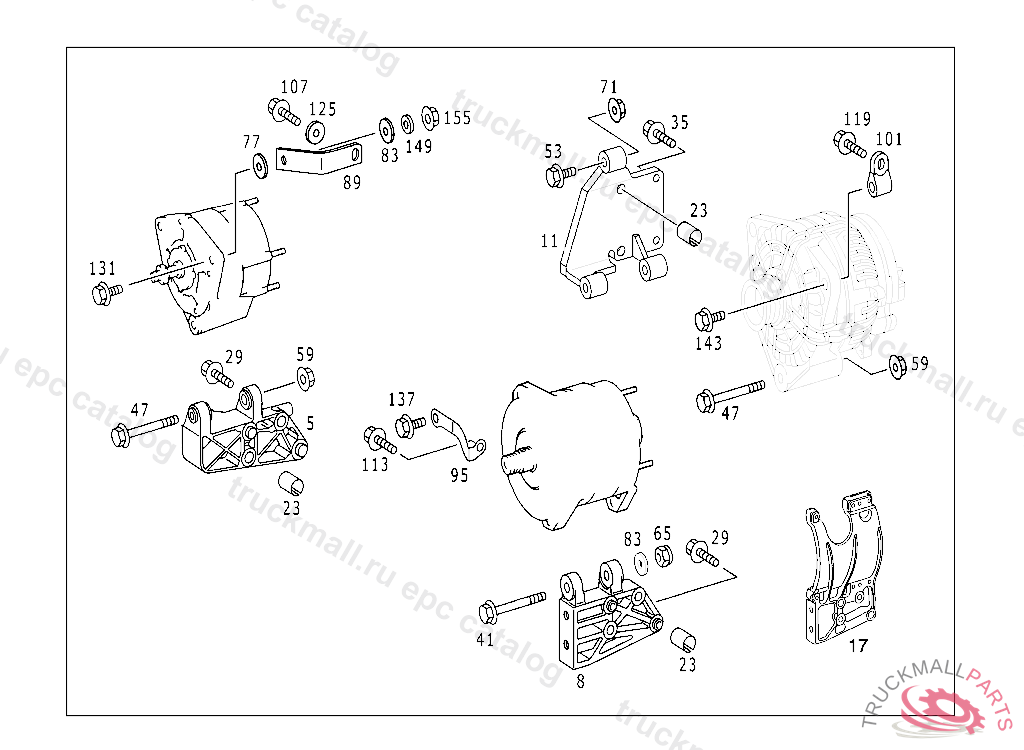

5
SUPPORT ALTERNATOR
8
SUPPORT ALTERNATOR
8
SUPPORT ,*0193151, Replaced By: A9061502770, +001A3441550072, +001A0069901701
23
CLAMPING SLEEVE
29
SCREW. HEXAGON HEAD BOLT BRACKET TO TRANSMISSION CASE M12X1.75X55
41
SCREW SUPPORT TO ALTERNATOR 156 MM,*0193152
41
SCREW SUPPORT TO ALTERNATOR 57 MM,*0193151
47
HEXAGON HEAD BOLT ALTERNATOR TO SUPPORT M10X130
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
65
NUT ALTERNATOR TO SUPPORT,*0193152
77
SPACER RING BETWEEN ALTERNATOR AND SUPPORT, FRONT
83
SPACER RING BETWEEN ALTERNATOR AND SUPPORT, REAR
83
SPACER RING BETWEEN INTAKE AIR HOUSING AND IGNITION COIL
89
BRACKET
95
BRACKET
107
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
113
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
125
SPACER RING
131
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
137
SCREW BRACKET TO TRANSMISSION, TO BE ADAPTED DURING ASSEMBLY
149
WASHER RADIATOR TO RUBBER MOUNTING
155
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
