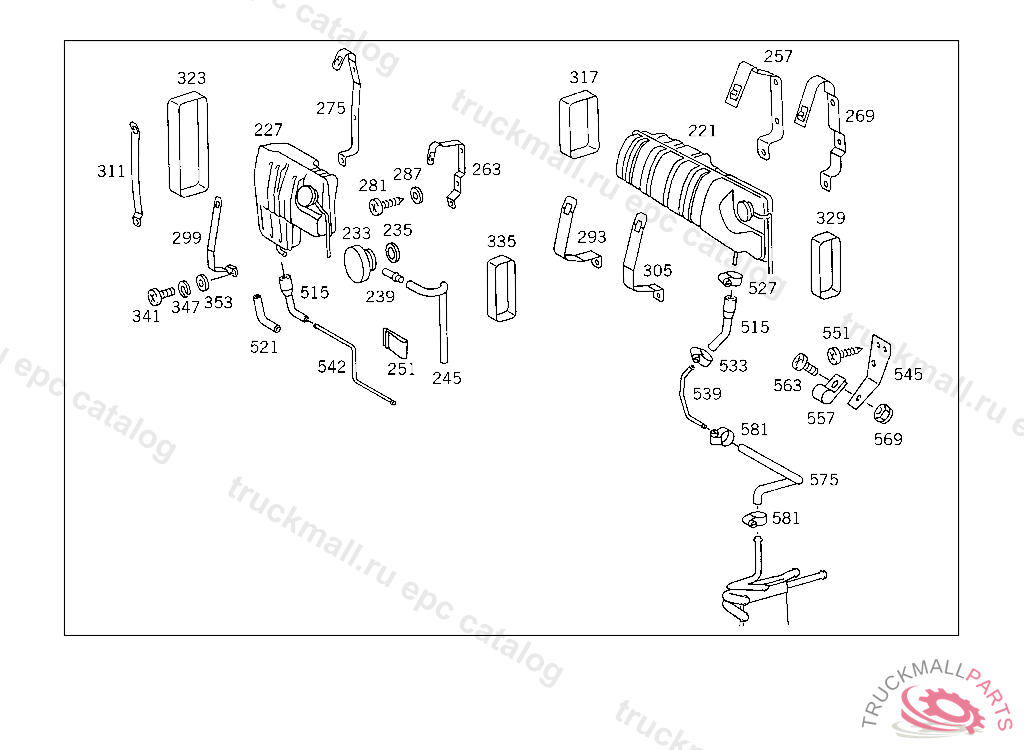

Поз.
Артикул
Описание
221
TANK (EXPANSION TANK)
227
TANK CAB,FRONT,5 129373
227
TANK ,5 129372, Replaced By: A6205000349, +001A6205012882, +001N916017020000
233
RADIATOR CAP
235
GASKET O.D., 37 MM
239
DRAIN PIPE EXPANSION TANK
239
DRAIN PIPE
245
HOSE
245
HOSE , Replaced By: A0219977682
245
HOSE OVERFLOW
251
CLIP CABLE HARNESS TO ROOF RAIL
257
BRACKET EXPANSION TANK
263
BRACKET EXPANSION TANK,LEFT
269
BRACKET EXPANSION TANK
275
BRACKET EXPANSION TANK,RIGHT
281
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
287
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
293
STRAP EXPANSION TANK TO BRACKET
299
STRAP EXPANSION TANK,LEFT
305
STRAP EXPANSION TANK TO BRACKET
311
STRAP EXPANSION TANK,RIGHT
317
SHIM EXPANSION TANK TO BRACKET
323
SHIM EXPANSION TANK,LEFT
329
SHIM EXPANSION TANK TO BRACKET
335
SHIM EXPANSION TANK,RIGHT
341
SCREW , Replaced By: N000000001146
341
SCREW CLAMP MOUNTING M 6X16
347
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
353
WASHER , Replaced By: N009021006208
353
WASHER COMPRESSED AIR LINE TO BRACKET
515
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
515
HOSE , Replaced By: A6205012882
515
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
521
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
527
CLAMP , Replaced By: N000000000667
527
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
527
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
533
CLAMP , Replaced By: N916017011001
533
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
533
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
533
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
539
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
542
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
545
BRACKET DE-AERATION LINE TO CAB
551
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
557
CLAMP , Replaced By: A3604300143
557
CLAMP , Replaced By: N916016008200
557
CLAMP ,K 147121, Replaced By: N000000000319
563
SCREW , Replaced By: N000000001146
563
SCREW CLAMP MOUNTING M 6X16
569
NUT , Replaced By: N913004006001
569
NUT PUMP TO BRACKET
575
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
581
CLAMP , Replaced By: N916017011001
581
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
GASKET HEATING PIPE TO ENGINE
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SCREW SUPPORT TO FENDER
999
SCREW , Replaced By: A0099900101
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N000933008337
999
SCREW COVER PLATE TO BRACKET
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER , Replaced By: N000137008204
999
LINE HEATING AND BREATHING
999
HOSE HEATING PIPE TO RADIATOR
999
HOSE FROM FLANGE TO HEATING PIPE
999
HOSE FROM HEATING LINE TO HEATING LINE
999
HOSE ,5 071491, Replaced By: A6175012782, +001A6175001072, +001A6175060235
999
BREATHER PIPE , Replaced By: A6205010725
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
999
CLAMP FEED LINE TO THERMOSTAT
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
