Поз.
Артикул
Описание

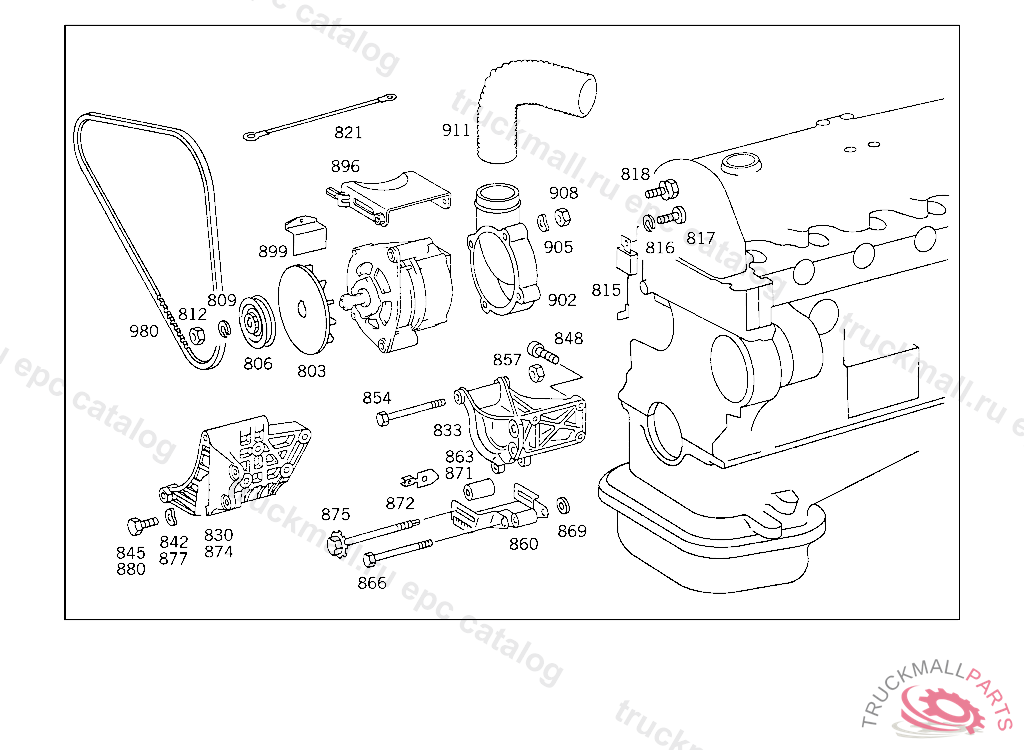

803
FANTO 006 154 55 02, 116.963 018679 117.963 014830
806
PULLEY
806
PULLEYTO 006 154 55 02, 116.963 018679 117.963 014830
809
LOCK WASHERROCKINGER TYP 59 G140,59 G150
812
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
812
NUT , Replaced By: N308675016001
815
CONDENSER , Replaced By: A0011566901
815
CONDENSER , Replaced By: A0011566901
815
CONDENSERTO 004 154 75 02
815
CONDENSER THREE-PHASE ALTERNATOR INTERFERENCE SUPPRESSION
815
CONDENSER
816
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
817
SCREW
818
COMBINATION BOLT BRACKET TO STEERING COLUMN END
821
GROUND CABLE FROM ALTERNATOR TO GROUND
830
SUPPORT ALTERNATOR
830
SUPPORT ALTERNATOR
833
SUPPORT ALTERNATOR
842
SPRING WASHER , Replaced By: N000137008212
842
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
845
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
845
SCREW PIPE CLAMP
845
SCREW FRONT AXLE REGULATING SOLENOID VALVE
845
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
845
SCREW , Replaced By: N304014008007
845
SCREW , Replaced By: N304017008027
845
SCREW , Replaced By: N304017008021
845
SCREW , Replaced By: N304014008001
845
SCREWM 10X20,TO 444 250 00 01
848
SCREWM 10X20,TO 444 250 00 01
854
SCREW CLAMPING BOLT TO ALTERNATOR
854
SCREW CLUTCH TO FLYWHEEL
854
SCREW CLUTCH TO FLYWHEEL
857
NUT BRACKET TO SUPPORT AND TO END PIECE
857
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
857
NUT , Replaced By: N913023010002
860
BRACKET ALTERNATOR READJUSTMENT
860
BRACKET ALTERNATOR READJUSTMENT
863
SPACER TUBE BRACKET TO ALTERNATOR SUPPORT
863
SPACER TUBE BRACKET TO ALTERNATOR SUPPORT
866
SCREW , Replaced By: N910105010017
866
SCREW FRONT AXLE REGULATING SOLENOID VALVE
866
SCREW , Replaced By: N000933008134
866
SCREW MOUNTING AND RAIL TO LEAF SPRING
869
WASHER , Replaced By: N000125010532
869
WASHER BRACKET TO CROSS MEMBER
869
WASHER RADIATOR TO RUBBER MOUNTING
871
SPACER TUBE ALTERNATOR
872
BRACKET CYLINDER CRANKCASE, 926 10/50,20/60 003923 926 12/52,22/62 007879 989 10/50,20/60 005739 989 12/52,22/62 032307
874
SUPPORT SUPPORT TO ALTERNATOR,BOTTOM
874
SUPPORT ALTERNATOR
874
SUPPORT SUPPORT TO ALTERNATOR,TOP
875
CLAMPING BOLT ALTERNATOR READJUSTMENT
875
CLAMPING BOLT , Replaced By: A1101500972
877
SPRING WASHER , Replaced By: N000137008212
877
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
880
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
880
SCREW PIPE CLAMP
880
SCREW VALVE TO BRACKET, Replaced By: N304014008002
880
SCREW , Replaced By: N304017008021
880
SCREW , Replaced By: N304014008001
880
SCREW VALVE TO BRACKET
896
BRACKET
899
COVER PLATE
902
COVER (AIR INTAKE COVER)
905
SPRING WASHER ALTERNATOR CONNECTION D+
908
NUT TACHOGRAPH TO BRACKET
911
HOSE INSULATING HOSE, LENGTH AVAILABLE:1000 MM
911
HOSE , Replaced By: A0001541386
980
V-BELT , Replaced By: A0049977792
980
V-BELT , Replaced By: A0049978792
980
V-BELT , Replaced By: A0069973292
980
V-BELT , Replaced By: A0119970492
980
V-BELT , Replaced By: A0119970492
980
V-BELT12.5X1050
980
V-BELT12.5X1030
980
V-BELT9.5X935
980
V-BELT12,5X1040
980
V-BELT WATER PUMP AND ALTERNATOR 12.5X1000
980
V-BELT9,5 X 965
980
V-BELT
980
V-BELT21.36X2330
980
V-BELT21.36X2245
999
SPRINGTO 007 154 58 02
999
RECTIFIER
999
RECTIFIER
999
RECTIFIERTO 008 154 52 02, NOT USED
999
PULLEY
999
PULLEY
999
PULLEY
999
FAN
999
FANTO 007 154 60 02
999
LOCKING CAP
999
LOOM TIE , Replaced By: A0019978390
999
ALTERNATOR70 A, NOT USED
999
CLAMPING BOLT ALTERNATOR READJUSTMENT
999
WASHER PULLEY TO VIBRATION ABSORBER
999
COVER (AIR INTAKE COVER)
999
HOSE AIR INTAKE COVER TO ALTERNATOR
999
SUPPORT
999
BRACKET
999
PULLEY , NOT USED
999
LINE HEATING WATER RETURN, 103.940 10/50,20/60 016911 103.940 12/52,22/62 035731 103.983 10/50,20/60 018292 103.983 12/52,22/62 094338
999
LINE HEATING WATER RETURN, 103.940 10/50,20/60 016912 103.940 12/52,22/62 035732 103.983 10/50,20/60 018293 103.983 12/52,22/62 094339
999
SCREW BOTTOM BRACKET TO ALTERNATOR AND TO SUPPORT
999
SPACER TUBE GROUND CABLE TO ALTERNATOR
999
REINFORCEMENT GENERATOR SUPPORT
999
BUSHING ALTERNATOR
999
SPACER WASHER , NOT USED
999
SUPPORT ALTERNATOR, NOT USED
999
SUPPORT , NOT USED
999
CABLE RUN , NOT USED
999
GROUND CABLE ALTERNATOR TO SUPPORT
999
BELT TIGHTENER BELT TIGHTENER PULLEY
999
COVER TIGHTENER PULLEY SA 22400
999
SPACER TUBE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
GROOVED BALL BEARING SLIP RING SIDE
999
SCREW PLUG HEATING CONNECTION LOCK
999
SCREW VALVE TO CAB M 8X85
999
SCREW , Replaced By: N304014008007
999
SCREW , Replaced By: N304014008018
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW , Replaced By: N304017008030
999
SCREW , Replaced By: N304017008034
999
NUT BALL PIVOT TO LEVER
999
NUT , Replaced By: N304032008006
999
NUT
999
WOODRUFF KEY
999
SCREW SHEAVE PULLEY TO BRACKET M8X40
999
SCREW , Replaced By: N304017010053
999
SCREW PIPE ELBOW TO BRACKET M 10X50
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
COMBINATION BOLT CONTROL UNIT TO BRACKET
999
SCREW , NOT USED
999
SCREW , NOT USED
999
CLAMP , Replaced By: A0069972790
