Поз.
Артикул
Описание

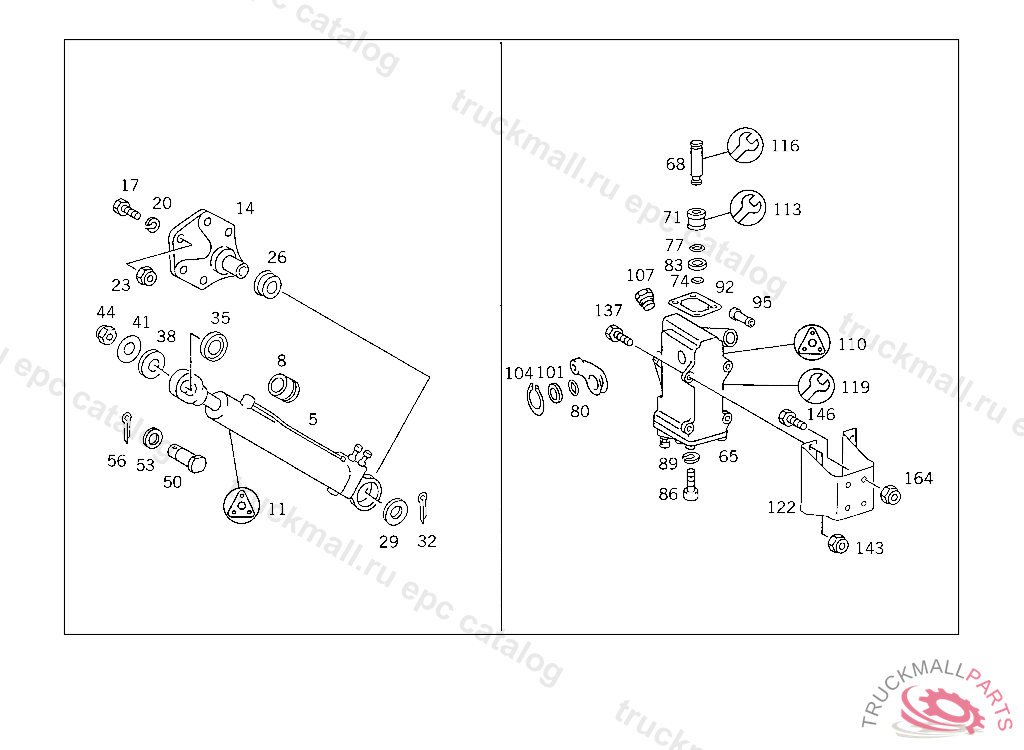

5
CYLINDER , Replaced By: A0015533605
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER,4 733732
5
CYLINDER , Replaced By: A0015533505
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
5
CYLINDER , Replaced By: A0015533605
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER,4 733732
5
CYLINDER , Replaced By: A0015539505
5
CYLINDER , Replaced By: A0015533505
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
5
CYLINDER , Replaced By: A0015534205
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
5
CYLINDER , Replaced By: A0015534205, +001A0005537901
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
8
GUIDETO 001 553 49 05
8
GUIDEWEBER
11
REPAIR KIT , Replaced By: A0005501535
11
GUIDE , Replaced By: A0015534905
11
GASKET KIT HYDRAULIC CYLINDER TO 000 553 03 05,000 553 18 05,
11
GASKET KIT HYDRAULIC CYLINDER WEBER
11
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
11
REPAIR KIT , Replaced By: A0005501235
11
GUIDE , Replaced By: A0015535105
11
GASKET KIT , Replaced By: A0015535005
11
GASKET KIT HYDRAULIC CYLINDER WEBER
11
GASKET KIT HYDRAULIC CYLINDER POWER PACK
11
GASKET KIT HYDRAULIC CYLINDER HUNGER
14
BEARING BRACKET HYDRAULIC CYLINDER
14
BEARING BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3875530938
17
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
17
SCREW , Replaced By: N000961012051
17
SCREW BEARING BRACKET TO FRAME
17
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
17
SCREW , Replaced By: N308676014003
17
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
20
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
20
LOCK WASHER FITTING TO BRACKET
23
NUT END PIECE TO EXHAUST PIPE
23
NUT , Replaced By: N910113014000
23
NUT STEERING SUPPORT TO FRAME
26
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
29
WASHER HYDRAULIC CYLINDER TO CAB
32
COTTER PIN6,3X36 MM
35
WASHER HYDRAULIC CYLINDER TO CAB
38
WASHER HYDRAULIC CYLINDER TO CAB
41
WASHER HYDRAULIC CYLINDER TO CAB
44
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
44
NUT COMBINATION CYLINDER TO BEARING BRACKET
50
PIN HYDRAULIC CYLINDER TO SWIVEL ARM
50
PIN HYDRAULIC CYLINDER TO SWIVEL ARM POWER-PACKER,65 MM, TO BE USED ONLY ON POWER-PACKER CYLINDER WITH 51-MM-WIDE YOKE
53
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
56
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
65
PUMP , Replaced By: A0005537901
65
PUMP (HAND PUMP) WEBER
65
PUMP , Replaced By: A0005536501
65
PUMP (HAND PUMP) POWER PACKER,4 733732
65
PUMP (HAND PUMP) POWER PACKER,4 733732
65
PUMP (HAND PUMP) POWER PACKER,4 733732
65
PUMP , Replaced By: A0005536801
65
PUMP , Replaced By: A0005537901, +001A0015534205
65
PUMP (HAND PUMP) WEBER
68
PISTONTO 000 553 39 01,WEBER
68
PISTONTO 000 553 79 01,WEBER
71
VALVETO 000 553 23 01,000 553 37 01,
71
VALVETO 000 553 39 01,WEBER
71
VALVETO 000 553 79 01,WEBER
74
SEAL RING8X1 MM,HUNGER,TO 000 553 43 01, MODEL 416/417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB
77
SEAL RING PISTON TO 000 553 43 01
80
SEAL RING19X3 MM,HUNGER,TO 000 553 43 01, MODEL 416/417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB
83
SEAL RING19X3 MM,SAUER/HUNGER,TO 000 553 43 01, MODEL 416/417 FOR USE WITH MEDIUM-LENGTH MERCEDES-BENZ CAB
86
SCREW , Replaced By: N000000000190
86
SCREW
86
SCREW , Replaced By: N000912008201
86
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
86
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
92
GASKETHUNGER
95
FILTER
95
FILTERHUNGER
101
FITTED WASHER
104
LOCK RING
107
SCREW
107
SCREWTO 000 553 65 01,000 553 69 01,
107
SCREW OIL FILLING HUNGER
110
GASKET KIT , Replaced By: A0005502583
110
GASKET KIT HAND PUMP TO 000 553 37 01,000 553 39 01,WEBER
110
GASKET KIT HAND PUMP
110
GASKET KIT HAND PUMP TO 000 553 68 01
113
REPAIR KIT VALVE TO 000 553 54 01,POWER-PACKER,4 733732
116
REPAIR KIT PISTON TO 000 553 54 01,POWER-PACKER,4 733732
119
REPAIR KIT , Replaced By: A0005530880
119
REPAIR KIT , Replaced By: A0005502355
119
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
122
BRACKET HAND PUMP
137
SCREW , Replaced By: N304017010002
137
SCREW BRACKET TO SIDE MEMBER
143
NUT , Replaced By: N910113010000
143
NUT STRAP TO BRACKET
146
SCREW , Replaced By: N308676014020
146
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
164
NUT , Replaced By: N910113014001
164
NUT BRACKET TO SIDE MEMBER
999
SCREW OIL FILLING TO 000 553 89 01
999
FITTING
999
FITTINGWEBER,TO 001 553 35 05
