Поз.
Артикул
Описание

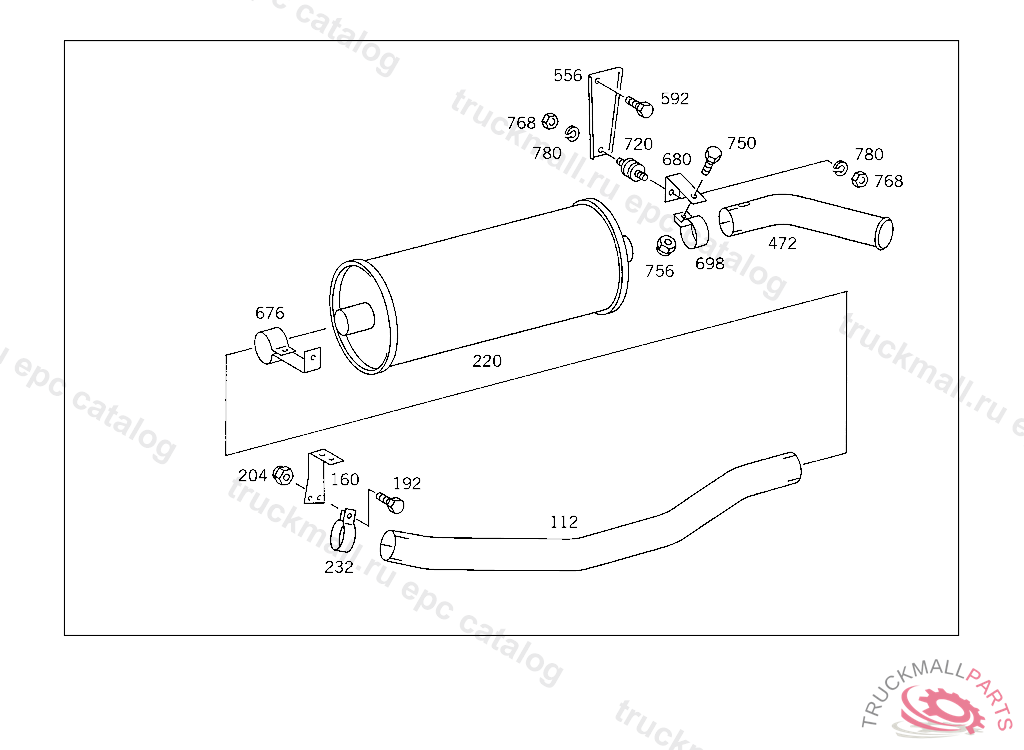

112
EXHAUST PIPE FRONT,REAR PART
112
EXHAUST PIPE FRONT
160
BRACKET TAIL PIPE
192
SCREW , Replaced By: N304017010002
192
SCREW BRACKET TO SIDE MEMBER
204
NUT , Replaced By: N910113010000
204
NUT STRAP TO BRACKET
220
EXHAUST MUFFLER
232
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
232
CLAMP , Replaced By: N071555094502
232
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
472
REAR EXHAUST PIPE
556
SUPPORT TAIL PIPE
592
SCREW , Replaced By: N304017008034
592
SCREW BRACKET TO CROSS CONNECTION STRUT
676
BRACKET , Replaced By: A3834927941
676
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
680
BRACKET , Replaced By: A3604923541
680
BRACKET REAR EXHAUST PIPE,5 193595
698
CLAMP , Replaced By: N071555094502
698
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
720
RUBBER BUFFER BRACKET TO SUPPORT
720
RUBBER BUFFER BRACKET TO SUPPORT
756
NUT STRAP TO BRACKET
756
NUT STRAP TO BRACKET
768
NUT BRACKET TO SUPPORT AND TO END PIECE
768
NUT BRACKET TO SUPPORT AND TO END PIECE
780
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
780
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
WASHER INTERMEDIATE SPEED STOP
999
THROTTLE HOUSING , Replaced By: A3661402253
999
THROTTLE HOUSING , Replaced By: A3661400853
999
BUSHING"WABCO"
999
PIN INTERMEDIATE SPEED STOP
999
SCREW EXHAUST PIPE TO BRACKET
999
BRACKET , Replaced By: A6504920241
999
EXHAUST PIPE FRONT,REAR PART,5 308040
999
EXHAUST PIPE FRONT,FRONT PART,5 308040
999
BRACKET TAIL PIPE
999
BRACKET EXHAUST PIPE
999
BRACKET TAIL PIPE
999
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
BRACKET FRONT EXHAUST PIPE
999
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
BRACKET FRONT EXHAUST PIPE,5 502998
999
BRACKET , Replaced By: A6764901040
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW , Replaced By: A4609900601
999
SCREW , Replaced By: N308676012012
999
NUT
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
