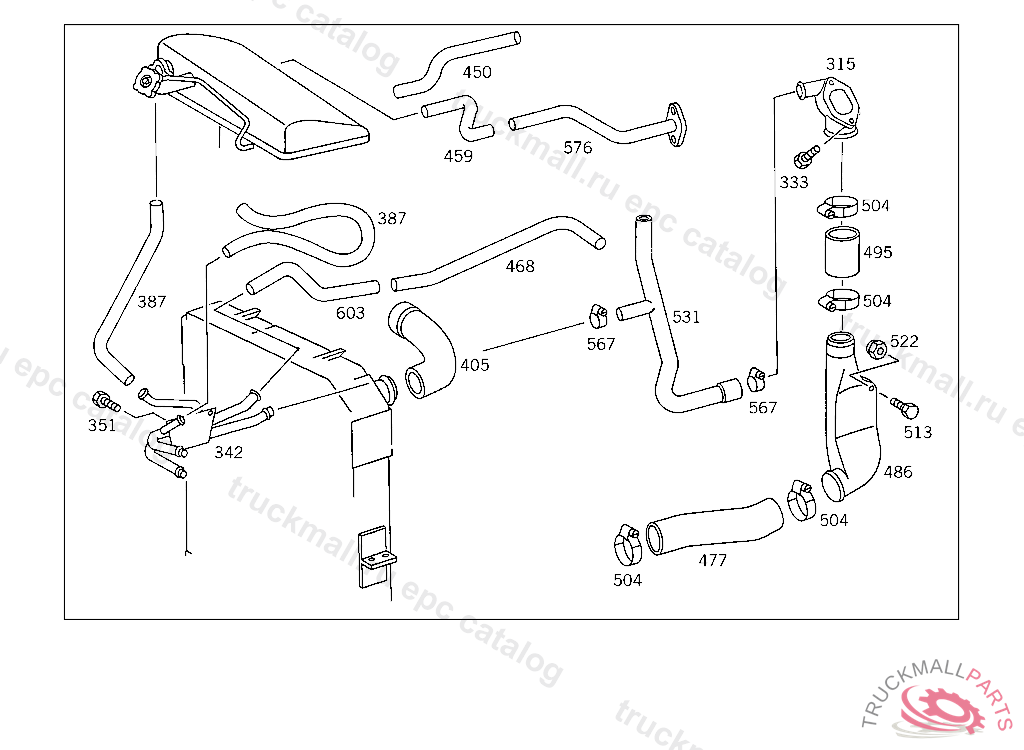

Поз.
Артикул
Описание
315
CONNECTOR , Replaced By: A6205010223
315
CONNECTOR AT WATER PUMP
333
SCREW END PIECE TO EXHAUST PIPE M 10X25
342
LINE , Replaced By: A6205002872
342
LINE HEATING AND BREATHING
351
SCREW PUMP TO BRACKET
351
SCREW , Replaced By: N304017006016
387
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
405
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
405
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
405
HOSE , Replaced By: A6175014982
405
HOSE FROM RADIATOR TO THERMOSTAT
405
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
405
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
405
HOSE , Replaced By: A6175014982
450
HOSE DE-AERATION, FROM ENGINE TO EXPANSION TANK
450
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
450
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
459
HOSE BETWEEN DE-AERATION LINE AND EXPANSION TANK
468
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
477
HOSE FROM RADIATOR OUTLET TO WATER PUMP
477
HOSE , Replaced By: A6555011282
486
PIPE ELBOW , Replaced By: A6555010756
486
PIPE ELBOW AT WATER PUMP,5 1935955 510517
486
PIPE ELBOW AT WATER PUMP,5 510518
486
PIPE ELBOW , Replaced By: A6205010556
495
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
504
CLAMP , Replaced By: N000000000674
504
CLAMP HOSE 70-90X13 MM
513
SCREW BRACKET TO FRAME SIDE MEMBER
513
SCREW , Replaced By: N304017010053
513
SCREW PIPE ELBOW TO BRACKET M 10X50
513
SCREW , Replaced By: N304017010030
522
NUT , Replaced By: N910113010000
522
NUT STRAP TO BRACKET
531
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
567
CLAMP
567
CLAMP , Replaced By: N000000000670
567
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
567
CLAMP , Replaced By: N000000000667
576
FLANGE FROM ENGINE TO EXPANSION TANK
603
HOSE FROM VALVE TO FEED LINE,K 004003
999
RADIATOR
999
CLAMP , Replaced By: N916017011000
999
RADIATOR"BEHR", NOT USED
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
NUT TURNBUCKLE
999
RADIATOR , Replaced By: A3815010801
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR ,4 428845
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
BRACKET RADIATOR MOUNTING,4 428844
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
CONNECTOR AT WATER PUMP
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
FLANGE ENGINE BREATHING
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO THERMOSTAT
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
