Поз.
Артикул
Описание

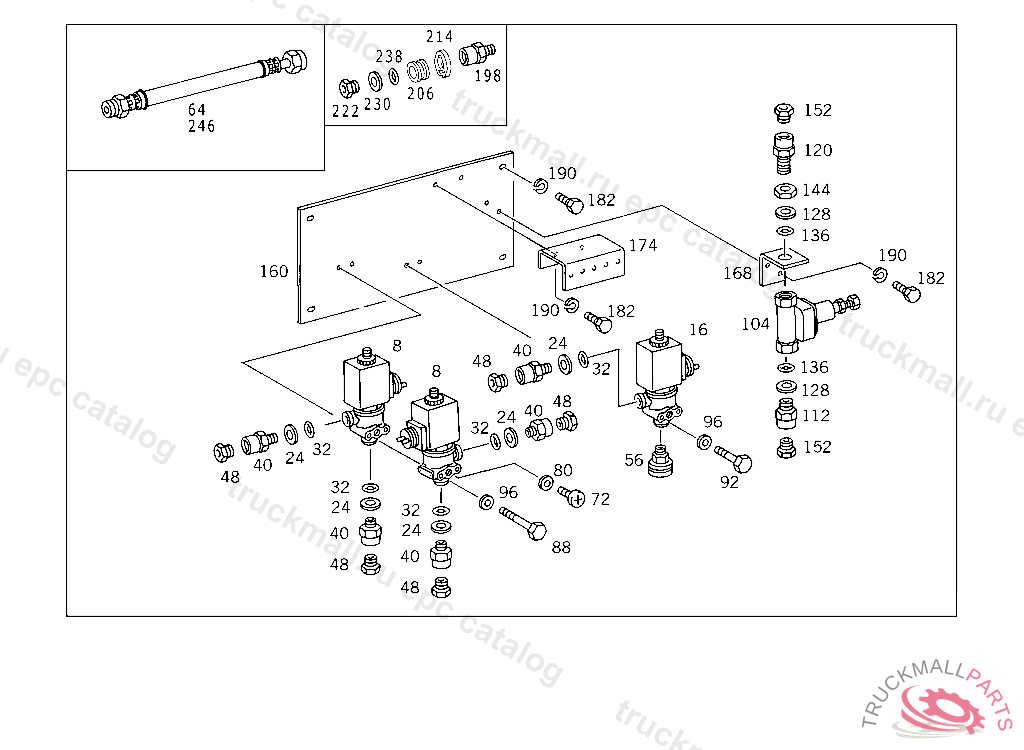

8
VALVE (THREE-/TWO-WAY SOLENOID VALVE) AXLE LOCK LEFT AND RIGHT, REPAIR IMPOSSIBLE
8
VALVE (3/2-WAY SOLENOID VALVE) EKS
8
VALVE (SOLENOID VALVE),078418
16
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
24
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
32
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
40
FITTING LINE CONNECTION
48
SCREW. UNION SCREW , Replaced By: A0009973734
48
SCREW. UNION SCREW LINE CONNECTION
56
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
64
BRAKE HOSE SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,LEFT
72
SCREW TO PLUG THE FREE CONNECTIONS
80
SEAL RINGBOSCH
88
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET M 8X95
92
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
96
WASHER EXHAUST MUFFLER TO STRAP
96
WASHER , Replaced By: N000125008443
104
VALVE (OVERFLOW VALVE)
112
FITTING CHECK VALVE
120
FITTING AIR RESERVOIR
120
FITTING LINE CONNECTION
128
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
136
O-RING CHECK VALVE TO AIR RESERVOIR
144
NUT CHECK VALVE TO AIR RESERVOIR
152
SCREW. UNION SCREW LINE CONNECTION
160
BRACKET TRAILING AXLE AIR SPRING VALVE
168
BRACKET SECONDARY CONSUMING UNITS
174
BRACKET DISTRIBUTOR
182
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
182
SCREW , Replaced By: N304017008016
190
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
198
FITTING LINE CONNECTION
206
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
214
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
222
SCREW. UNION SCREW LINE CONNECTION
230
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
238
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
246
BRAKE HOSE FROM RELAY VALVE TO TWO-WAY VALVE
