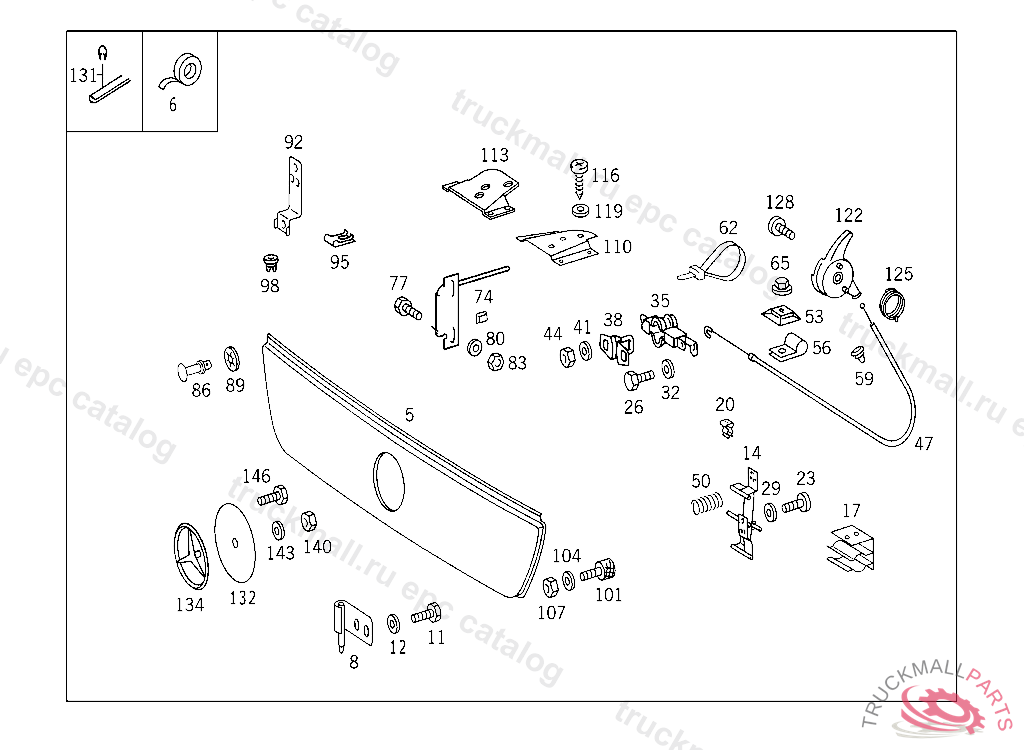

Поз.
Артикул
Описание
5
FLAP
5
FLAP PAINTED IN COLOR OF VEHICLE
5
FLAP , FROM IDENT NO. 085165 ALSO INSTALLED ON 080637,083620,083621,084073,084350,084353,084354,084355,084356,084635,084679,084951.
5
FLAP ,074600 XAO 475/92 N65,H 24564
6
ADHESIVE TAPE , ORDER BY THE METER
8
REINFORCEMENT LEFT
8
BRACKET LEFT,074601
8
BRACKET RIGHT
11
SCREW COVER PLATE TO COVER PLATE M 6 X 12
12
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
14
HINGE LEFT,074600 XAO 475/92 N65,H 24564
14
HINGE RIGHT,074600 XAO 475/92 N65,H 24564
17
ANGLE ,074600 XAO 475/92 N65,H 24564
20
CLIP BATTERY CASE
23
SCREW CLAMP TO BRACKET M 6X14
26
SCREW FUSE BOX TO SIDE MEMBER,5 097182
26
SCREW , Replaced By: N000000001933
29
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
WASHER BRACKET TO SUPPORT
35
ENGINE HOOD CATCH BOTTOM
38
ENGINE HOOD CATCH UPPER PART
41
WASHER COMPRESSED AIR LINE TO BRACKET
44
NUT BALL PIVOT TO LEVER
47
PULL
47
PULL ,074600 XAO 475/92 N65,H 24564
50
SPRING ,074600 XAO 475/92 N65,H 24564
53
PLATE LINE MOUNTING
56
CLAMP SENSOR CABLE TO FRONT AXLE
59
GROMMET WATER DRAIN IN SPARE WHEEL WELL
62
LOOM TIE LINE MOUNTING
65
NUT COVERING TO CAB FIRE WALL
74
RUBBER BUFFER FLAP TO LEVER, NO.8316INO.7C52INO.9051I I II I
77
SCREW BRACKET ON LOAD SENSOR
80
WASHER COVERING TO CAB
83
NUT L.H. THREAD
86
FASTENER FLAP TO BODY
86
FASTENER , Replaced By: A0019889442
89
LOCK BRACKET MOUNTING, Replaced By: N912010006000
89
LOCK , Replaced By: A0009940648
89
LOCK PLATE BRACKET MOUNTING
92
BRACKET FLAP TO BODY
95
FASTENER ,A 144703 AUSTRALIA UP TO END OF MODELYEAR 93
98
SLEEVE FLAP TO BODY
101
BUFFER (STOP BUFFER), UP TO IDENT NO. 085164 EXCEPT FOR 080637,083620,083621,084073,084350,084353,084354,084355,084356,084635,084679,084951.
104
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
107
NUT BALL PIVOT TO LEVER
110
BRACKET ,074600 XAO 475/92 N65,H 24564
113
BRACKET ,074600 XAO 475/92 N65,H 24564
116
TAPPING SCREW RING HALF TO STEERING WHEEL
119
WASHER BRACKET MOUNTING
122
HANDLE ENGINE HOOD UNLOCKING
125
SPRING ,074600 XAO 475/92 N65,H 24564
128
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
131
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
132
PAD
134
MERCEDES STAR
134
MERCEDES STAR PAINTED IN COLOR OF VEHICLE
140
NUT L.H. THREAD
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
146
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
LEVER LEFT, NOT USED
999
LEVER RIGHT, NOT USED
999
PLATE FLAP TO LEVER
