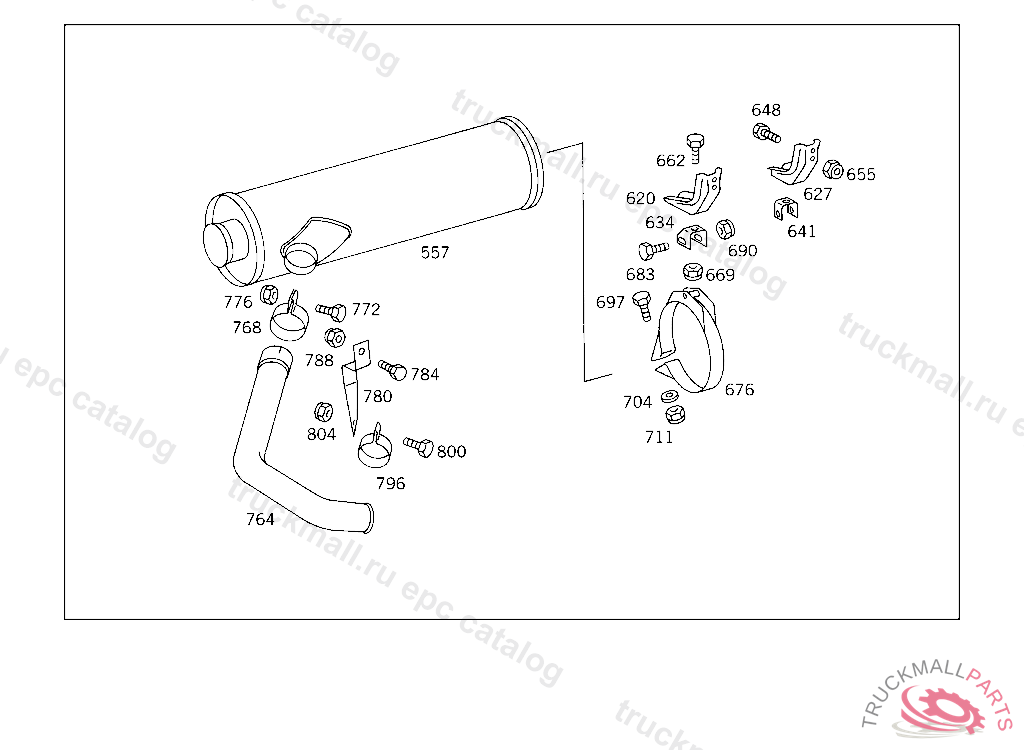

Поз.
Артикул
Описание
557
EXHAUST MUFFLER REAR,4 913284
557
EXHAUST MUFFLER
557
EXHAUST MUFFLER
557
EXHAUST MUFFLER
557
EXHAUST MUFFLER
557
EXHAUST MUFFLER REAR
557
EXHAUST MUFFLER REAR
557
EXHAUST MUFFLER REAR
620
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
620
CONSOLE REAR EXHAUST MUFFLER 178 MM
620
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
627
CONSOLE EXHAUST MUFFLER,FRONT
627
CONSOLE REAR EXHAUST MUFFLER 132 MM
627
CONSOLE REAR EXHAUST MUFFLER 126 MM
634
BRACKET AT SUPPORT
641
BRACKET EXHAUST MUFFLER
648
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
648
SCREW , Replaced By: N308676012012
655
NUT SUPPORT TO SIDE MEMBER
662
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
669
NUT STRAP TO BRACKET
669
NUT , Replaced By: N910113010000
676
STRAP EXHAUST MUFFLER TO BRACKET
676
STRAP , Replaced By: A6204900042
676
STRAP EXHAUST MUFFLER TO BRACKET
676
STRAP EXHAUST MUFFLER SUSPENSION
676
STRAP EXHAUST MUFFLER TO BRACKET
676
STRAP EXHAUST MUFFLER SUSPENSION
683
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
683
SCREW STRAP TO BRACKET
690
NUT STRAP TO BRACKET
690
NUT , Replaced By: N910113010000
697
SCREW STRAP TO BRACKET
704
WASHER , Replaced By: N000125008443
704
WASHER EXHAUST MUFFLER TO STRAP
711
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
711
NUT , Replaced By: N913004008001
764
REAR EXHAUST PIPE (TAIL PIPE),5 129244
768
CLAMP , Replaced By: N071555100501
768
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
772
SCREW , Replaced By: N304017008027
772
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
776
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
776
NUT , Replaced By: N913004008001
780
BRACKET EXHAUST PIPE TO SIDE MEMBER,5 129244
784
SCREW END PIECE TO EXHAUST PIPE M 12X30
784
SCREW , Replaced By: N304017012020
788
NUT END PIECE TO EXHAUST PIPE
796
CLAMP , Replaced By: N071555090502
796
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
800
SCREW , Replaced By: N304017008027
800
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
804
NUT , Replaced By: N913004008001
804
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
STRAP PARTICLE FILTER
999
BRACKET RIGHT EXHAUST PIPE,5 129244
999
BRACKET LEFT EXHAUST PIPE,5 129244
999
CLAMP EXHAUST PIPE TO BRACKET
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
CONNECTOR RIGHT FRONT,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
STRAP , Replaced By: A6554900942
999
EXHAUST MUFFLER LEFT AND RIGHT
999
BRACKET OIL LINE MOUNTING,5 129244
999
BRACKET RIGHT EXHAUST PIPE,4 836062
999
BRACKET LEFT EXHAUST PIPE,4 836062
999
CONNECTOR LEFT FRONT,5 129244
999
CONNECTOR RIGHT FRONT,5 129244
999
CONNECTOR LEFT,5 129244
999
CONNECTOR RIGHT,5 129244
999
CONNECTOR FRONT EXHAUST PIPE FRONT PART TO REAR PART,4 836062
999
CONNECTOR LEFT FRONT,5 129244
999
CONNECTOR LEFT
999
EXHAUST MUFFLER REAR
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
SUPPORT FRONT EXHAUST MUFFLER,5 193594
999
CLAMP FRONT EXHAUST PIPE TO BRACKET,5 129244
999
CONNECTOR RIGHT FRONT
999
CONNECTOR LEFT FRONT
