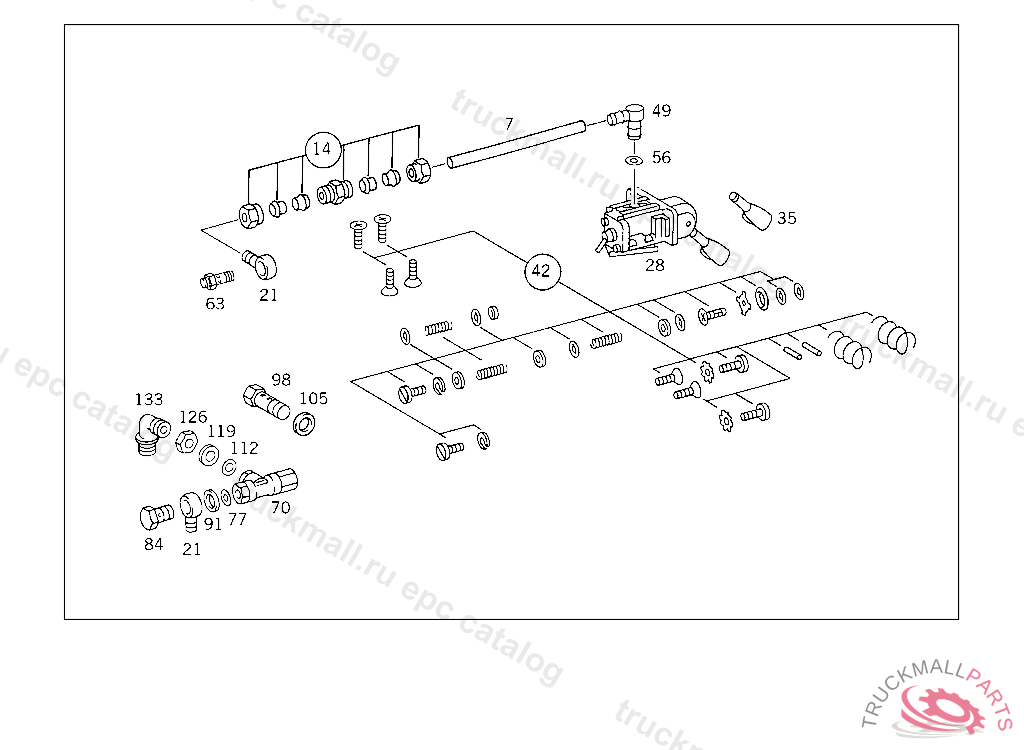

Поз.
Артикул
Описание
7
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
FITTING (PARTS KIT),LINE RUPTURE
14
FITTING , Replaced By: A0029905971
21
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
21
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
28
VALVE PARKING BRAKE WITH EMERGENCY RELEASE DEVICE AND TRAILER CONTROL WABCO
28
VALVE PARKING BRAKE
35
HANDLETO WABCO
42
REPAIR KIT , Replaced By: A0034303381
42
REPAIR KITTO 001 430 58 81/59 81,WABCO, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
42
REPAIR KIT , Replaced By: A0034303281
42
REPAIR KITTO WABCO
49
COUPLING FROM CHECK VALVE TO PARKING BRAKE VALVE
56
SEAL RING
63
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
70
VALVE (LOCKING VALVE) WABCO
70
VALVE (LOCKING VALVE) VOSS
77
SEAL RINGTO 003 429 46 44,WABCO
84
HOLLOW SCREW , Replaced By: N915036010108
84
HOLLOW SCREW FUEL LINE TO FEED PUMP
91
SEAL RING FUEL LINE TO FEED PUMP
98
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
105
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
112
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
112
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
119
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
119
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
126
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
126
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
133
ELBOW FITTING RELAY VALVE,CONNECTION: "20"
999
SLEEVE LINE CONNECTION
999
UNION NUT LINE CONNECTION
999
GLAND LINE CONNECTION
