Поз.
Артикул
Описание

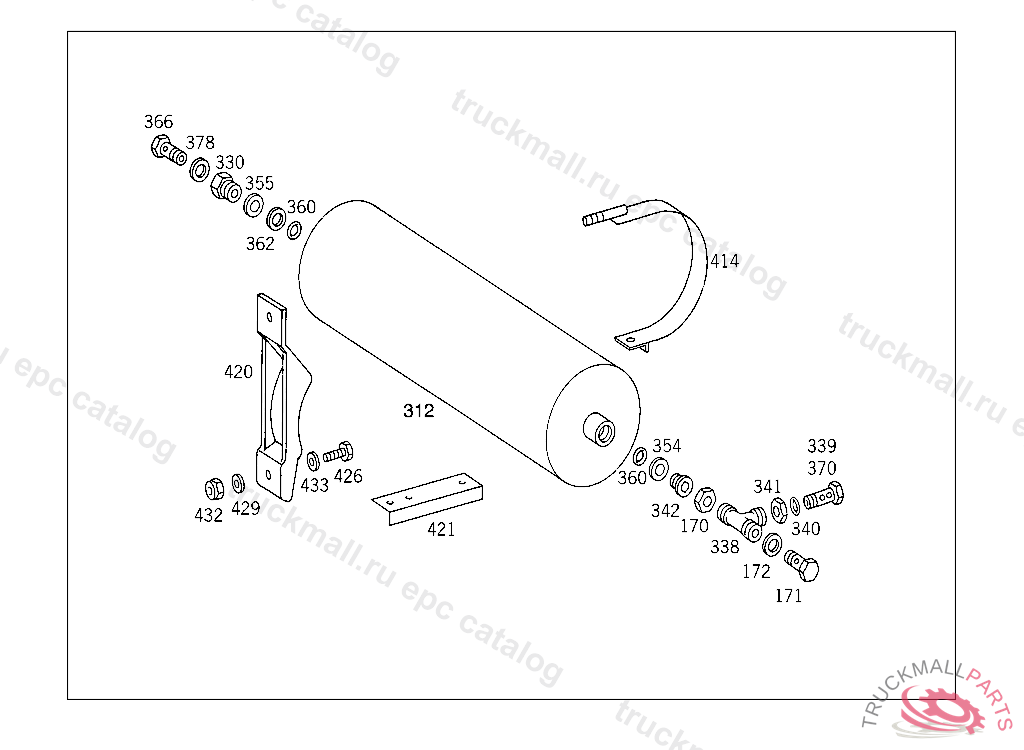

170
NUT CHECK VALVE TO AIR RESERVOIR
171
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
172
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
312
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
312
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
312
RESERVOIR ,5 934167, Replaced By: A0034320601
312
RESERVOIR ,5 9363655 812730, Replaced By: A0034320301, +001A0009970834, +001A0059977672
312
RESERVOIR , Replaced By: A0054322001, +001A0009870446, +001A0009940203, +001A0049978272
312
COMPRESSED AIR RESERVOIR. RESERVOIR6 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR:ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
330
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
330
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
330
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
330
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
338
T-FITTING OVERFLOW VALVE,CONNECTION: "12"
338
T-FITTING OVERFLOW VALVE,CONNECTION: "12"
339
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
339
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
340
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
341
NUT CHECK VALVE TO AIR RESERVOIR
342
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
342
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
342
SCREW PLUG , Replaced By: N000908012009
342
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
342
SCREW PLUG , Replaced By: N000908022011
354
SEAL RING AIR RESERVOIR,CONNECTION: "42",5 339168
354
THRUST RING CHECK VALVE TO AIR RESERVOIR
354
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
355
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
355
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
360
O-RING CHECK VALVE TO AIR RESERVOIR
362
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
366
HOLLOW SCREW HEATING CONNECTION
366
HOLLOW SCREW HEATING CONNECTION
366
HOLLOW SCREW HEATING CONNECTION
366
HOLLOW SCREW HEATING CONNECTION
366
HOLLOW SCREW HEATING CONNECTION
366
HOLLOW SCREW HEATING CONNECTION
366
HOLLOW SCREW HEATING CONNECTION
366
HOLLOW SCREW HEATING CONNECTION
366
HOLLOW SCREW HEATING CONNECTION
370
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
378
SEAL RING LINE CONNECTION
378
SEAL RING LINE CONNECTION
378
SEAL RING LINE CONNECTION
378
SEAL RING LINE CONNECTION
414
STRAP AIR RESERVOIR
414
STRAP AIR RESERVOIR
414
STRAP AIR RESERVOIR
414
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
414
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
414
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
414
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
414
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
420
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
420
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
420
BASE , Replaced By: A6454320118
421
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726045
421
BRACKET , Replaced By: A3834929041
426
SCREW , Replaced By: N304017008040
426
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
426
SCREW , Replaced By: N304017008034
426
SCREW SUPPORT TO FENDER
426
SCREW , Replaced By: N304017008021
426
SCREW BRACKET TO SIDE MEMBER
426
SCREW END PIECE TO EXHAUST PIPE M 10X25
426
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
426
SCREW PIPE CLAMP
426
SCREW , Replaced By: N304017008021
426
SCREW , Replaced By: N000933008337
426
SCREW , Replaced By: A0099900101
426
SCREW BRACKET TO CROSS CONNECTION STRUT
426
SCREW , Replaced By: N304017008018
426
SCREW BRACKET TO SIDE MEMBER
429
WASHER , Replaced By: N000125008443
429
WASHER EXHAUST MUFFLER TO STRAP
429
WASHER EXHAUST MUFFLER TO STRAP
432
NUT STRAP TO BRACKET
432
NUT STRAP TO BRACKET
432
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
432
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
432
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
432
NUT , Replaced By: N913004008001
432
NUT , Replaced By: N910113010000
433
WASHER , Replaced By: N000125008443
433
WASHER EXHAUST MUFFLER TO STRAP
999
STRAP AIR RESERVOIR III,5 088362
999
STRAP ANTI-FREEZE DEVICE
999
STRAP AIR RESERVOIR TO BRACKET
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
BRACKET AIR CLEANER
999
STRAP AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE
999
STRAP FRONT AIR RESERVOIR,RIGHT
999
BRACKET AIR RESERVOIR TO FRAME
999
STRAP AIR RESERVOIR TO BRACKET
999
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
999
RESERVOIR ,5 563826
999
RESERVOIR20L,246 MM,12.5 BAR
999
VALVE , Replaced By: A0024319106
999
T-FITTING PRESSURE RELIEF VALVE,CONNECTION: "10"
999
VALVE , Replaced By: A0034315006
999
RESERVOIR , Replaced By: A0024311602, +001A0004317833
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
FILTER , Replaced By: A0004291297
999
RESERVOIR ,5 934167, Replaced By: A0034321401
999
RESERVOIR , Replaced By: A0034321201
999
ANTI-FREEZE DEVICEWABCO
999
REPAIR KIT PRESSURE REGULATOR BOSCH,241
999
AIR CLEANER , Replaced By: A0004293695
999
AIR CLEANERBOSCH
999
CONNECTOR 90 DEG. OFFSET
999
FILTER ELEMENT , Replaced By: A0004293795
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
