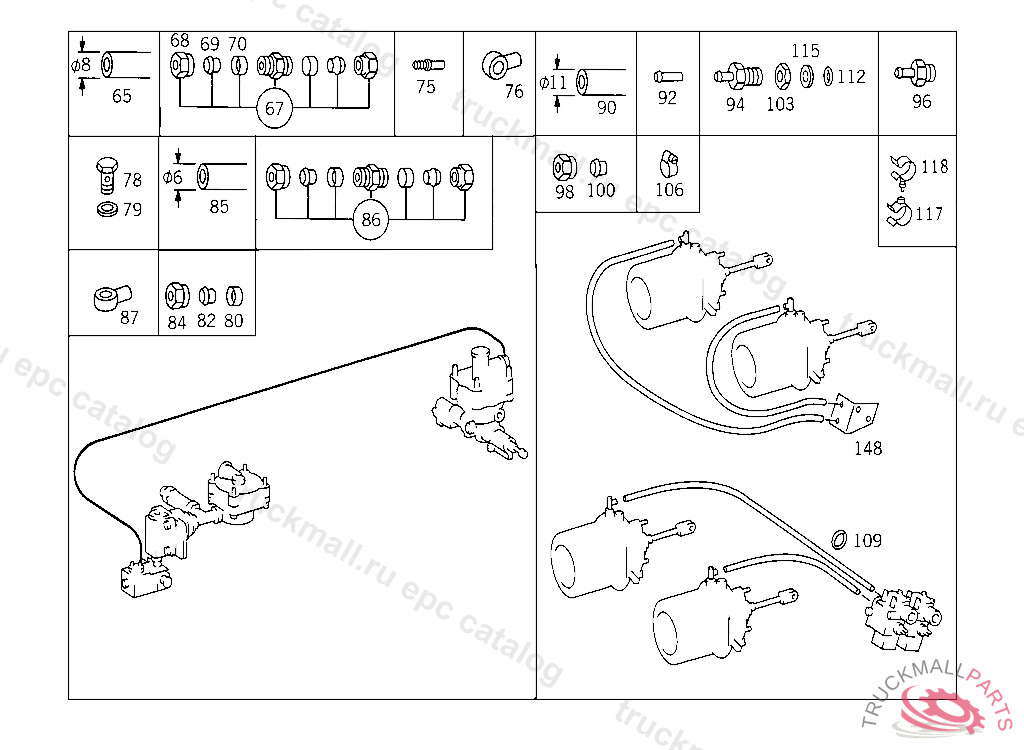

Поз.
Артикул
Описание
65
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
67
FITTING (PARTS KIT),LINE RUPTURE
67
FITTING , Replaced By: A0029905971
68
UNION NUT
69
SEAL CONE
69
GLAND , Replaced By: A0019901667
70
SLEEVE LINE CONNECTION
75
FITTING 3/2-WAY VALVE
75
FITTING 3/2-WAY VALVE
76
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
76
BANJO UNION HEATING CONNECTION,K 169122
76
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
78
HOLLOW SCREW LINE CONNECTION
78
HOLLOW SCREW LINE CONNECTION
78
HOLLOW SCREW HEATING CONNECTION
78
HOLLOW SCREW LINE CONNECTION
79
SEAL RING LINE CONNECTION
80
SLEEVE LINE CONNECTION
80
SLEEVE LINE CONNECTION
82
GLAND LINE CONNECTION
82
GLAND LINE CONNECTION
84
UNION NUT LINE CONNECTION
84
UNION NUT LINE CONNECTION
85
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
85
PLASTIC PIPE RISING PIPE 4X6 MM
86
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
87
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
87
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
90
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
90
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
92
FITTING DIAPHRAGM CYLINDER,CONNECTION:
94
FITTING LEFT AND RIGHT BRAKE HOSES
96
FITTING DIAPHRAGM CYLINDER,CONNECTION:
98
UNION NUT LINE CONNECTION, Replaced By: N000000006239
98
UNION NUT LINE CONNECTION
100
SEAL CONE LINE CONNECTION
100
GLAND , Replaced By: A0019901967
103
NUT BRACKET TO SIDE MEMBER
106
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
106
CLAMP HOSE TO FITTING AND TO OIL TANK
109
SEAL RING BRAKE HOSE
109
SEAL RING BRAKE HOSE
109
SEAL RING BRAKE HOSE
112
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
112
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
112
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
115
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
115
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
117
CLAMP BRAKE HOSE,5 314374
117
CLAMP BRAKE HOSE
117
CLAMP LINE MOUNTING,5 319260
118
CLAMP BRAKE HOSE
118
CLAMP BRAKE HOSE
148
BRACKET SIDE MEMBER
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
ADAPTER FITTING , Replaced By: A0069970072
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0004296934
999
VALVE PART , Replaced By: A0029971236
999
TEST CONNECTION
999
ABS ELECTRONICS , Replaced By: A0004461114
999
CROSS FITTING AIR RESERVOIRS I AND II,4 821954 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
CONTROL UNIT , Replaced By: A0025454932
999
T-FITTING AIR RESERVOIR,CONNECTION: "31"
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 042987, Replaced By: A0035452832
999
VALVE
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 186367 IN CASE OF "C" ELECTRONICS WITH ASR, EXCHANGE 006 545 27 32 FOR 013 545 05 32, Replaced By: A0045458432
999
FITTING RELAY VALVE,CONNECTION "20",LEFT
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
LINE FROM 3/2-WAY VALVE TO DISTRIBUTOR
999
BRACKET RELAY VALVE, NOT USED
999
BRACKET SENSOR CABLE
999
PROTECTIVE PLATE , Replaced By: A6244210120
999
PROTECTIVE PLATE FRONT AXLE TWO-WAY VALVE
999
BRACKET LEFT SIDE MEMBER
999
BRACKET RIGHT SIDE MEMBER
999
BRACKET LOAD/NO-LOAD VALVE
999
FITTING , Replaced By: A0009905070
