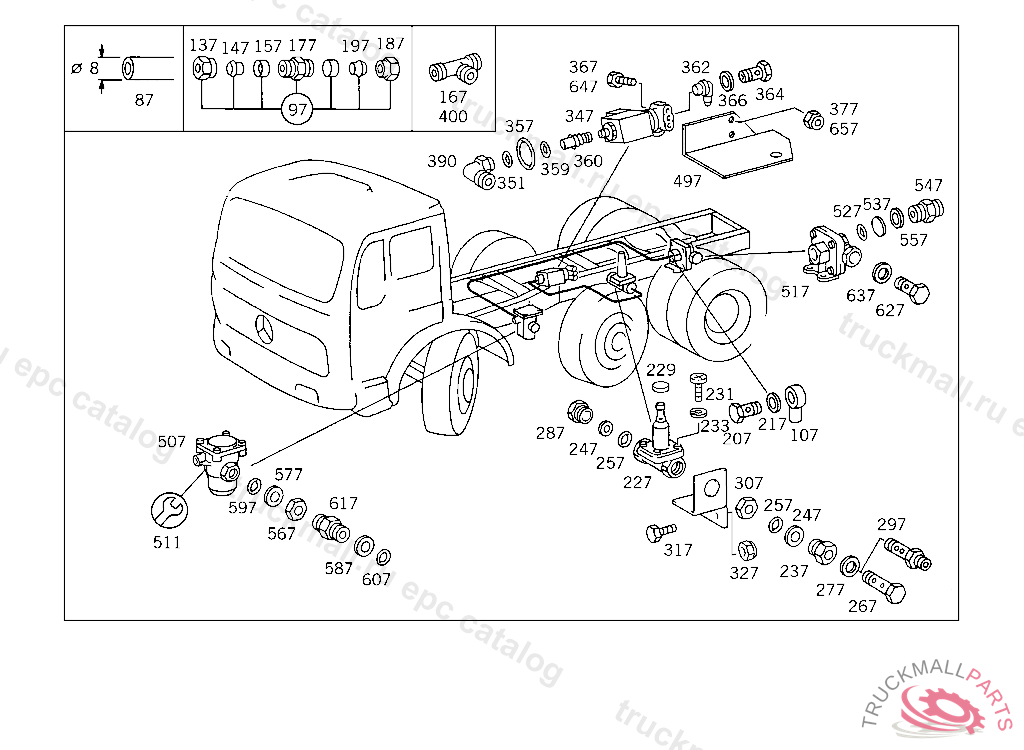

Поз.
Артикул
Описание
87
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
87
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
87
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
87
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
87
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
87
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
87
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
87
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
97
FITTING (PARTS KIT),LINE RUPTURE
97
FITTING , Replaced By: A0029905971
107
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
107
BANJO UNION HEATING CONNECTION,K 169122
107
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
137
UNION NUT LINE CONNECTION
147
GLAND LINE CONNECTION
157
SLEEVE LINE CONNECTION
167
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
177
FITTING FROM PUMP TO CYLINDER
177
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
177
FITTING , Replaced By: A0019909871
177
FITTING 3/2-WAY VALVE
187
UNION NUT
197
SEAL CONE
197
GLAND , Replaced By: A0019901667
207
HOLLOW SCREW FUEL LINE TO FEED PUMP
207
HOLLOW SCREW , Replaced By: N915036010108
207
HOLLOW SCREW LINE CONNECTION
207
HOLLOW SCREW LINE CONNECTION
207
HOLLOW SCREW HEATING CONNECTION
217
SEAL RING FUEL LINE TO FEED PUMP
217
SEAL RING LINE CONNECTION
217
SEAL RING LINE CONNECTION
227
VALVE OVERFLOW VALVE
227
VALVE (OVERFLOW VALVE),REAR CARRIAGE SECONDARY CONSUMING UNITS "WABCO"
227
VALVE (OVERFLOW VALVE)
227
VALVE (OVERFLOW VALVE),5 321955
227
VALVE OVERFLOW VALVE
227
VALVE (OVERFLOW VALVE),REAR CARRIAGE SECONDARY CONSUMING UNITS "WABCO"
227
VALVE (OVERFLOW VALVE) "WABCO"
227
VALVE (OVERFLOW VALVE)
229
DIAPHRAGM
229
DIAPHRAGM , Replaced By: A0004290745
229
DIAPHRAGM
229
DIAPHRAGM
229
DIAPHRAGM , Replaced By: A0004290745
229
DIAPHRAGM
231
SCREW CLAMP MOUNTING M 6X16
231
SCREW CLAMP MOUNTING M 6X16
231
SCREW , Replaced By: N000000001146
233
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
233
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
237
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
247
THRUST RING CHECK VALVE TO AIR RESERVOIR
247
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
257
O-RING CHECK VALVE TO AIR RESERVOIR
267
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
277
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
287
FITTING PRESSURE RELIEF VALVE TO AIR RESERVOIR,CONNECTION: "24"
297
HOLLOW SCREW FITTING OVERFLOW VALVE,CONNECTION: "10"
307
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
317
SCREW REAR EXHAUST PIPE TO MUFFLER
327
NUT STRAP TO BRACKET
327
NUT , Replaced By: N910113010000
347
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
351
SEAL RINGWABCO
357
SEAL RINGWABCO
357
SEAL RING , Replaced By: A0019975945
359
SEAL RINGWABCO
360
VALVE PART
362
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
362
BREATHER , Replaced By: A3933280065
364
HOLLOW SCREW HEATING CONNECTION
366
SEAL RING LINE CONNECTION
367
SCREW 3/2-WAY VALVE TO BRACKET, UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
367
SCREW STRAP TO BRACKET
377
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
377
NUT , Replaced By: N913004008001
390
FITTING FROM PUMP TO CYLINDER
390
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
390
FITTING , Replaced By: A0019909871
400
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
497
BRACKET RELAY VALVE
507
VALVE (PRESSURE RELIEF VALVE) 4.0 BAR
507
VALVE (PRESSURE LIMIT VALVE)
507
VALVE , Replaced By: A0034298844
511
VALVE REPAIR KIT
511
REPAIR KIT , Replaced By: A0024292844
511
REPAIR KIT , Replaced By: A0004205455
517
VALVE (QUICK-RELEASE VALVE)
527
SEAL RINGWABCO
527
SEAL RING , Replaced By: A0159970448
537
DIAPHRAGMWABCO
547
FITTING 3/2-WAY VALVE,CONNECTION: "20"
557
SEAL RING LINE CONNECTION
567
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
577
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
587
THRUST RING CHECK VALVE TO AIR RESERVOIR
587
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
597
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
607
O-RING CHECK VALVE TO AIR RESERVOIR
617
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
627
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
637
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
647
SCREW VALVE TO BRACKET M 8X55
647
SCREW , Replaced By: N304017008043
657
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
657
NUT , Replaced By: N913004008001
999
VALVE PRESSURE RELIEF FOR BELLOWS RESIDUAL PRESSURE
999
REPAIR KIT 3/2-WAY SOLENOID VALVE
999
VALVE ENGINE SHUT-OFF
999
VALVE STARTING ASSISTANCE
999
VALVE PRESSURE RELIEF
999
BRACKET CONTROL VALVE, NOT FOR USE WITH MERCEDES-BENZ PLATFORM5 147259
999
PIPE SOCKET LINE CONNECTION
999
BRACKET OVERFLOW VALVE,CONNECTION: "10"
999
BRACKET OVERFLOW VALVE,CONNECTION: "20"
