Mercedes N000933010145 - SCHRAUBE DIN 933-M10

2636/L,3336/K,3536,4436,4836 624.038

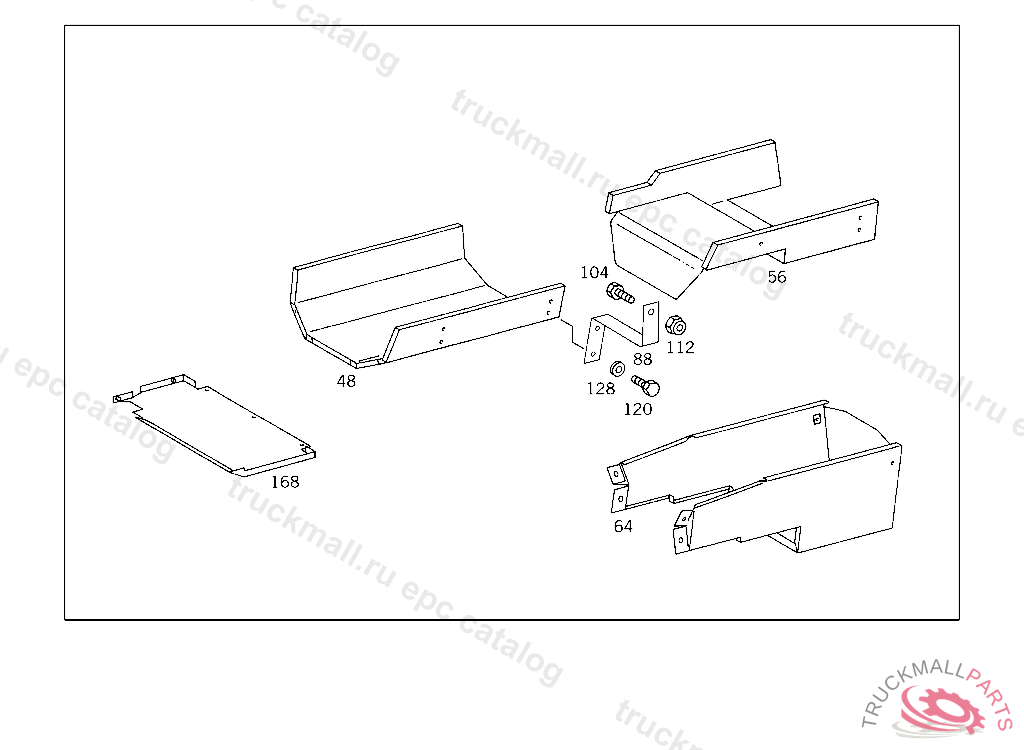

25 CLUTCH - 001 P.T.O. COUPLING IL.1

Поз.
Артикул
Описание
48
A6995202022
COVERING ANTINOISE CAPSULE
56
A6995208422
COVERING ANTINOISE CAPSULE
64
A6215202222
COVERING ANTINOISE CAPSULE
88
A6995240540
BRACKET COVER PLATE TO SUPPORT
104
N304017008027
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
104
N000933008152
SCREW , Replaced By: N304017008027
104
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
112
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
112
N913004008004
NUT , Replaced By: N913004008001
112
N913004010008
NUT , Replaced By: N910113010000
112
N910113010000
NUT STRAP TO BRACKET
120
N000933008145
SCREW CLAMP TO BRACKET AND TO PIPE
128
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
128
N000125008418
WASHER , Replaced By: N000125008443
168
A6215201722
COVERING ENGINE,BOTTOM
168
A6995205724
ANTINOISE CAPSULE BOTTOM COVERING
999
A0805203122
COVERING RADIATOR
999
A0805203722
COVERING BOTTOM COVERING
999
A2019900936
SCREW GUIDE TUBE BRACKET TO RADIATOR
999
A6205240031
COVER PLATE ENGINE
