Главная
›
Mercedes
›
TRUCK
›
2636/L,3336/K,3536,4436,4836
›
624.038
›
55 HYDRAULIC SYSTEM
›

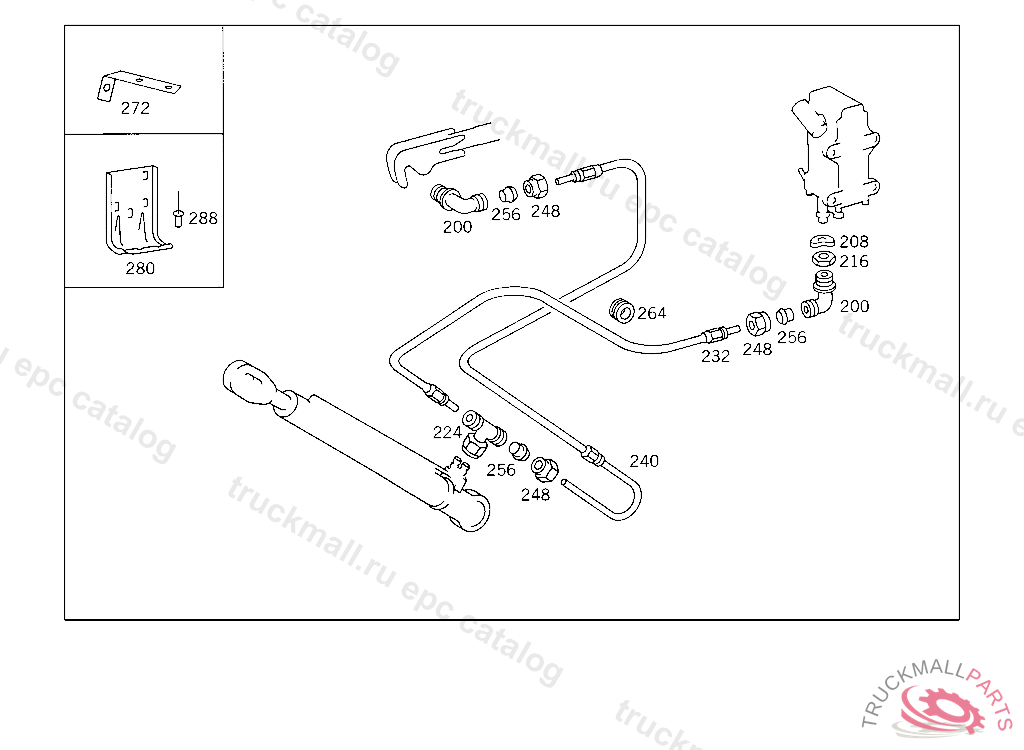

001 CAB HYDR. TILTING SYSTEM IL.2
Mercedes N000137012203 - ШАЙБА ПОД 3*Ю ОПОРУ ДВ-ЛЯ / FEDERSCHEIBE
2636/L,3336/K,3536,4436,4836 624.038
55 HYDRAULIC SYSTEM - 001 CAB HYDR. TILTING SYSTEM IL.2
Поз.
Артикул
Описание
200
A0019904071
ELBOW FITTING CAB FLOOR
200
N003911006100
FITTING OIL LINE CONNECTION
208
N000137012203
SPRING WASHER CAB FLOOR
216
N000439012220
NUT FITTING TO CAB FLOOR
224
N003953006101
T-FITTING. FITTING AT INJECTION PUMP
232
A6205530182
HOSE , Replaced By: A6555530582
232
A6555530582
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
240
A6205530382
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
248
N915017006100
UNION NUT
256
A0019901667
SEAL CONE
256
N003861006007
GLAND , Replaced By: A0019901667
264
A3879970481
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
272
A6205530440
BRACKET AT CAB SIDE MEMBER
280
A3816820186
BRACKET HIGH PRESSURE HOSE TO CAB
288
N910002004132
RIVET , NOT USED
