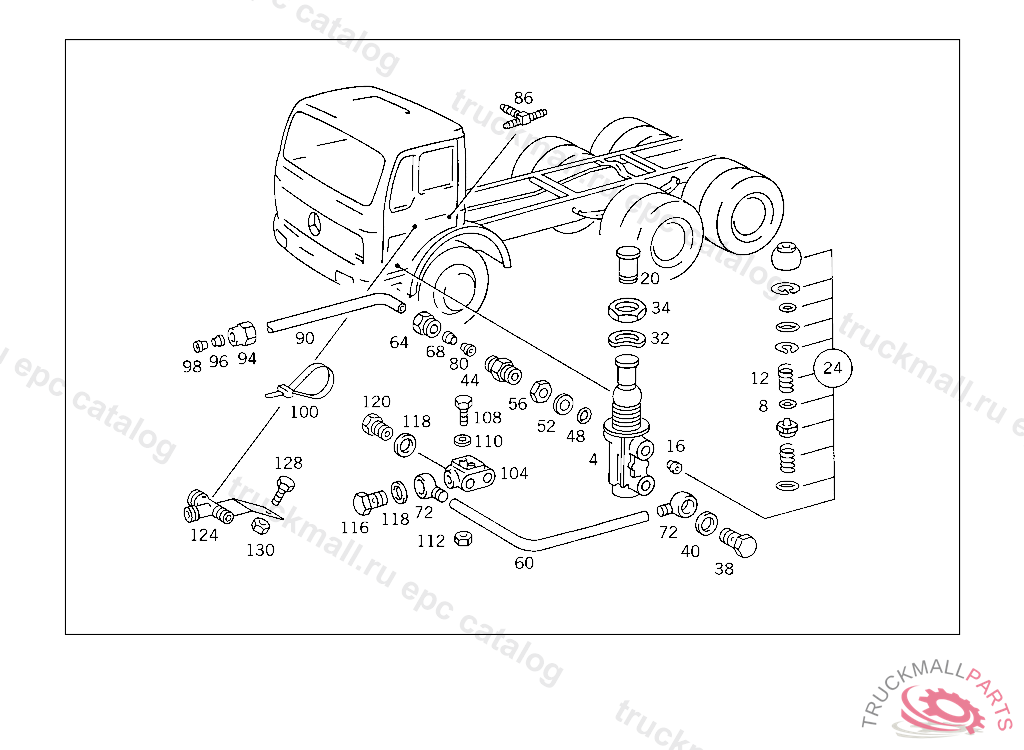

Поз.
Артикул
Описание
4
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
4
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
8
SEAL RINGTO 000 434 21 01
12
SPRINGTO 000 434 21 01
16
STRAINERTO 000 434 21 01
20
HANDLETO 000 434 23 01
24
REPAIR KIT 3/2-WAY VALVE WABCO
24
REPAIR KIT 3/2-WAY VALVE BOSCH
32
SPRING WASHER AT CAB FLOOR
34
NUT SUCTION LINE TO OIL PUMP
38
HOLLOW SCREW HEATING CONNECTION
40
SEAL RING LINE CONNECTION
44
FITTING LINE CONNECTION
44
FITTING LINE CONNECTION, Replaced By: N000000006446
56
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
60
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
64
UNION NUT LINE CONNECTION
68
GLAND LINE CONNECTION
72
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
72
BANJO UNION , Replaced By: N915052006013
80
SLEEVE , Replaced By: N915062006000
80
SLEEVE LINE CONNECTION
86
T-FITTING EXHAUST BRAKE LINE CONNECTION
90
PLASTIC PIPE RISING PIPE 4X6 MM
90
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
94
UNION NUT
96
SEAL CONE
96
GLAND , Replaced By: A0019901667
98
BUSHING , Replaced By: N915062004000
98
SLEEVE LEAK LINE
100
LOOM TIE LINE MOUNTING 280 MM
100
LOOM TIE LINE MOUNTING
104
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
108
SCREW , Replaced By: N304017006027
108
SCREW APPARATUS PLATE M 6X45
110
WASHER , Replaced By: N009021006208
110
WASHER COMPRESSED AIR LINE TO BRACKET
112
NUT PUMP TO BRACKET
112
NUT , Replaced By: N913004006001
116
HOLLOW SCREW LINE CONNECTION
118
SEAL RING LINE CONNECTION
120
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
120
SCREW PLUG , Replaced By: N000908012009
124
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
128
SCREW CLAMP MOUNTING M 6X16
128
SCREW , Replaced By: N000000001146
130
NUT , Replaced By: N913004006001
130
NUT PUMP TO BRACKET
999
CUP 3/2-WAY VALVE WABCO
999
FITTING , Replaced By: A0019972572
999
LOOM TIE BRAKE LINE MOUNTING
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
