Mercedes
›
TRUCK
›
2628,3328,3335,3336,35283535,4445,4645
›
624.233
›
30 CONTROL
›
001 KICK-DOWN OPERATING MECHANISM
Mercedes A0025450628 - КЛЕММА

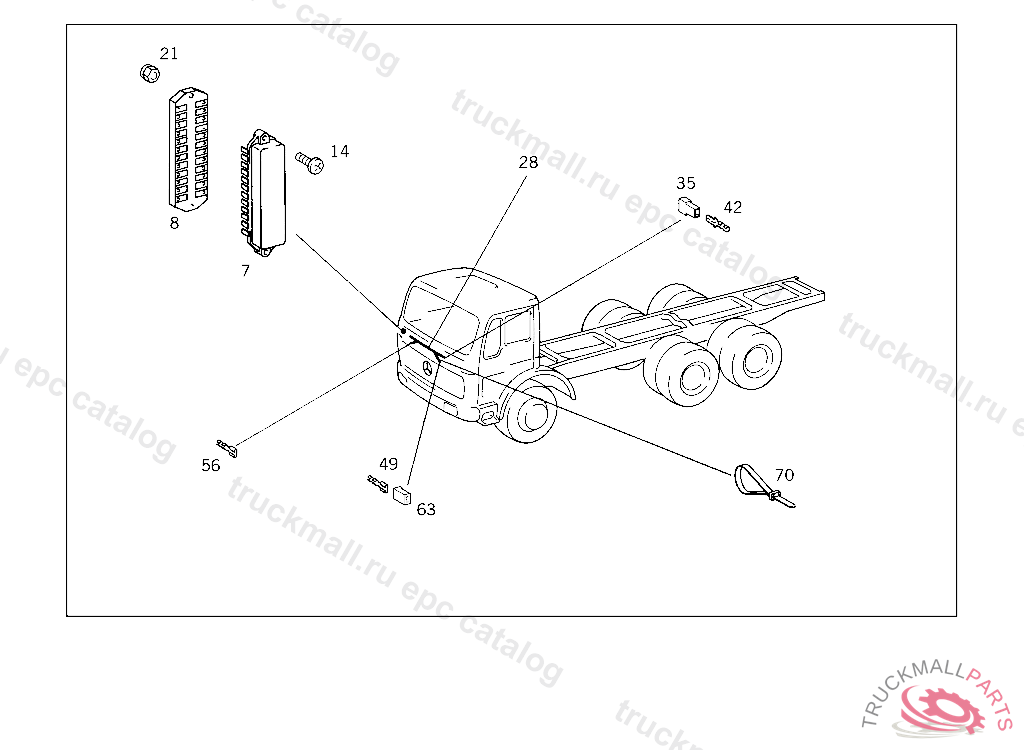

2628,3328,3335,3336,35283535,4445,4645 624.233
30 CONTROL - 001 KICK-DOWN OPERATING MECHANISM
Поз.
Артикул
Описание
7
A0005459701
FUSE BOX APPARATUS PLATE,5 288268
7
A0015454601
FUSE BOX APPARATUS PLATE,5 288269
8
A0005453560
JUNCTION BOX 12-POLE, TERMINALS 1-4,7-12 SHUNTED
14
N000000001149
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
14
A0029903712
SCREW , Replaced By: N000000001149
14
N007985006154
SCREW , Replaced By: A0029903712
14
N007985006193
SCREW , Replaced By: N000000001146
14
N000000001146
SCREW CLAMP MOUNTING M 6X16
21
N913004006001
NUT PUMP TO BRACKET
21
N913004006002
NUT , Replaced By: N913004006001
28
A3875409837
ELECTRIC CABLE FUSE BOX
35
A0025451328
PIN BUSHING HOUSING UNIPOLAR
42
A0025450628
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
49
A0005453726
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
56
A0005454626
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
63
A0005451745
BOOT PIN BUSHING
70
A0019978390
LOOM TIE LINE MOUNTING 280 MM
999
A0005454526
PIN BUSHING , Replaced By: A0005453726
999
A0015450201
FUSE BOX
999
A3875450340
BRACKET FUSE BOX
