Главная
›
Mercedes
›
BUS
›
O 530 N3 LANG EURO 3
›
628.145
›
83 HEATING AND VENTILATION
›
420 HEATING WATER LINE IL. 8

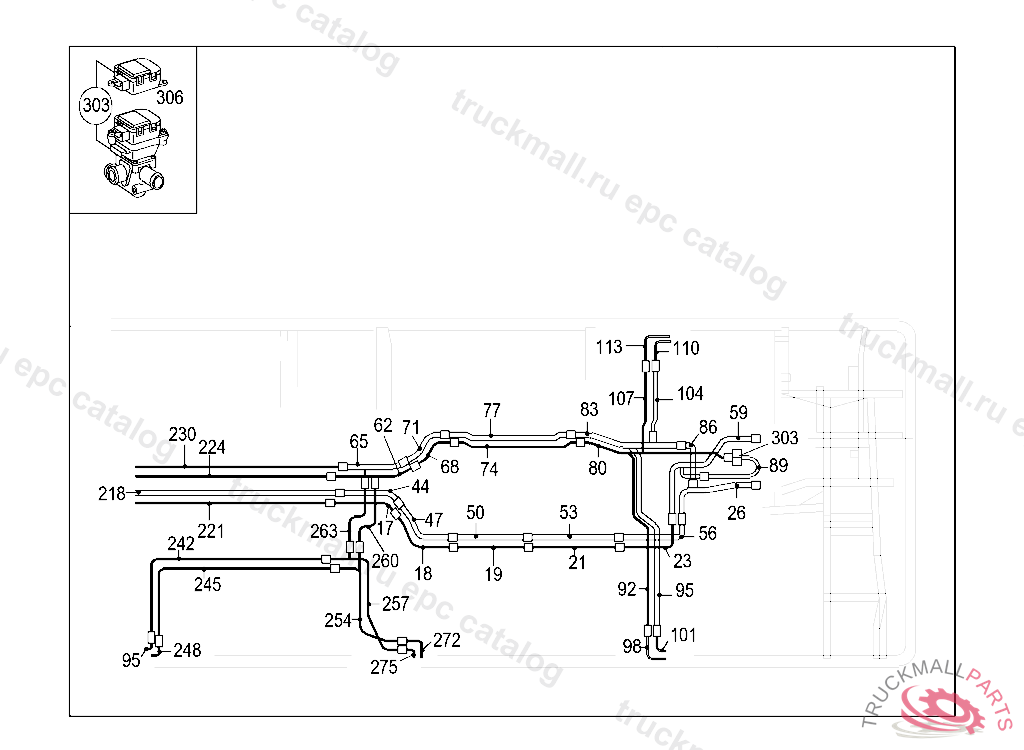

Mercedes A6288320722 - HEIZROHR
O 530 N3 LANG EURO 3 628.145
83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 8
Поз.
Артикул
Описание
17
A6288328221
PIPE LINE
18
A6288328121
PIPE LINE
19
A6288320022
PIPE LINE FEED 1310 MM
21
A6288329921
PIPE LINE FEED & RETURN
23
A6288329821
PIPE LINE
26
A6288305577
PIPE LINE RETURN
44
A6288328321
PIPE LINE
47
A6288328421
PIPE LINE
50
A6288320122
PIPE LINE RETURN 1450 MM
53
A6288329921
PIPE LINE FEED & RETURN
56
A6288320222
PIPE LINE
59
A6288303177
PIPE LINE FEED
62
A6288302677
PIPE LINE580 MM
65
A6288300515
PIPE LINE
68
A6288328721
PIPE LINE
71
A6288328921
PIPE LINE
74
A6288320422
PIPE LINE
77
A6288320522
PIPE LINE
80
A6288302977
PIPE LINE
83
A6288303077
PIPE LINE1160 MM
86
A6288321022
PIPE LINE
89
A6288303277
PIPE LINE
92
A6288320722
PIPE LINE1660 MM
95
A6288320822
PIPE LINE1640 MM
98
A6288329321
PIPE LINE
101
A6288329421
PIPE LINE
218
A6288307516
PIPE LINE5480 MM
221
A6288307416
PIPE LINE5500 MM
224
A6288307616
PIPE LINE4075 MM
230
A6288307716
PIPE LINE4420 MM, TO BE ADAPTED DURING ASSEMBLY
242
A6288326217
PIPE LINE
245
A6288326117
PIPE LINE
248
A6288326315
PIPE LINE
248
A6288326415
PIPE LINE
254
A6288301417
PIPE LINE FEED 1255 MM
257
A6288301517
PIPE LINE REVERSE SPEED 1300 MM
260
A6288329218
HEATER PIPEL475MM
263
A6288329318
HEATER PIPEL530MM
272
A6288325617
PIPE LINE
275
A6288325717
PIPE LINE
303
A0048301684
VALVE THREE-WAY VALVE
303
A0048301884
VALVE 2/2 -WAY VALVE
303
A0008322172
VALVE , Replaced By: A0038305784
303
A0008322272
VALVE , Replaced By: A0038305684
303
A0038305684
VALVE 2/2 -WAY VALVE, Replaced By: A0048301884
303
A0038305784
VALVE THREE-WAY VALVE, Replaced By: A0048301684
306
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
306
A0068207842
SERVO-D.C. W.GEARBOX
