Mercedes
›
BUS
›
O 530 N3 LANG EURO 3
›
628.145
›
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›
050 GROMMETS,BOOTS,MOUNTING PARTS,BULBS
Mercedes N916016048200 -

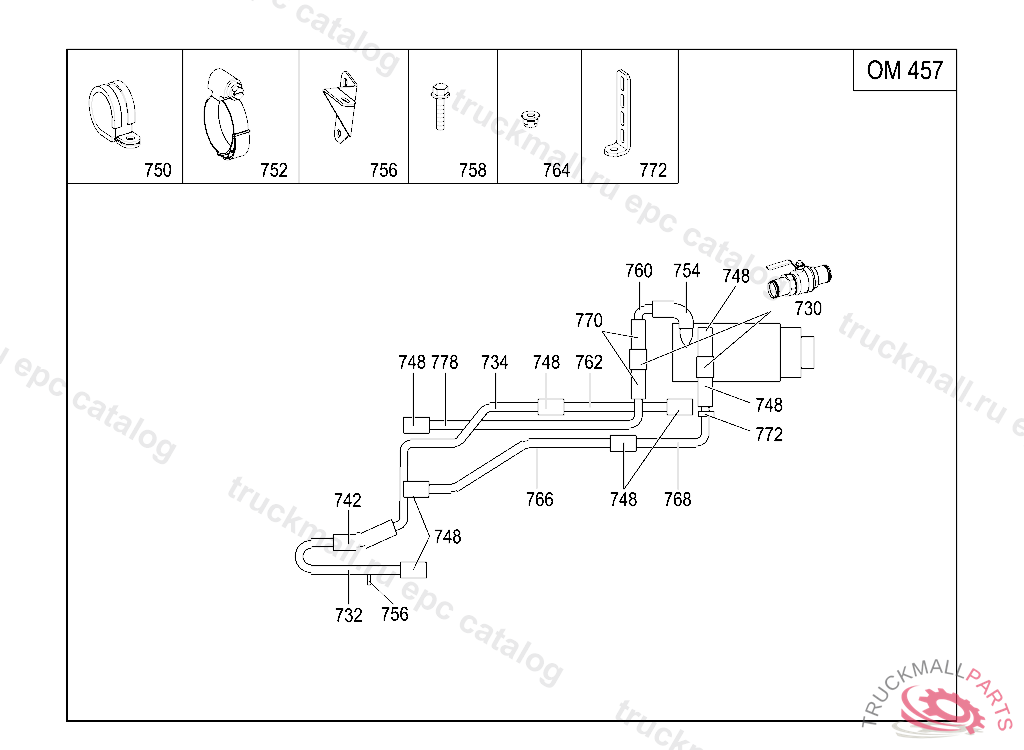

O 530 N3 LANG EURO 3 628.145
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 050 GROMMETS,BOOTS,MOUNTING PARTS,BULBS
Поз.
Артикул
Описание
730
A0008300057
SLIDE
732
A6288324822
PIPE LINE
734
A6288327422
PIPE LINE
742
A3058321223
HOSE COOLING WATER LINE,021573
742
A3578326223
HOSE BLUE 38 X 50 MM143°
748
N900271038019
HOSE LINE CONNECTION 38X50X100 MM
748
A3578325223
HOSEA38, B50, L100
750
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
752
N000000000350
CLAMP LINE MOUNTING
752
N916016038201
CLAMP , Replaced By: A3829950701
752
N000000007515
CLAMP38/20
752
N916016048200
CLAMP OIL LINE TO BRACKET
754
A3078321523
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
754
A3578325523
HOSE 90 DEGREES A85, B85, D38, R53
754
A0008324523
HOSE SILICONE 38 X 50 MM90°
754
A0008324423
HOSE 90-DEGREE ARC D38MM
756
A6288320214
BRACKET
758
N910105012002
SCREW BRACKET TO SUPPORT M 12X25,K 574789
758
N910105008039
SCREW , Replaced By: N910143008002
758
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
758
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
760
A6288305977
PIPE LINE
762
A6288324022
PIPE LINE
764
N913023008003
NUT HORN TO BRACKET M8
764
N913023006002
NUT BRACKET TO FIRE WALL
766
A6288323922
PIPE LINE
768
A6288323822
PIPE LINE
770
N900271038004
HOSE FROM RESERVOIR TO BUBBLE SEPARATOR
770
A3578325323
HOSE
772
A6285048540
BRACKET , Replaced By: A6285046641
778
A6288323722
PIPE LINE
