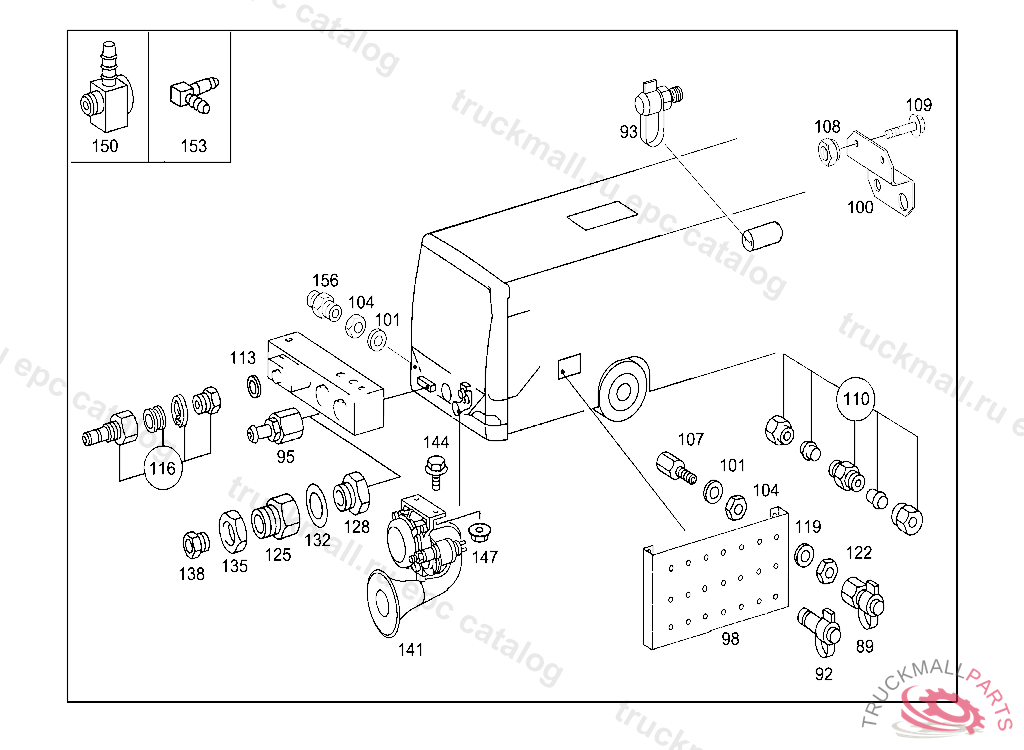

Поз.
Артикул
Описание
89
TEST CONNECTION
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
92
TEST CONNECTION SECONDARY CONSUMING UNITS
93
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
95
TEST CONNECTION
98
BRACKET TEST CONNECTIONS
100
BRACKET REFILLING CONNECTION ENGINE COMPARTMENT
101
WASHER SUPPORT TO FRAME,D 127794
101
WASHER , Replaced By: A3449900140
104
NUT ,D 091466
104
NUT ELECTRONIC ACCELERATOR PEDAL
107
ADAPTER FITTING TEST CONNECTION
108
NUT BRACKET TO FIRE WALL
109
SCREW , Replaced By: N914146006102
109
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
110
TS DOUBLE FITTING SOLENOID VALVE
113
SEAL RING 3/2-WAY VALVE
116
COUPLING CONNECTION FROM FRONT CARRIAGE TO REAR CARRIAGE, UP TO IDENT NO. WEB 105308 EXCEPT FOR 104831-104930,104931-105130,105261,105268-105295,105307. ALSO INSTALLED IN 105317,105318,105324,105382,105388. UP TO IDENT NO.VF9 300288 EXCEPT FOR 300046,300282-300284.
119
WASHER PULLEY TO AIR COMPRESSOR, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
119
WASHER
122
NUT BRACKET TO SIDE MEMBER
125
FITTING AT AIR RESERVOIR
128
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
132
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "1"
135
NUT CHECK VALVE TO AIR RESERVOIR
135
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
138
SCREW. UNION SCREW LINE CONNECTION
141
AIR HORN
144
SCREW SHIFT LEVER TO BRACKET M8X30
147
NUT GUIDE RAIL,REAR BOTTOM
150
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
153
ELBOW FITTING , Replaced By: A0049905371
153
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
156
FITTING PRESSURE LIMIT VALVE
