Mercedes A6288323715 - Труба отопителя

O 530 N3 LANG EURO 3 628.145

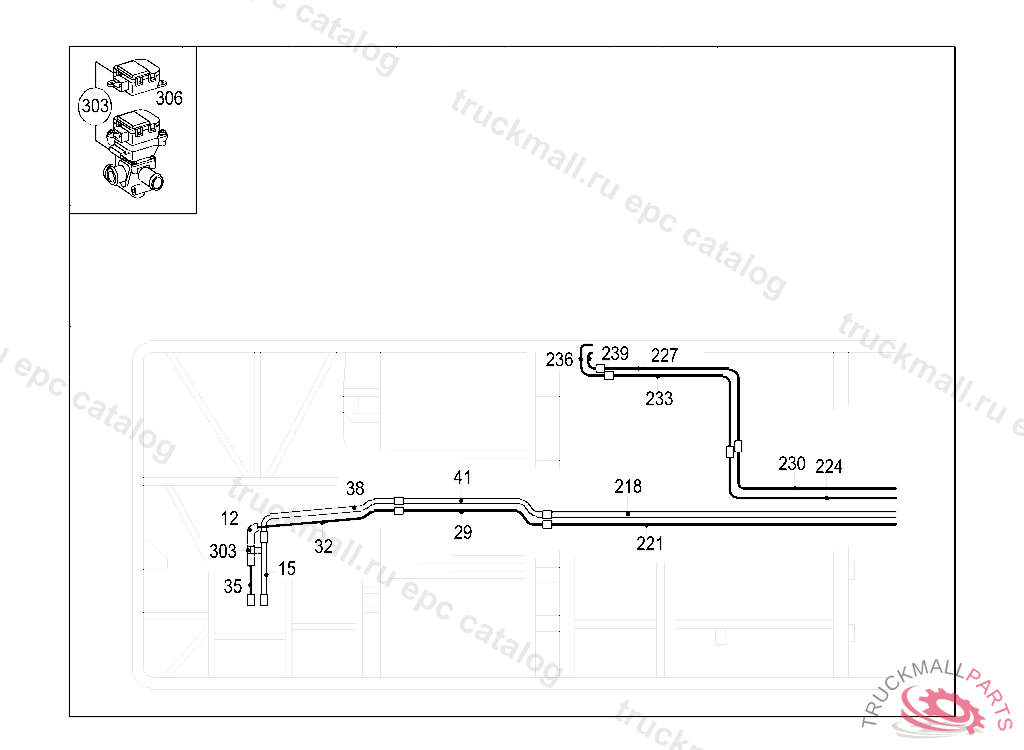

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 9

Поз.
Артикул
Описание
12
A3058320523
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3058321223
12
A3578328223
HOSE CONNECTION TO HEATER UNIT 18 X 27 MM
12
A3578321193
HOSE FEED TO FRONT END HEATER UNIT 22 X 30 MM120°
15
A6288300015
PIPE LINE RETURN 318 MM
15
A3564760026
HOSE PLASTIC PIPE
29
A6288323715
PIPE LINE FEED 1145 MM
32
A6288323815
PIPE LINE FEED 1300 MM
35
A6288323915
PIPE LINE FEED 135 MM
38
A6288324015
PIPE LINE RETURN 1247 MM
41
A6288324115
PIPE LINE RETURN 1195 MM
218
A6288307516
PIPE LINE5480 MM
221
A6288307416
PIPE LINE5500 MM
224
A6288307616
PIPE LINE4075 MM
227
A6288324715
PIPE LINE
230
A6288307716
PIPE LINE4420 MM, TO BE ADAPTED DURING ASSEMBLY
233
A6288327815
PIPE LINE
236
A6288324815
PIPE LINE
239
A6288324915
PIPE LINE
303
A0048301884
VALVE 2/2 -WAY VALVE
303
A0048301684
VALVE THREE-WAY VALVE
303
A0008322172
VALVE , Replaced By: A0038305784
303
A0008322272
VALVE , Replaced By: A0038305684
303
A0038305684
VALVE 2/2 -WAY VALVE, Replaced By: A0048301884
303
A0038305784
VALVE THREE-WAY VALVE, Replaced By: A0048301684
306
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
306
A0068207842
SERVO-D.C. W.GEARBOX
