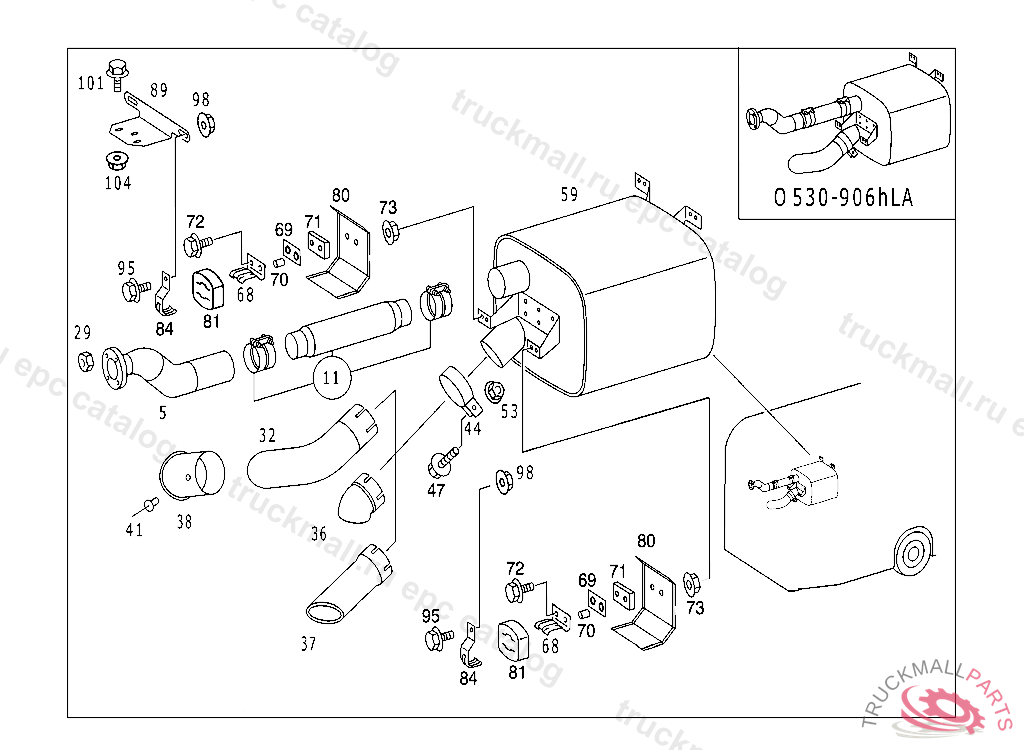

Поз.
Артикул
Описание
5
EXHAUST PIPE EXHAUST GAS TURBOCHARGER CONNECTION
11
WRAPPED TUBING CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST
11
FLEXIBLE METAL TUBE FRONT
29
NUT CONNECTING PIPE TO EXHAUST BRAKE
32
REAR EXHAUST PIPE AT MUFFLER
36
REAR EXHAUST PIPE AT MUFFLER
36
EXHAUST PIPE AT MUFFLER 120 MM, FROM IDENT NO. 097921
36
END PIECE AT MUFFLER TO A 628 490 23 14 / A 628 490 12 01
37
REAR EXHAUST PIPE120,50 MM, FROM IDENT NO. 097921
38
END PIECE , Replaced By: A3574921314
41
BLIND RIVET. RIVET NAME PLATE TO BRACKET
41
RIVET GEARING TO BACKREST FRAME 3 MM
44
CLAMP , Replaced By: N071555124501
44
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
44
CLAMP END PIECE TO EXHAUST PIPE
47
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
47
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
47
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
47
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
53
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
59
EXHAUST MUFFLER
68
CONSOLE EXHAUST MUFFLER
69
PLATE CONSOLE TO EXHAUST MUFFLER
70
SPACER TUBE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
71
INSULATION CONSOLE TO EXHAUST MUFFLER
71
INSULATION CONSOLE TO EXHAUST MUFFLER
72
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
72
SCREW SHIFT LEVER TO BRACKET M8X30
72
SCREW , Replaced By: N910143008002
72
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
73
NUT HORN TO BRACKET M8
80
PROTECTIVE PLATE REAR EXHAUST MUFFLER
81
DAMPING PAD EXHAUST MUFFLER SUSPENSION
84
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
89
CONSOLE ON ENGINE SUPPORT
95
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
98
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
101
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
101
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
101
SCREW SHIFT LEVER TO BRACKET M8X30
101
SCREW , Replaced By: N910143008002
104
NUT HORN TO BRACKET M8
