Mercedes N000125010532 - Диск

O 530 N3 LANG EURO 3 628.148

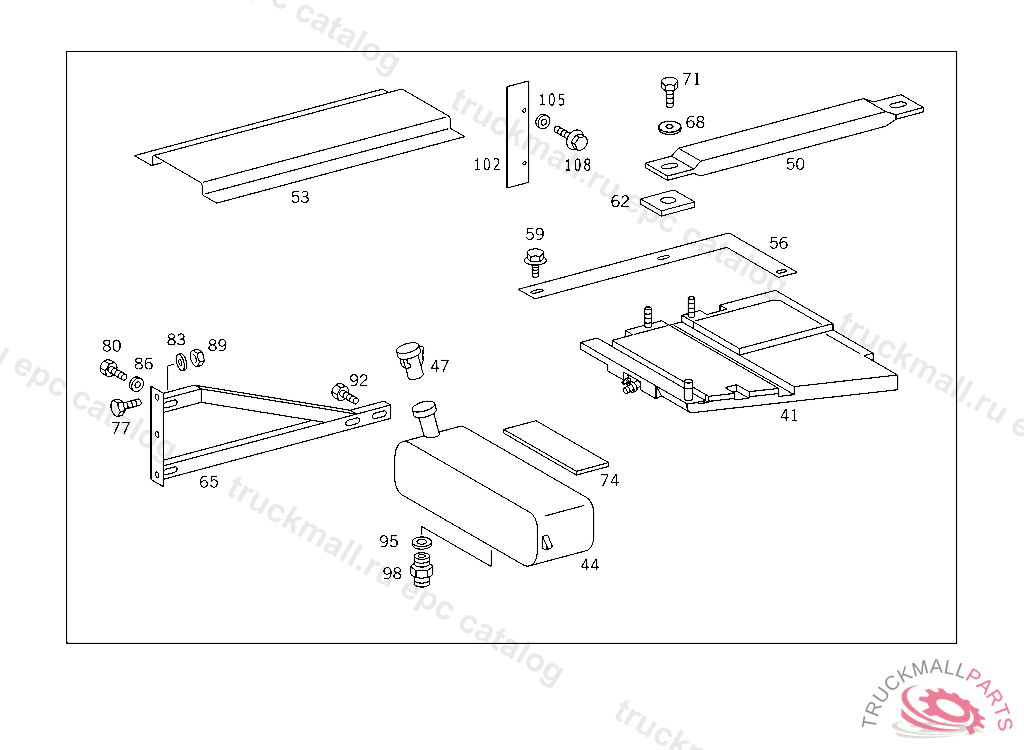

47 FUEL SYSTEM - 240 FUEL-OIL LINES AND TANK IL. 2

Поз.
Артикул
Описание
44
A6284701301
FUEL TANK (FUEL-OIL TANK) 50 L
47
A0004716630
FILLER CAP , TO BE ADAPTED DURING ASSEMBLY
56
A6284750146
PROTECTIVE PLATE
65
A6284700042
SUPPORT FUEL-OIL TANK
68
N009021010102
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
71
N304017010046
SCREW BRACKET TO FRAME
74
A6284750018
BASE FUEL TANK MOUNTING, ORDER BY THE METER
77
N304014008010
SCREW8X110 MM
80
N304017010028
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
83
N009021008205
WASHER , Replaced By: N009021008213
86
N000125010517
WASHER GROUND CABLE
86
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
89
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
N304017008021
SCREW PIPE CLAMP
95
N007603014106
SEAL RINGTO 000 553 03 05,000 553 18 05,
98
N915027000003
FITTING FUEL-OIL TANK
999
N915036010200
HOLLOW SCREW
