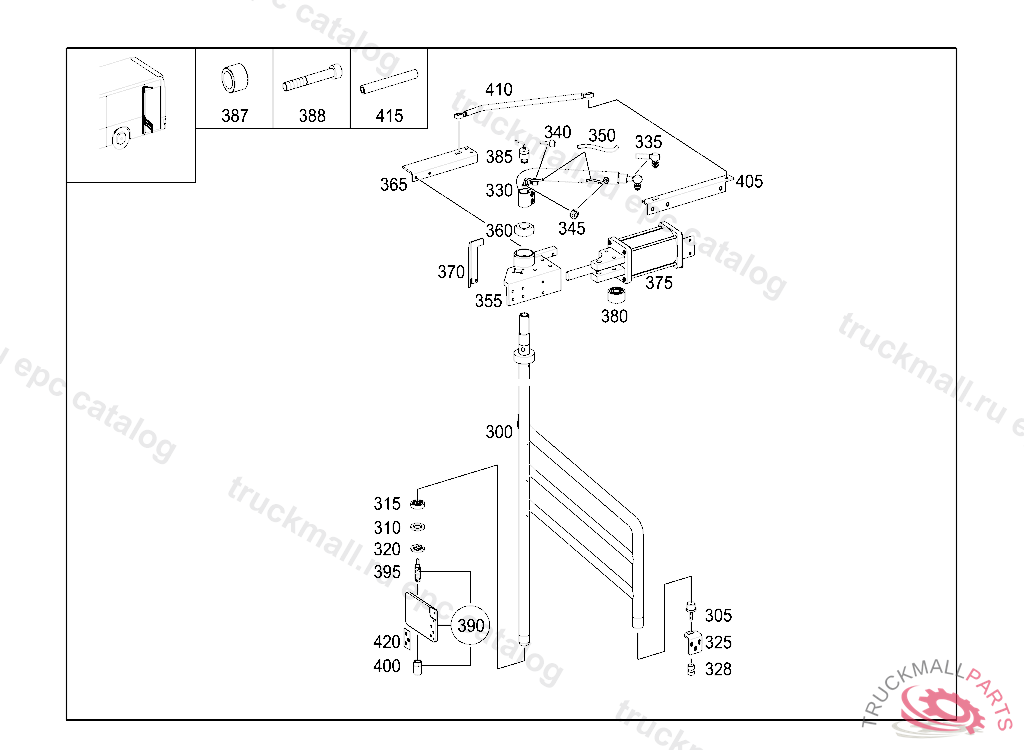

Поз.
Артикул
Описание
300
CONTROL BAR , NO.7327 INO.5856 IIIII
300
SWIVEL BAR , Replaced By: A6287200965
305
BALL JOINT
310
SEAL RING
315
SELF-ALGN.ROLLER BEARING
320
LOCK
325
ANGLE , NO.7365 INO.5856 INO.7327 IIII
328
COVERING , NO.7365 INO.5856 INO.7327 IIII
330
SUPPORTING ARM TOP, NO.7327 INO.5856 IIIII
335
MOUNTING
340
BUFFER
340
STOP , Replaced By: A0009887011
345
PLUG
350
HOSE1M, ORDER BY THE METER
355
MOUNTING REAR SWIVEL BAR,TOP
360
JOINT BEARING FRONT SWIVEL BAR,TOP
365
BRACKET
370
BRACKET
375
DOOR CYLINDER PNEUMATIC
380
MOUNTING
385
POTENTIOMETER SWIVEL BAR,TOP
387
PILOT BUSHING
388
SCREW SHIM TO RUBBER MOUNTING M12X90,B 922981
390
MOUNTING , NO.7365 INO.5856 INO.7327 IIII
395
PIN LEFT DOOR
400
COVERING RIGHT DOOR, NO.7327 INO.5856 IIIII
405
ANGLE , .......I.......INO.7E87I.......I II
410
ROD
415
TUBE
420
PLATE2MM
420
PLATE3 MM
