Mercedes A0005510024 - ABDECKUNG AUS KUNSTS

O 530 GN3 UESTRA E 2 628.202

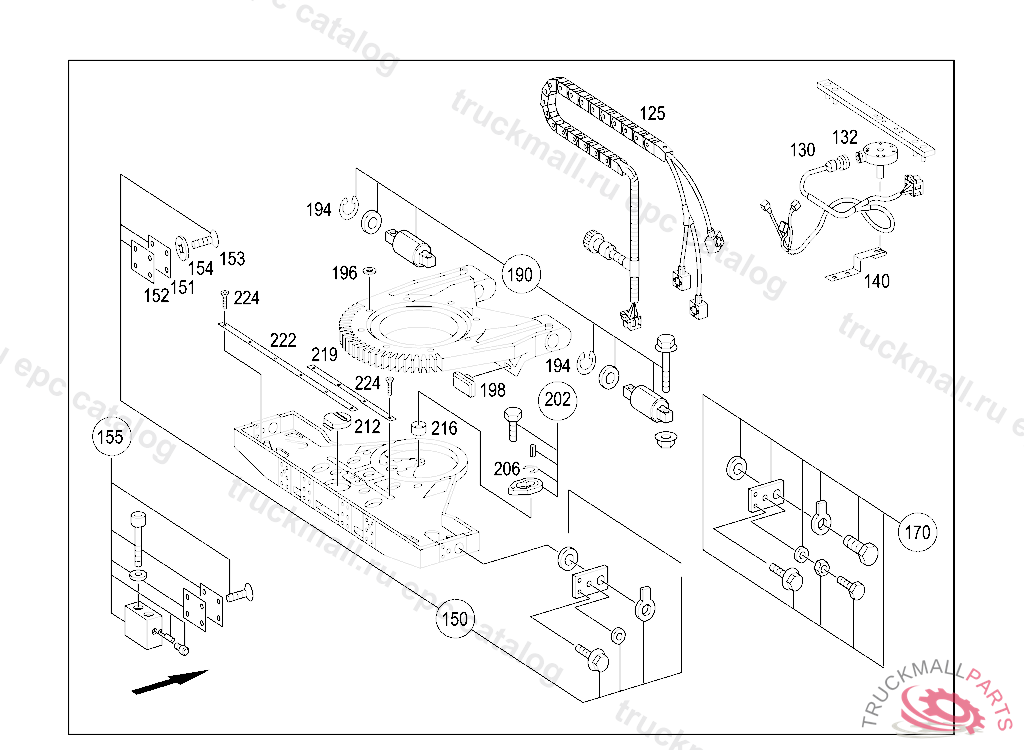

Поз.
Артикул
Описание
125
A0008211208
CABLE HARNESS JACKKNIFING ANGLE CONTROL CABLE
130
A0008700288
CABLE HARNESS JACKKNIFING ANGLE CONTROL CABLE
132
A6285420117
SENDER UNIT LOCK/JACKKNIFING ANGLE
140
A0005500313
LEVER LOCK/JACKKNIFING ANGLE
150
A6288900044
PLATE
151
A0008920011
PLATE
152
A0008920022
SHIM THICKNESS, 0,3 MM
153
N000965006010
SCREWM6X10
154
N006798006300
SERRATED WASHER ACCELERATOR PEDAL TO CAB, ELIMINATED,NO LONGER REQUIRED
155
A0005500038
BEARING BRACKET
170
A0008920111
PLATE
190
A0008902601
MOUNTING , ONLY REPLACEABLE BY PAIRS
194
N000472100000
LOCK RING HOUSING,INSIDE
196
A0009830883
PRECUT FILM50X 11 X 0,25, TO BE ADAPTED DURING ASSEMBLY
198
A0029872340
RUBBER BUFFER
202
A0008900214
BRACKET
206
A0008900093
SHIM
212
A0015461943
BRACKET
216
A0008920020
MOUNTING
219
A0005510124
COVER PLATE
222
A0005510024
COVER PLATE
224
N000000004684
SCREW
999
A6285560001
FLOOR FABRIC
999
A6285500676
999
A6285500276
999
A6285500257
CABLE HARNESS
999
A6285500157
CABLE HARNESS AIR CONDITIONER IN FRONT END
