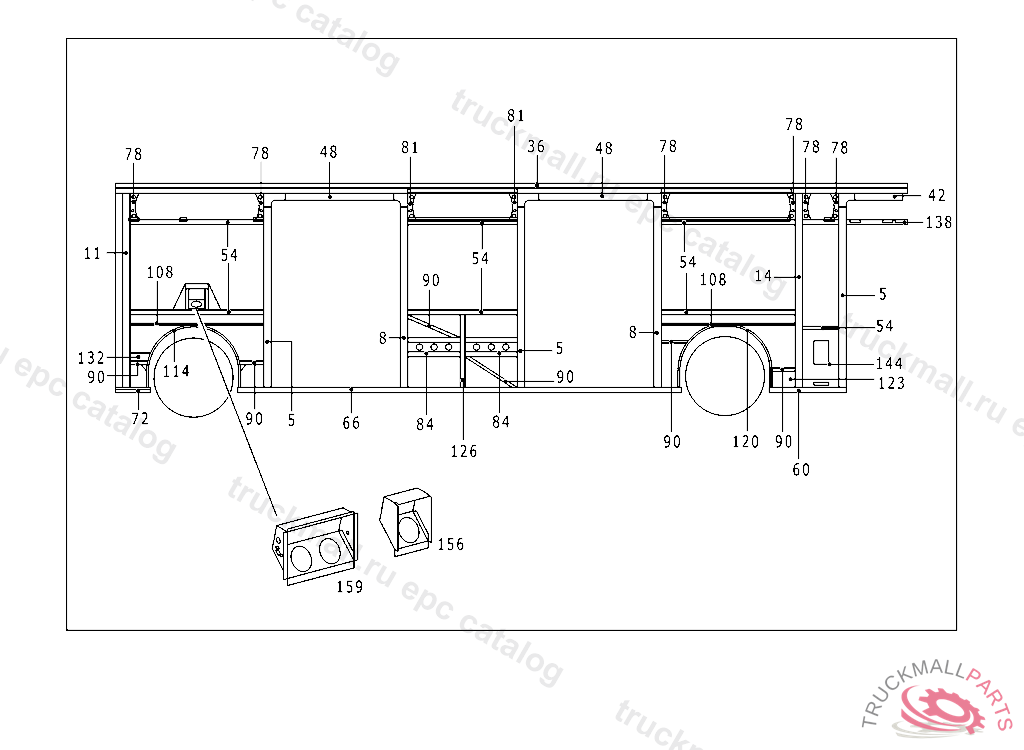

Mercedes A6286301940 - ZB TRAEGER (S

O 530 GN3 UESTRA E 2 628.202

Поз.
Артикул
Описание
5
A6286300110
PILLARNO. 1 + 5
8
A6286300210
PILLARNO. 2 + 3
11
A6286300910
PILLARNO. 6
14
A6286301410
PILLARNO. 4
36
A6286303740
42
A6286300317
FRAME FRONT DOOR
48
A6286300017
FRAME DOOR,TOP
54
A6286326440
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
60
A6286302240
SUPPORT BOTTOM
66
A6286300840
SUPPORT BOTTOM
72
A6286301940
SUPPORT BOTTOM
78
A6286341316
REINFORCEMENT TOP
81
A6286321416
84
A6286327540
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
90
A6286122473
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
108
A6286321840
RECTANGULAR TUBE , A 628 632 18 40 RECTANGULAR TUBE 40 X 20 X 2 X 1590 MM TO BE ADAPTED DURING ASSEMBLY
114
A6286320030
WHEEL BOW
120
A6286320230
WHEEL BOW
123
A6286310410
PILLAR PART , TO BE ADAPTED DURING ASSEMBLY
126
A6286310110
PILLAR PART
132
A6286340316
REINFORCEMENT
138
A6286320514
SUPPORT , TO BE ADAPTED DURING ASSEMBLY A 628 632 05 14 RECTANGULAR TUBE 80 X 50 X 4,0 X 913 MM
144
A6286322219
WEB
156
A6286027608
COVERING
159
A6286000833
COVERING FUEL FILLER COMPARTMENT
