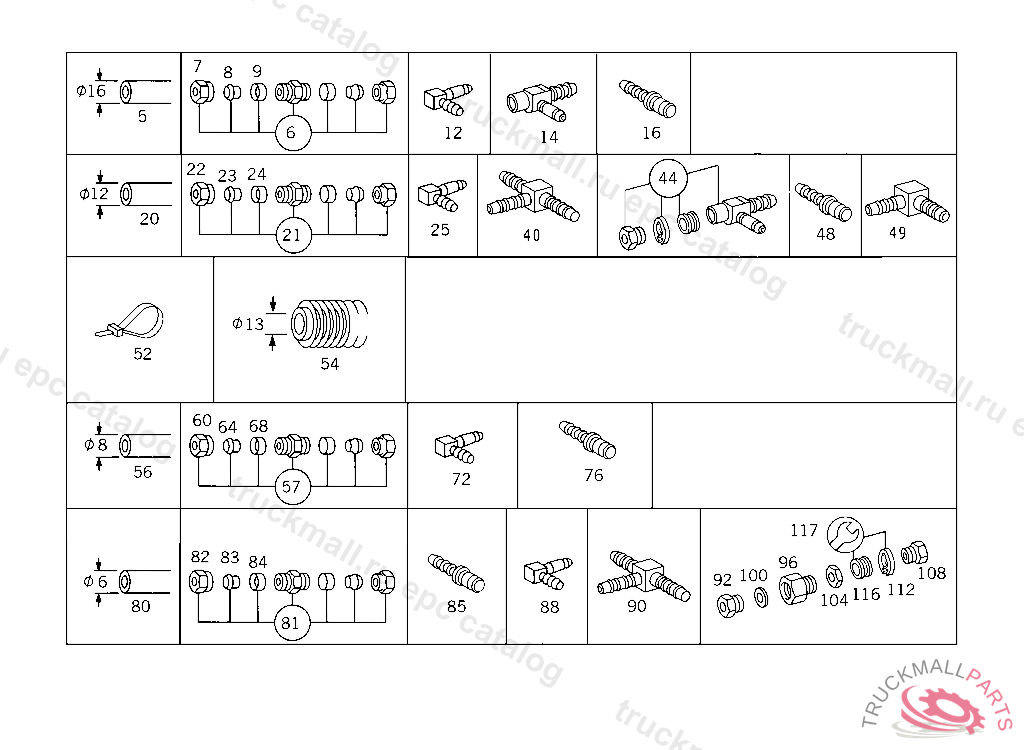

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
6
FITTING (PARTS KIT),LINE RUPTURE
7
UNION NUT
8
GLAND
9
SLEEVE
12
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 12 MM, VOSS 230
14
T-FITTING , UP TO IDENT NO. WEB 105308 EXCEPT FOR 104831-104930,104931-105130,105261,105268-105295,105307. ALSO INSTALLED IN 105317,105318,105324,105382,105388. UP TO IDENT NO.VF9 300288 EXCEPT FOR 300046,300282-300284.
16
CONNECTOR PRESSURE REGULATOR BREATHING
20
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
21
FITTING (PARTS KIT),LINE RUPTURE
22
UNION NUT LINE CONNECTION, Replaced By: N000000006239
22
UNION NUT LINE CONNECTION
23
GLAND , Replaced By: A0019901967
24
SLEEVE LINE CONNECTION
25
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 16
40
T-FITTING HOSE WIDTH, 9 MM,TO M 22
44
T-FITTING , UP TO IDENT NO. WEB 105308 EXCEPT FOR 104831-104930,104931-105130,105261,105268-105295,105307. ALSO INSTALLED IN 105317,105318,105324,105382,105388. UP TO IDENT NO.VF9 300288 EXCEPT FOR 300046,300282-300284.
48
CONNECTOR COMPRESSED AIR PIPING TO M16 / 9MM / VOSS 230
49
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
52
LOOM TIE LINE MOUNTING
54
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
56
PLASTIC PIPE AERATION, ORDER BY THE METER
57
FITTING (PARTS KIT),LINE RUPTURE
60
UNION NUT LINE CONNECTION
64
GLAND LINE CONNECTION
68
SLEEVE LINE CONNECTION
72
ELBOW FITTING , Replaced By: A0049905371
72
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
76
CONNECTOR , Replaced By: A0029905478
80
PLASTIC PIPE RISING PIPE 4X6 MM
81
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
82
UNION NUT
83
SEAL CONE
83
GLAND , Replaced By: A0019901667
84
SLEEVE LEAK LINE
85
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
88
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
88
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
90
DISTRIBUTOR HOSE WIDTH, 6 MM
92
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
96
FITTING AT AIR RESERVOIR
100
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "1"
104
NUT CHECK VALVE TO AIR RESERVOIR
108
SCREW. UNION SCREW LINE CONNECTION
108
SCREW. UNION SCREW , Replaced By: A0009973734
112
LOCK , Replaced By: A0009945448
112
LOCK LINE CONNECTION
116
LOCK RING LINE CONNECTION
116
SEAL RING , Replaced By: A0009940747
117
REPAIR KIT , Replaced By: A0309971748
117
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
